PPM H 00347-14 - WASHER

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A00 AA19-0 (PPM 380 ATT BASIC MACHINE WITHOUR COWLING)
A01 A66-0 (PPM 380 ATT CAB)
A05 B26-0 (PPM 380 ATT COWLING ( CARRIER ))
A17 M40-0 (PPM 380 ATT OUTRIGGERS ASSEMBLY)
A22 B25-0 (PPM 380 ATT CARRIER ASSEMBLY)
D17 B17-0 (PPM 380 ATT SPARE WHEEL OPTION 20.5 X 25)
D17 B18-0 (PPM 380 ATT SPARE WHEEL OPTION 16:00 X 25)
D17 B19-0 (PPM 380 ATT SPARE WHEEL OPTION 16:00 X 20 XVC)
F30 V210-0 (PPM 380 ATT SWING REDUCER ASSEMBLY)
HJ265 A21-0 (PPM 380 ATT DERRICKING CYLINDER ASSEMBLY)
PM02 D24-0 (PPM 380 ATT LATTICE ELEMENT 7,5-12,5 MTR.)
PM06 A43-2 (PPM 380 ATT BOOM COMPLETE)
PM08 A104-0 (PPM 380 ATT P3 BOOM SECTION)
PM08 A113-0 (PPM 380 ATT P2 BOOM SECTION)
PM08 A123-0 (PPM 380 ATT P4 BOOM SECTION)
A01 A65-0 (PPM 380 ATT CAB)
A22 B25A-1 (PPM 380 ATT CARRIER ASSEMBLY)

Also known as:
H 00347-14, H 0034714

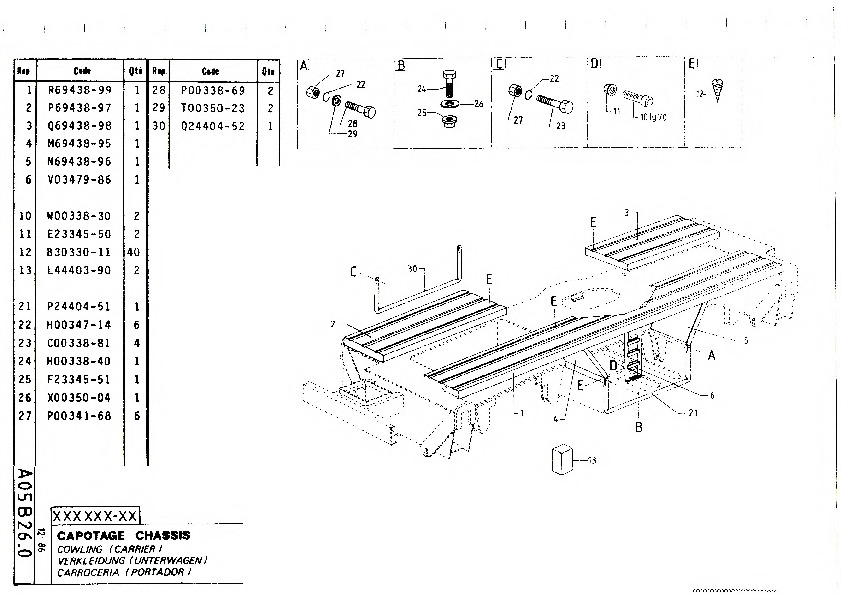

Parts for PPM 480 ATT, Figure A05 B26-0:
Part Number H 00347-14: WASHER

Pos nr	Part number	Description
1	R 69438-99	COVER PLATE
2	P 69438-97
3	Q 69438-98	FLOORING
4	M 69438-95
5	N 69438-96
6	V 03479-86
10	W 00338-30	BOLT
11	E 23345-50	NUT
12	B 30330-11	SCREW
13	L 44403-90
21	P 24404-51
22	H 00347-14	WASHER
23	C 00338-81	SCREW
24	H 00338-81
25	F 23345-51	NUT
26	X 00350-04	WASHER
27	P 00341-68	NUT
28	P 00338-69	BOLT
29	T 00350-23	WASHER
30	Q 24404-52
