PPM C 23345-48 - NUT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A00 AA19-0 (PPM 380 ATT BASIC MACHINE WITHOUR COWLING)
A00 AD19-0 (PPM 380 ATT FRANCE TYPE MACHINE)
A01 A66-0 (PPM 380 ATT CAB)
A05 B31-0 (PPM 380 ATT SOUND PROOF COWLING)
F30 C242-0 (PPM 380 ATT CAB HYDRAULIC CIRCUIT)
J02 A132-0 (PPM 380 ATT FOOT PEDAL ASSEMBLY)
K01 H190-0 (PPM 380 ATT WIRING ASSEMBLY)
K09 A314-0 (PPM 380 ATT PANEL PLATE)
K09 A318-0 (PPM 380 ATT PANEL PLATE)
K17 L82-0 (PPM 380 ATT CONNEXION BOX ( CARRIER ))
A01 A65-0 (PPM 380 ATT CAB)
A05 B27-0 (PPM 380 ATT COWLING ( CARRIER ))
A05 B28-0 (PPM 380 ATT COWLING ( CARRIER ))
A13 A126-1 (PPM 380 ATT SUPERSTRUCTURE ASSEMBLY)
A13 D74-0 (PPM 380 ATT CAB FLOOR)
B00 B82-B (PPM 380 ATT ENGINE-EQUIPMENT)
BO5 G101-0 (PPM 380 ATT HEATING SYSTEM)
C21 E47-0 (PPM 380 ATT STEERING ROD)

Also known as:
C 23345-48, C 2334548

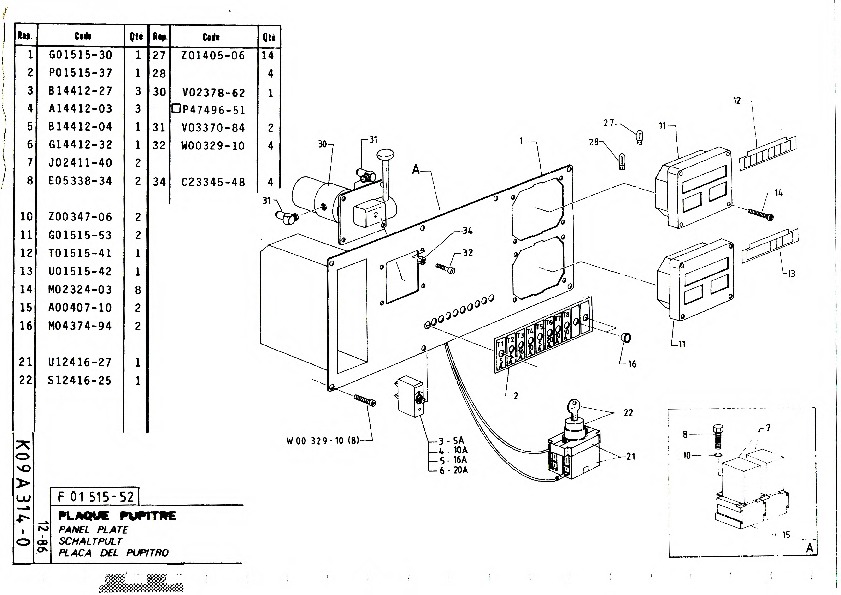

Parts for PPM 480 ATT, Figure K09 A314-0:
Part Number C 23345-48: NUT

Pos nr	Part number	Description
	F 01515-52
1	G 01515-30	PLATE
2	P 01515-37	ADHESIVE
3	B 14412-27	AUTOM.CIRCUITBR
4	A 14412-03	DISJONCTEUR 10
5	B 14412-04	AUTOM.CIRCUITBR
6	G 14412-32	AUTOM.CIRCUITBR
7	J 02411-40	RELAY
8	E 05338-34	BOLT
10	Z 00347-06	WASHER
11	G 01515-53	COMBINE B95 8V
12	T 01515-41	SUPPORT
13	U 01515-42	SUPPORT
14	M 02324-03	SCREW
15	A 00407-10	SUPPORT
16	M 04374-94	PLUG
21	U 12416-27	BODY
22	S 12416-25	HEAD
27	Z 01405-06	BULB
30	V 02378-62	SHUTOFF/COCK
30A	P 47496-51	SEAL KIT
31	V 03370-84	ANGLE PIECE
32	W 00329-10	BOLT
34	C 23345-48	NUT
