Parts for Grove GMK 4080-3, Figure 3176469-ETL:

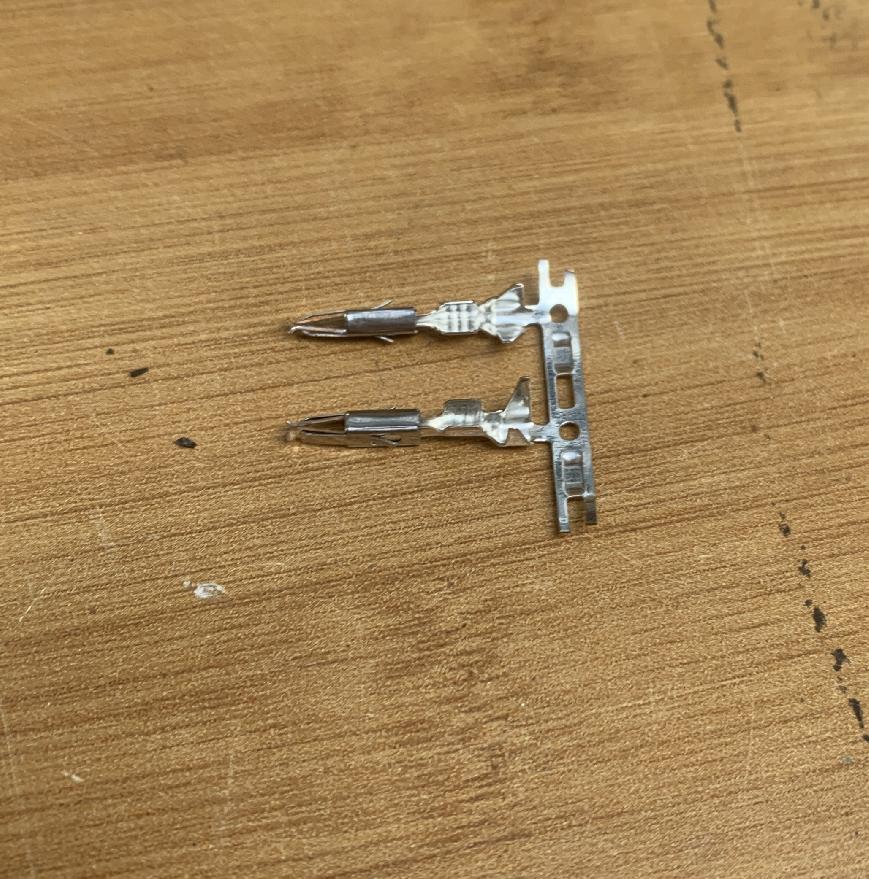

Part Number 3041217: MICRO TIMER CONTACT

Pos nr	Part number	Description	Weight in kg
1	3041213	PROTECTIVE COVER	0.020
2	3041214	HOUSING	0.210
3	3041215	JUNIOR POWER TIMER CONTACT	0.004
4	3041216	SINGLE-LINE SEAL	0.01
5	3041217	MICRO TIMER CONTACT	0.001
6	3041218	SINGLE-LINE SEAL	0.001
8	3317968	BLIND PLUG	0.010
9	0550515	CRIMP-TYPE CABLE SOCKET	0.001
10	2214703	CABLE (PER METER)	0.01
11	2315700	CABLE	0.020
12	2214704	CABLE (PER METER)	1
13	1370458	CABLE (PER METER)	0.060
14	3041332	TIMER HOUSING	0.01
15	3317642	JUNIOR TIMER CONTAKT	0.005
16	3317926	CORRUGATED HOSE (PER METER)
17	3317927	CORRUGATED HOSE (PER METER)
18	3046708	JUNIOR TIMER CONTAKT FOR SIGNLE FEED	0.005
20	3317930	CORRUGATED TUBE
27	2318261	CABLE FLRY-B 0,5 BN (PER METER)	0.085
33	3317917	SOCKET HOUSING	0.005
34	3317934	PLUG ADAPTER	0.004
35	3325763	RUBBER CAP	0.005
36	3320722	SOCKET HOUSING	0.015
37	3323676	CAP	0.006
38	3320720	SOCKET CONTACT	0.14
39	3317924	PIN HOUSING	0.01
40	3317912	SOCKET CONTACT	0.005
41	3320721	SINGLE-LINE SEAL	0.005
42	3317920	PIN	0.005
43	3317913	SEAL	0.005
46	3317915	BLIND PLUG	0.005
47	1680204	RECEPTACLE	0.005
48	2311919	INSULATING SLEEVE	0.080
49	3320685	CORRUGATED TUBE
50	3317929	CORRUGATED HOSE (PER METER)	0.001
51	3320726	REDUCER
52	3323500	REDUCER
53	3327548	CORRUGATED HOSE (PER METER)
55	3041338	BLIND PLUG	0.003
56	3317966	REDUCER
57	3319501	CABLE-PLUG BOX	0.001
58	3325424	SHRINK HOSE	0.015
59	3317941	T-CONNECTION
61	3007823	PLUG WITH CABLE	0.28
63	3007821	PLUG WITH CABLE	0.17
64	3140244	SOCKET HOUSING
65	3140243	DUST HOOD
66	3140242	CONTACT BUSH
67	3141354	SEALING RING
68	2318067	RESISTOR	0.005
70	3317965	REDUCER
72	3317994	T-CONNECTION
74	3320834	SHRINK HOSE
79	3041720	TIMER HOUSING	0.04
80	3317069	SHRINK HOSE (PER METER)	0.090
81	3320309	RESISTOR (0355 1K0 TYP MBA 0204)	0.001
82	3320312	RESISTOR	0.005
83	3320016	RESISTOR	0.83
86	3325977	TWISTED SHEATHED CAN BUS CABLE	1.558
87	3321643	SHRINK HOSE	0.07
88	3328033	FUSION TAPE	0.001
89	3317996	CORRUGATED TUBE
91	3317993	MANIFOLD
93	3142590	PLUG
95	3041112	PUR-CABLE (PER METER)	0.05
98	3317928	CORRUGATED HOSE (PER METER)
109	3046960	TIMER HOUSING	0.005
110	1204574	PIN HOUSING	0.005
111	1680207	SNAP-IN TAB
