Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3176471-ETL (Grove GMK 6400 )
3176470-ETL (Grove GMK 6400 )
3176469-ETL (Grove GMK 6400 )
3176464-ETL (Grove GMK 6400 )
3176465-ETL (Grove GMK 6400 )
3191835-ETL (Grove GMK 6400 )
3183886-ETL (Grove GMK 6400 )
3183887-ETL (Grove GMK 6400 )
3183885-ETL (Grove GMK 6400 )
3296693-ETL (Grove GMK 6400 )

Also known as:
3041214, 03041214, 003041214
Parts for Grove GMK 6400, Figure 3183886-ETL:

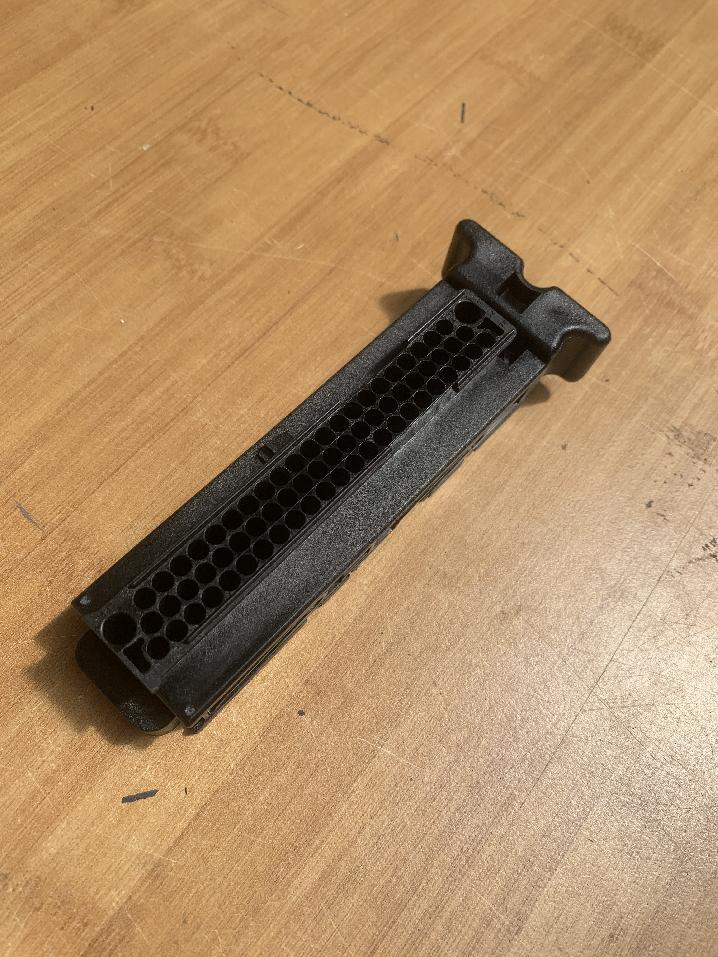

Part Number 3041214: HOUSING
Pos nr Part number Description Weight in kg
1 3041213 PROTECTIVE COVER 0.020
2 3041214 HOUSING 0.210
3 3041215 JUNIOR POWER TIMER CONTACT 0.004
4 3041216 SINGLE-LINE SEAL 0.01
5 3041217 MICRO TIMER CONTACT 0.001
6 3041218 SINGLE-LINE SEAL 0.001
8 3317968 BLIND PLUG 0.010
9 0550515 CRIMP-TYPE CABLE SOCKET 0.001
10 2214703 CABLE (PER METER) 0.01
11 2318261 CABLE FLRY-B 0,5 BN (PER METER) 0.085
12 2214704 CABLE (PER METER) 1
13 1370458 CABLE (PER METER) 0.060
14 3041332 TIMER HOUSING 0.01
15 3317642 JUNIOR TIMER CONTAKT 0.005
16 3317926 CORRUGATED HOSE (PER METER)
17 3317927 CORRUGATED HOSE (PER METER)
18 3317929 CORRUGATED HOSE (PER METER) 0.001
19 3320883 CORRUGATED HOSE (YARD GOOD)
20 3317930 CORRUGATED TUBE
27 3317944 REDUCER
33 3317916 SOCKET HOUSING
34 3317933 PLUG ADAPTER 0.004
35 7709000815 PLUG 0.080
37 7364100010 SAFETY FUSE
40 3317912 SOCKET CONTACT 0.005
43 3317913 SEAL 0.005
46 3317915 BLIND PLUG 0.005
59 3317993 MANIFOLD
60 3317996 CORRUGATED TUBE
64 3041854 SOCKET HOUSING 0.006
65 3317932 PLUG ADAPTER 0.005
66 3041720 TIMER HOUSING 0.04
70 3140331 HOUSING
71 3140277 BUSH INSERT
72 3143247 HOSE CONNECTION 0.001
75 3325977 TWISTED SHEATHED CAN BUS CABLE 1.558
76 3317995 REDUCER
78 3320726 REDUCER
79 3317994 T-CONNECTION
80 3320725 CORRUGATED HOSE (PER METER)
81 0553047 REDUCER 0.02
82 3320768 Y-DISTRIBUTOR
83 3317941 T-CONNECTION
84 3319741 T-CONNECTION
85 3325197 T-CONNECTION
86 3320685 CORRUGATED TUBE
87 3320834 SHRINK HOSE
90 3041333 TIMER HOUSING 0.005
91 3325763 RUBBER CAP 0.005
93 3319396 SHRINK HOSE (PER METER)
94 3321643 SHRINK HOSE 0.07
95 3328033 FUSION TAPE 0.001
97 3317966 REDUCER
100 3046040 SOCKET HOUSING 0.005
101 3327356 T-CONNECTION
102 3319742 RECEPTACLE FOR TABS 0.010
105 2251769 MULTICORE CABLE END 0.001
106 4156015 PLUG CONNECTION
