Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
2309902-ETL (Grove GMK 5220 )
3080215-ETL (Grove GMK 5220 )
3327138-ETL (Grove GMK 5220 )

Also known as:
1925724, 01925724, 001925724
Parts for Grove GMK 6400, Figure 3080215-ETL:

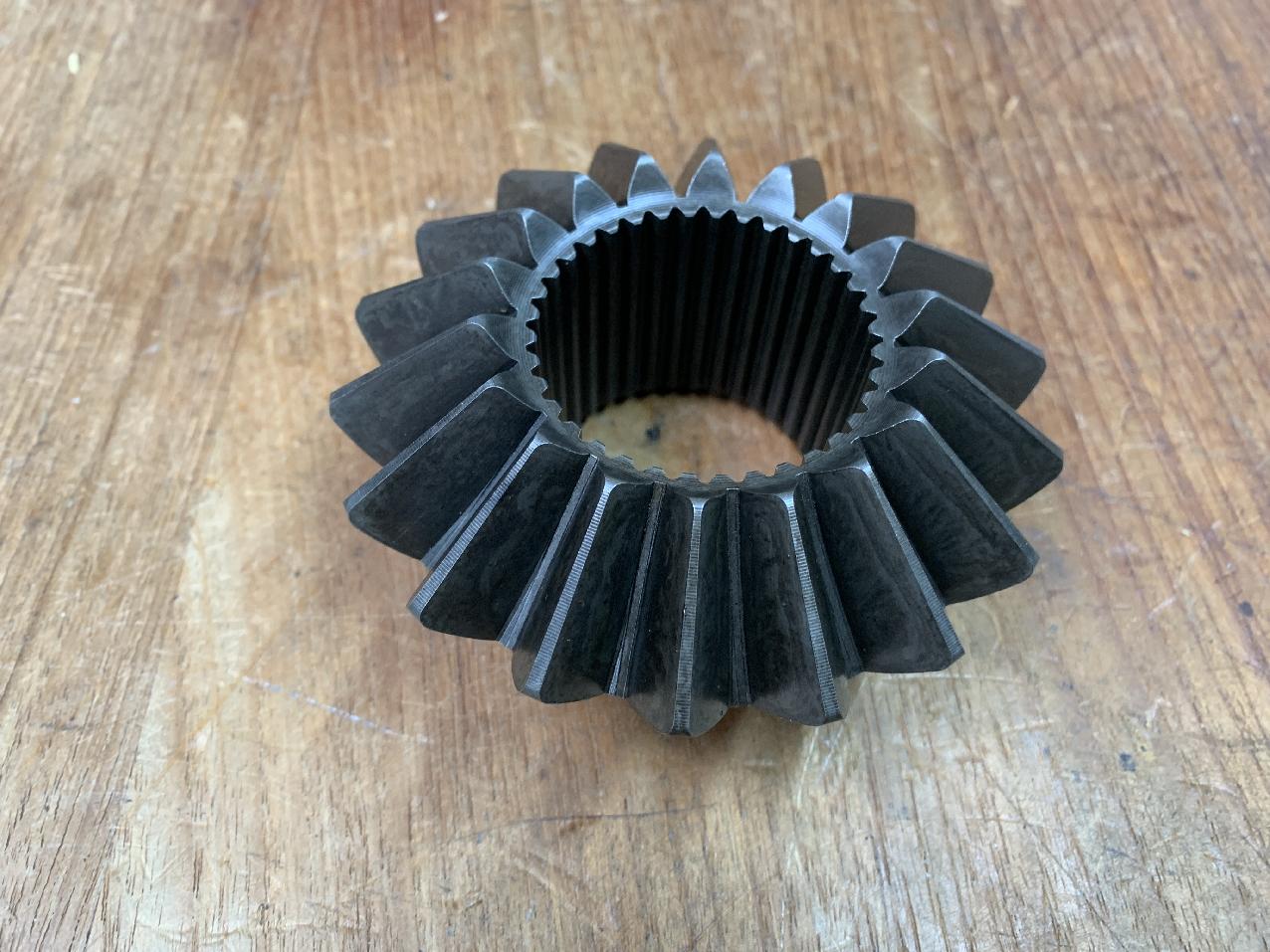

Part Number 1925724: DIFFERENTIAL SIDE GEAR
Pos nr Part number Description Weight in kg
2 3042123 PLAN ETARY GEAR CASING
4 2313433 ROTARY SHAFT SEAL 0.06
5 3042125 ROTARY SHAFT SEAL 0.28
6 3042126 HOUSING COVER
7 0118954 HEXAGON SCREW 0.03
8 1684110 BEARING BUSH 0.12
9 1684144 GROOVED BALL-BEARING 4.360
11 1684138 CIRCLIP 0.018
12 2309054 O-RING 0.005
13 3326617 GEAR WHEEL
14 3326618 GEAR WHEEL
15 2309025 AXLE CASING
16 1925785 SCREW PLUG 0.08
17 0117151 SEALING RING 0.005
18 1371216 SCREW PLUG 0.23
19 1371208 SEALING RING 0.005
23 2309022 COVER 10.26
24 0437306 HEXAGON SOCKET HEAD CAP SCREW 0.02
25 3316942 O-RING, 158 X 3 0.140
26 2309020 FLANGE
27 1685245 HEXAGON SCREW
28 2309031 DIFFERENTIAL HOUSING 10.700
29 1925722 THRUST WASHER 0.05
30 1925723 THRUST WASHER 0.070
31 1925724 DIFFERENTIAL SIDE GEAR 0.9
32 1925725 DIFFERENTIAL BEVEL GEAR 0.66
33 1925726 DIFFERENTIAL SPIDER 1.372
34 1925727 BEARING BUSH 0.075
35 1925349 TAPERED ROLLER BEARING 1.37
36 2309029 ADJUSTING RING 0.730
37 0118438 HEXAGON SOCKET HEAD CAP SCREW 0.04
38 2309030 HEXAGON SOCKET HEAD CAP SCREW 0.005
39 2254135 GEAR REDUCER HOUSING
41 1925729 BEARING BUSH 0.02
42 2309032 SLIDING SLEEVE 0.62
43 2309033 SHIFT FORK
44 2309034 PISTON 0.13
45 2309035 BACK-UP WASHER 0.010
46 2212311 O-RING, 32 X 5 0.005
47 2309037 THREADED BUSH 0.090
48 1925786 PRESSURE SPRING 0.03
49 2309038 O-RING, 50 X 3 0.005
50 2309039 CYLINDER 0.26
51 3042128 PRESSURE SWITCH 0.300
52 0117137 SEALING RING 0.005
53 1925746 PINION AND RING GEAR 17.370
54 0433890 TAPERED ROLLER BEARING 3.020
55 1925790 BACK-UP WASHER 0.17
56 0434651 TAPERED ROLLER BEARING 2
57 2313419 RING 0.230
58 1684119 DRIVE-IN NUT 0.420
59 3042129 DRIVE FLANGE 0.001
60 3324299 RING 0.68
60 3024299 RING
61 1207938 HEXAGON SCREW 0.06
62 2309049 SHAFT 5.72
63 2309050 SHAFT 5.72
64 0434575 GROOVED BALL BEARING 1.085
65 2252487 BACK-UP WASHER 0.06
66 1207981 CIRCLIP
67 3324547 ROTARY SHAFT SEAL 0.16
68 3326589 HEXAGON SCREW
69 1686701 WASHER 0.005
70 2309043 PRESSURE SPRING 0.03
71 2309047 CIRCLIP
73 1371192 SPACER RING 0.04
76 2257878 SEALING RING 0.001
77 2309045 SHIM RING 0.001
78 2309044 BUSH
79 2309046 ROD 1.100
80 0106067 HEXAGON SOCKET HEAD CAP SCREW
81 0117145 SEALING RING 0.005
82 2309023 O-RING, 108 X 3 0.005
83 0028503 CIRCLIP 0.095
84 1680190 HEXAGON SCREW
85 3042130 TRANSFER DRIVE SHAFT 14.9
87 1684580 GROOVED BALL-BEARING 0.780
88 2309021 O-RING, 265 X 4 0.025
89 2309036 ROD 0.29
90 1925719 COVER
92 1925758 ADJUSTING RING 0.620
93 1925759 LOCKING PLATE
94 3326591 HEXAGON SCREW
95 1684139 BACK-UP WASHER
98 0434649 TAPERED ROLLER BEARING 1.31
101 2257786 HEXAGON SCREW 0.08
102 3042135 SEALING RING 0.001
103 3042131 HEXAGON SOCKET HEAD CAP SCREW
104 0100517 STRAIGHT PIN
105 3042132 SCREW PLUG
108 3326619 WASHER 0.13
109 1684124 DIFFERENTIAL SIDE GEAR 1.6
110 1684125 DIFFERENTIAL SPIDER 1.51
111 1684127 DIFFERENTIAL BEVEL GEAR 0.550
112 1684111 BEARING BUSH 0.550
113 1684122 THRUST WASHER 0.080
114 1684126 DIFFERENTIAL SIDE GEAR 1.400
115 1684113 THRUST WASHER 0.340
116 1684112 BEARING BUSH 0.110
117 3316215 SPECIAL LUBRIGATION GREASE 1.14
