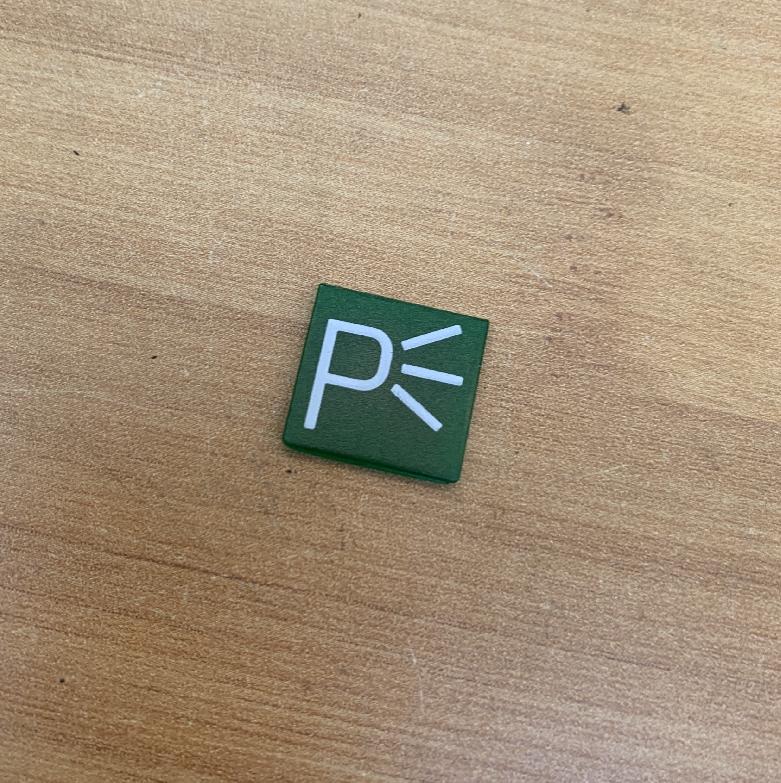

Grove 1924191 - INSERT PARKING BRAKE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
1924191, 01924191, 001924191

Parts for Grove GMK 6400, Figure 3089056-ETL:
Part Number 1924191: INSERT PARKING BRAKE

Pos nr	Part number	Description	Weight in kg
1	1929340	E.- DISTANCE THERMOMETER	0.340
2	2210100	INSERT LUBRICATION	0.01
3	1929342	BRACKET STRAP	0.072
4	1922243	PILOT LAMP	0.015
5	1926083	TOGGLE SWITCH	0.03
6	1922248	TOGGLE SWITCH	0.030
7	1929109	INSERT AIR FILTER	0.001
8	1922274	SYMBOL BATTERY	0.005
9	1922250	INSERT WITHOUT SYMBOL	0.005
10	1922264	INSERT SYMBOL LAMP	0.005
11	1929108	INSERT BRAKE FLUID PRESSURE	0.005
12	1924191	INSERT PARKING BRAKE	0.005
13	1929115	INSERT ENGAGE 2ND AXLE	0.001
14	2255087	INSERT MALFUNCTION	0.001
15	2210053	INSERT DIFFERENTIAL LOCK	0.001
16	3054771	FRONT PLATE	0.315
17	2312265	AIR EXHAUST	0.3
18	1922241	END PIECE	0.010
19	1922242	LUG LIFTING	0.010
20	3041332	TIMER HOUSING	0.01
21	3317642	JUNIOR TIMER CONTAKT	0.005
23	1929988	RECEPTACLE	0.004
24	2214704	CABLE (PER METER)	1
25	2214680	HOUSING
26	3323625	PLUG CASING
27	1922262	BRACKET STRAP	3.629
30	2214516	INSERT FOG WARNING LAMP	0.005
35	3009187	INSERT MALFUNCTION MOTOR	0.005
36	1929113	SUBWELDMENT 1 UNIT ITEMS 001-002	0.001
37	1922284	INSERT LIGHT	0.002
41	3317574	TACHOMETER	0.4
42	3317573	ACCESSORIES TACHOMETER	0.001
43	1206885	OPERATING HOUR COUNTER	0.250
44	3323629	CONTACT STANDARD TIMER	0.001
45	1677741	RECTIFIER	0.001
46	3080508	CABLE HARNESS, GROUND DISTRIBUTOR 15	0.240
47	3065966	CABLE HARNESS; PLUS-DISTRIBUTER 10
