Parts for Grove GMK 4090-1, Figure 3123082-ETL:

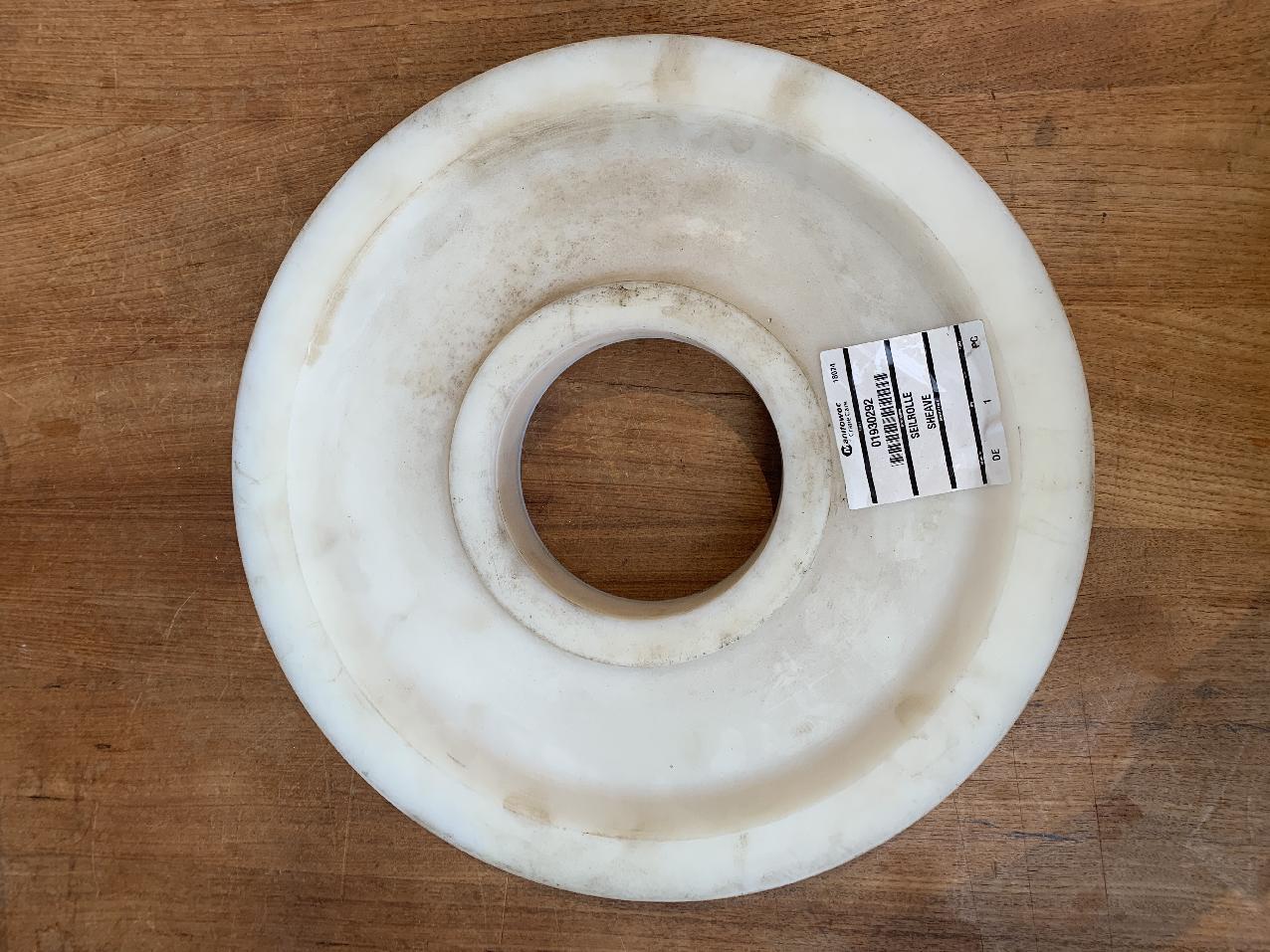

Part Number 1970004: SHEAVE 355 CPL.

Pos nr	Part number	Description	Weight in kg
5	2312962	END COVER
6	0437182	HEXAGON SCREW M10X25	0.120
7	1368030	WASHER M10	0.005
11	2312961	AXLE
12	3006750	SPACER RING
13	0103207	HEXAGON SCREW
14	0437643	HEXAGON NUT M10	0.010
16	3063079	HOLDER
17	0114154	WASHER	0.015
18	0437189	HEXAGON SCREW	0.035
19	0437529	WASHER 12	0.006
21	0209834	LUBRICATION NIPPLE	0.005
22	3007622	SHEAVE HOLDER, CPL.
23	3095469	AXLE	3.1
24	1067552	RETAINING PIN	0.16
26	3064778	PIN	0.92
27	3103308	ADJUSTING PLATE
28	2311606	PIN	0.23
29	1684378	ROLLER	0.2
30	0437755	WASHER
31	1368076	COTTER PIN	0.001
32	0437184	HEXAGON SCREW	0.030
34	3103306	ADJUSTING PLATE
35	0437202	HEXAGON SCREW	0.08
36	0437645	HEXAGON NUT	0.030
38	0437530	WASHER 16	0.01
39	0437709	WASHER 17	0.049
40	1970004	SHEAVE 355 CPL.	7.1
41	1065255	SPACER RING	0.07
42	3130539	SPACER RING	0.008
43	3130537	AXLE	1.34
44	3130538	END COVER
45	1577737	HEXAGON SCREW
46	0437744	HEXAGON NUT M10	0.014
48	3054250	PIN	0.54
49	0438773	SAFETY LINCH PIN	0.165
50	3004232	ROLLER	0.021
51	3095470	LEVER
52	3095471	COVER
61	3111878	ROD HOLDER	0.32
