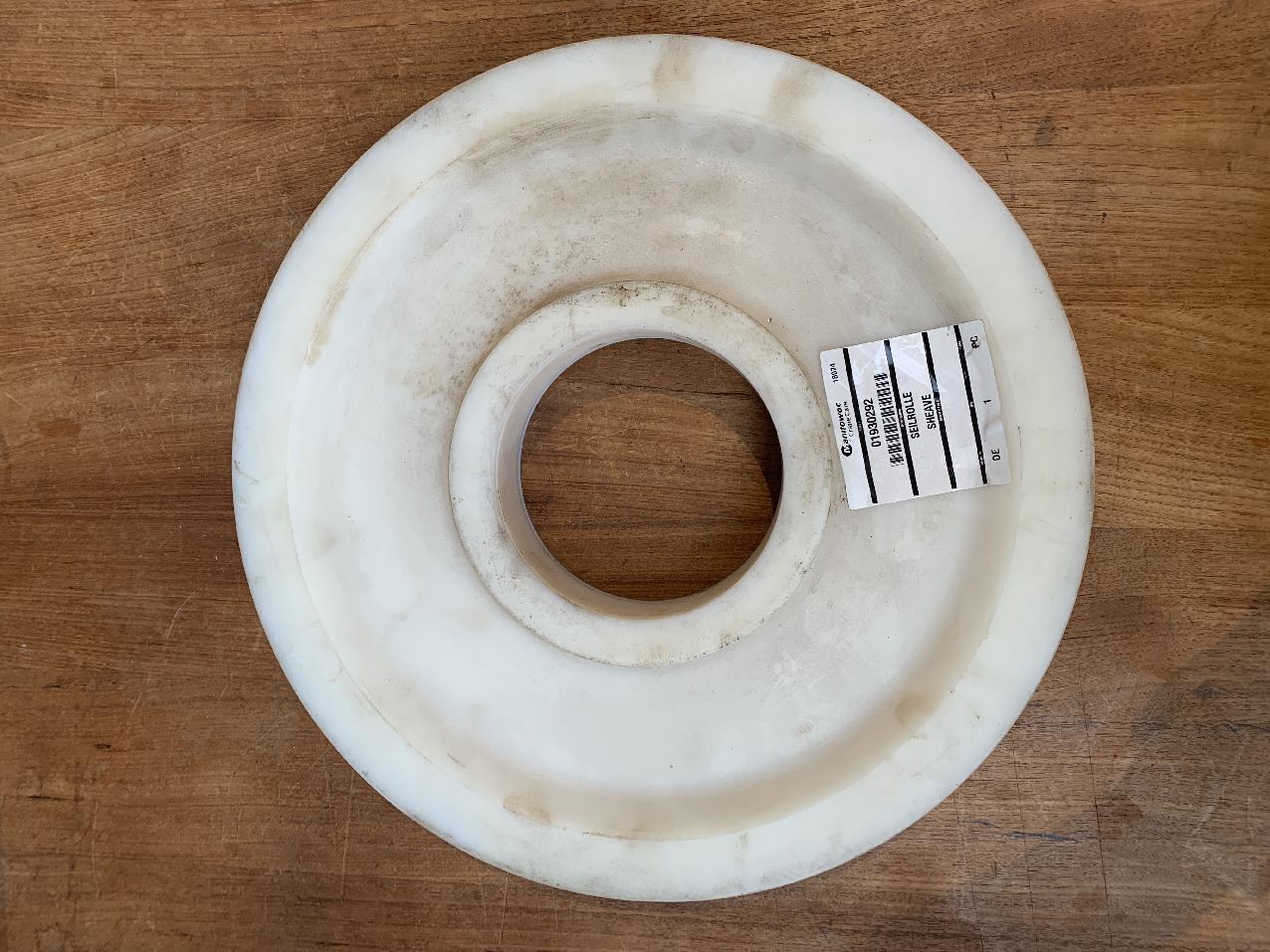

Grove 3120774 - SHEAVE, CPL.

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3120774, 03120774, 003120774

Parts for Grove GMK 5095, Figure 3115510-ETL:
Part Number 3120774: SHEAVE, CPL.

Pos nr	Part number	Description	Weight in kg
1	3127740	SWINGING FORK
2	1677153	CYLINDRICAL ROLLER BEARING	2.140
2	3120774	SHEAVE, CPL.	6.90
2	3120775	PULLEY	5.180
5	1065128	SPACER RING	0.2
6	3127929	PIN
9	3127972	HEXAGON SCREW
10	0436618	HEXAGON NUT	0.16
11	3004232	ROLLER	0.021
12	0438773	SAFETY LINCH PIN	0.165
13	3152769	PIN
14	3127974	TENSION SPRING	0.001
16	1681147	COTTER PIN
17	1921792	RETAINING PIN	0.075
18	3152766	ROUND STEEL
19	3152801	PAWL
