3114621-ETL (Grove GMK 3050-1 E.- PARTS, CONTROL SEAT, LEFT)
3114622-ETL (Grove GMK 3050-1 E.- PARTS, CONTROL SEAT, RIGHT)

Parts for Grove GMK 6400, Figure 3114621-ETL:

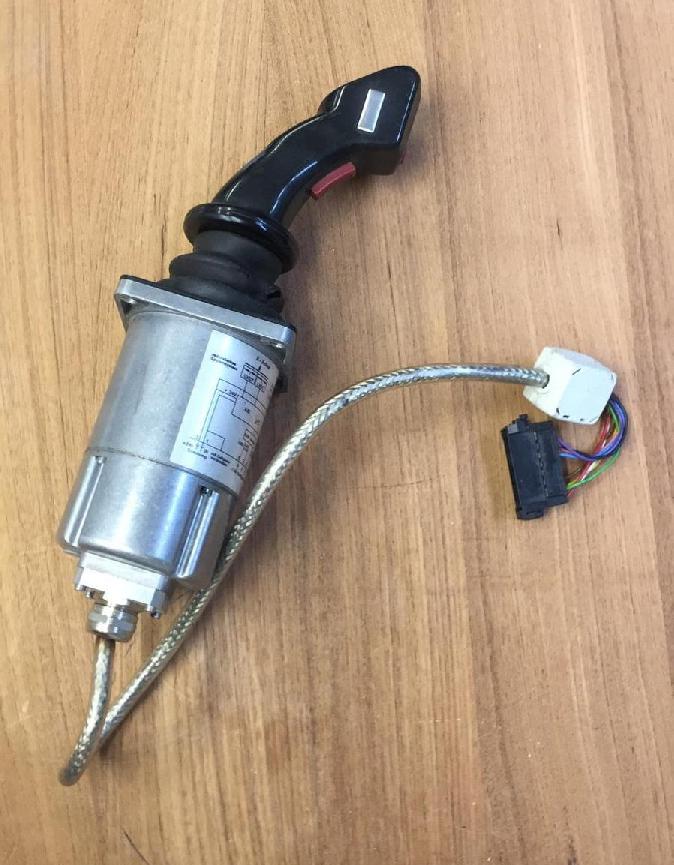

Part Number 3078546: CONTROL LEVER

Pos nr	Part number	Description	Weight in kg
1	2215148	TOGGLE SWITCH	0.16
2	3064305	INSERT SYMBOL SLEWING GEAR	0.010
3	1922244	COVER	0.005
4	1922241	END PIECE	0.010
5	1922242	INTERMEDIATE SECTION	0.010
6	2309372	INSERT UP/DOWN. LIGHT YELLOW	0.010
7	1922247	TOGGLE SWITCH	0.200
8	3078546	CONTROL LEVER	2.185
9	3099212	SIGN	0.160
10	2210198	TOGGLE SWITCH	0.160
11	3193444	SYMBOL, DERRICKING GEAR	0.141
