Parts for Grove TT 865, Figure 6176990186 :

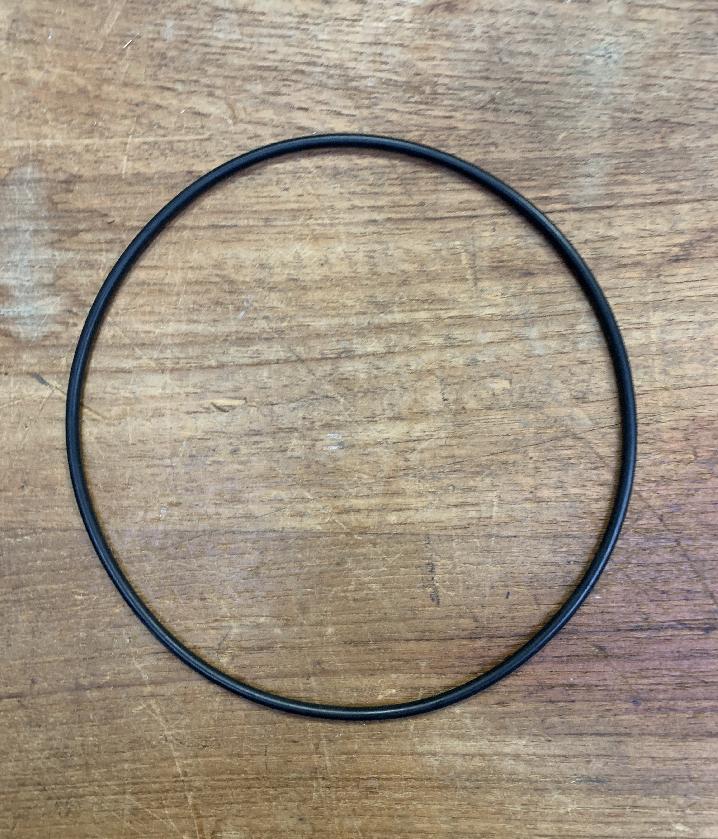

Part Number 7755256000: O-RING
Pos nr Part number Description Weight in kg
1 9752100419 KIT 0.22
1 6547000157 HOUSING, BRAKE
2 6486000673 DIPSTICK
2 6258000747 COVER
3 6450000291 FLANGE
3 7632000744 COMPLETE ASSY
4 6846000130 STOP
4 6701000189 PISTON
5 6810001788 SHAFT 1.9
5 7110181005 CAPSCREW
6 7705009286 STATOR 0.089
6 7950180080 LOCK WASHER, 1/2" I.D.
7 7388990005 ZIE 7388000101
7 7444040150 BUSH
8 7834000165 SPRING 0.04
8 7934000007 AIR VENT
9 7753000437 SNAP RING
9 6650040240 NIPPLE
10 7755252000 O-RING
10 7444000460 ELBOW, 90 DEGREE
11 7755256000 O-RING
11 6650040640 PIPE
12 7753000225 SNAP RING
12 7755152000 O-RING 0.004
13 7115161250 CAPSCREW 0.023
13 7069000349 BEARING, BALL 0.26
14 6910007874 SPACER
15 7444020270 ELBOW, STREET 0.001
15 7794000517 SEAL
16 7444020011 PLUG, PIPE
16 6490000078 GEAR
17 6570101000 KEY
18 7115161050 HEX HD BOLT 0.103
19 7949000377 WASHER 0.015
20 7926000352 VALVE 0.01
101 6547000109 HOUSING, GEAR
102 6258000425 COVER, GEAR HOUSING
104 6250000013 PLANET CAGE & SHAFT
105 7690171624 DOWEL, GROUND
106 6176000278 SHIM, LAMINATED
107 6199000530 BEARING SPACER 0.074
108 6176000075 INTERNAL GEAR 16.75
109 7176000073 GEAR, PLANET AND PINION 6.6
110 7176000074 PLANET SHAFT 0.47
111 7069000109 BEARING, PLANET CAGE AND SHAFT 0.776
112 7115151050 CAPSCREW 0.014
113 7950150000 LOCKWASHER 5/16" I.D.
114 7115182050 CAP SCREW 0.078
115 7660180008 NUT, HEX
116 7950180020 LOCK WASHER, 1/2" I.D.
117 7690141445 PIN. SLOTTED SP 0.001
118 7069000111 BEARING PLANET 0.09
119 7069000107 BEARING 0.12
120 7794000145 SEAL SHAFT 0.1
121 7755358000 O-RING 0.012
122 6176000072 SEAL
123 7069000110 BEARING 2.34
124 7115181250 CAPSCREW 0.045
125 7115181015 SCREW HEX 1/2 UNC X 1 1/4 GRD 5
126 7444040021 PIPE PLUG
127 7444060021 PLUG, PIPE
128 6608000234 LUG, LIFTING
129 7440000000 FITTING, GREASE 1/8"NPT 0.006
130 6705002402 NAMEPLATE
131 7790040404 SCREW, SELF-TAPPING
132 7949000235 WASHER 1/2 ID 0.006
201 7447040403 ELBOW, 90 DEGREE
203 7447120828 ADAPTER, STRAIGHT
