0400-01 (Faun ATF 30-2 AXLE INSTALLATION)
1010-02 (Faun ATF 30-2 GEAR BOX ASSY.)
1102-05 (Faun ATF 30-2 HYDR. PLAN, STEERING)
1603-01 (Faun ATF 30-2 AIR RESERVOIR INSTALLATION)
1697-01 (Faun ATF 30-2 )
2200-04 (Faun ATF 30-2 FENDER INST.)
2960-01 (Faun ATF 30-2 LADDER INSTALLATION)

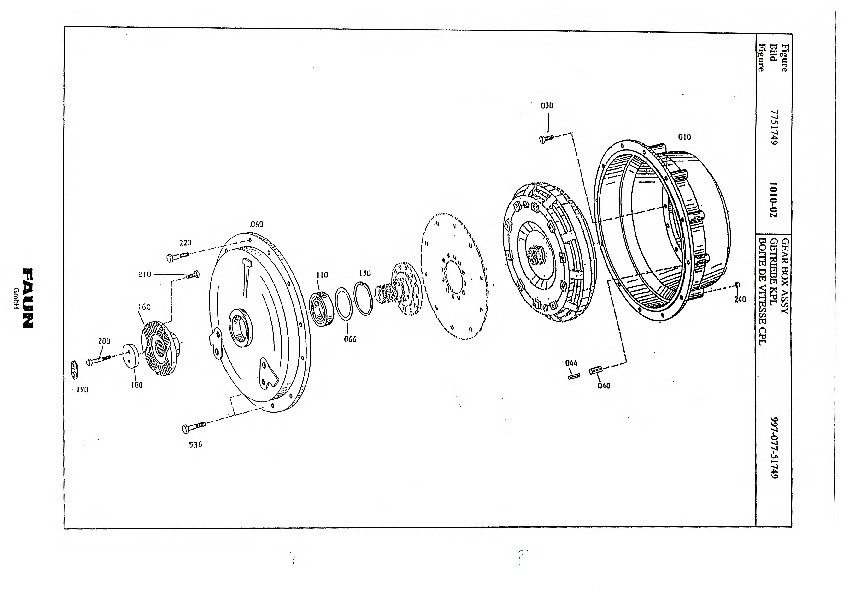

Parts for Faun ATF 30-2, Figure 1010-02:
Part Number 997-000-57127: HEX NUT M10

Pos nr	Part number	Description
10	997-073-04147	HOUSING
30	997-000-55103	HEX BOLT M10X55
40	997-000-13838	ROLL PIN 10X40
44	997-000-13820	ROLL PIN 6X50
60	997-073-04148	COVER
66	997-084-79207	SHIM RING
66	997-014-13103	SHIM S=0.5
66	997-014-13102	SHIM S=0,3
110	997-084-79208	BALL BEARING
130	997-000-12532	RETAINING RING
160	997-073-04149	INPUT FLANGE
180	997-007-64032	DISK
190	997-014-10159	TAB WASHER
200	997-008-86002	HEX BOLT M8X50
210	997-071-22122	HEX BOLT M12X1,5X30
220	997-005-18092	HEX BOLT
240	997-000-57127	HEX NUT M10
532	997-007-25397	HEX BOLT
536	997-001-19434	HEX BOLT M10X140

* Selected parts are automatically added to your RFQ list *

Pieces	Part nr.	Description	Brand
- 1 +	997-000-63296	HEX BOLT	Faun
- 1 +	997-070-41120	SUPPORT MINDER	Faun
- 1 +	997-009-55825	COTTER PIN	Faun
- 1 +	997-077-09489	PIPING-ASSY	Faun
- 1 +	997-070-32641	SOCKET KNEE	Faun
- 1 +	997-070-07744	TUBE	Faun
- 1 +	997-000-57127	HEX NUT M10	Faun
