Demag 62125340 - OIL DRAIN VALVE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Demag (Demag AC )
62-1225 (Demag CC 2800 )
62-1226 (Demag CC 2800 )
62-1235 (Demag CC 2800 )
62-1266 (Demag CC 2800 )
62-1290 (Demag CC 2800 )
62-1290A (Demag CC 2800 )

Also known as:
62125340, 062125340, 0062125340

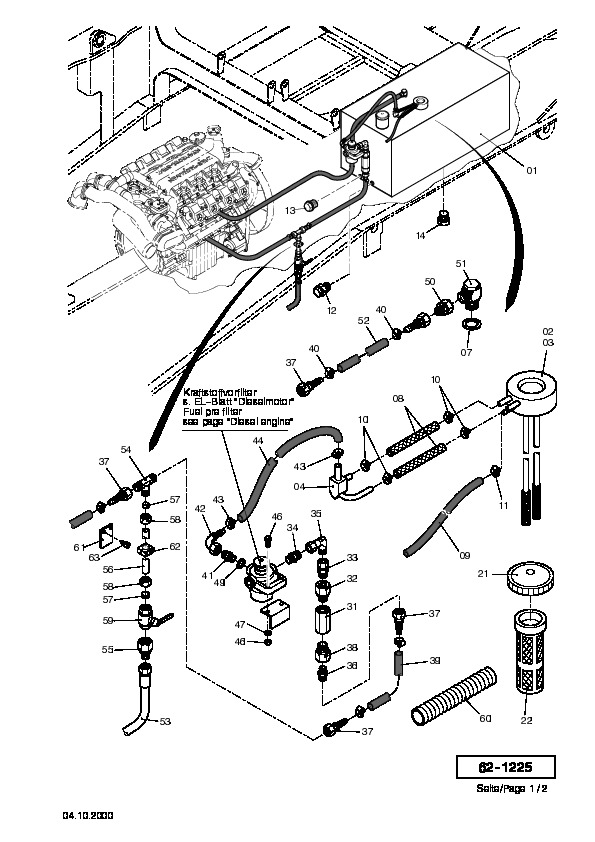

Parts for Demag CC 2800, Figure 62-1225:
Part Number 62125340: OIL DRAIN VALVE

Pos nr	Part number	Description	Weight in kg
1	10125312	FUEL TANK WELDMENT
2	44080940	FUEL TANK GAUGE
3	44081040	GASKET
4	44081440	EXTENSION
5	44001540	RING
6	44081640	HOLLOW-CORE SCREW
7	44081740	GASKET
8	45175540	HOSE, 01 0MM
9	15149599	FUEL HOSE
10	37492399	COVER PLATE	0.08
11	50205198	CLAMP
12	62125340	OIL DRAIN VALVE
13	31312099	SCREW
14	31332299	SCREW
21	25308740	FILLER CAP
22	47480200	STAINER
31	00048312	NON-RETURN VALVE
32	37288099	HYDRAULIC FITTING
33	63448640	SOCKET EF63478040
34	55195840	SOCKET
35	00048212	SOCKET
36	55130240	SOCKET
37	37127599	UNION NUT
38	37288199	UNION
39	10184112	HOSE
41	55198140	SOCKET
42	36740740	SEAL HEAD
43	37492499	HOSE CLAMP EF28760840
44	63502840	HOSE, EL 2MM
45	30742999	SCREW	0.016
46	50421298	NUT
47	50437298	WASHER
48	88961440	ANGLE
49	34024999	GASKET RING
50	63430340	SOCKET	0.08
51	37230299	UNION
52	10184212	HOSE, O1 0X2500 MM
