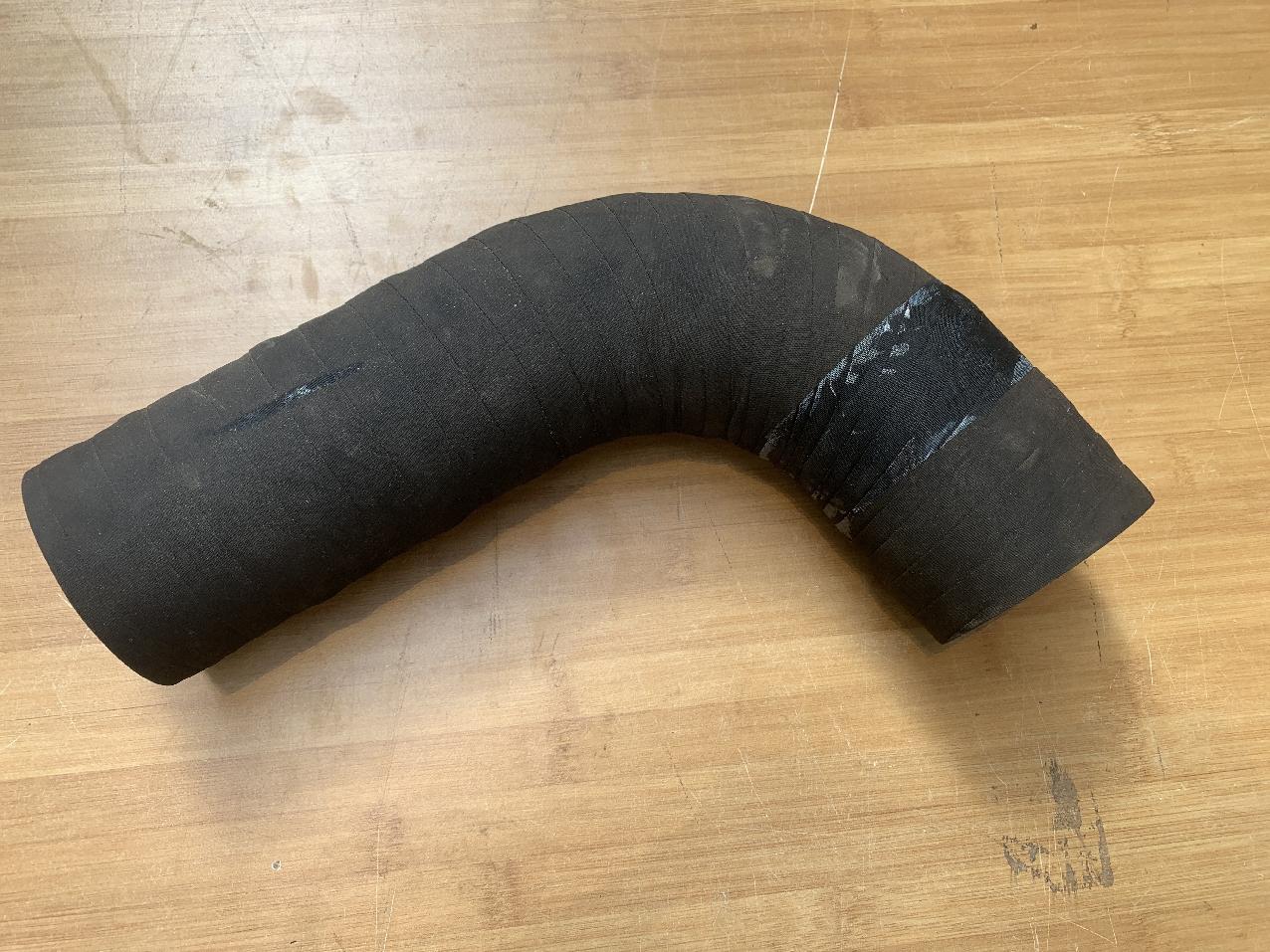

Krupp 2252215 - HOSE ELBOW

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

GMK (Grove GMK )
2220311-ETL (Krupp KMK 4070 )
2220311-ETL (Krupp KMK 4080 )

Also known as:
2252215, 02252215, 002252215

Parts for Krupp KMK 4070, Figure 2220311-ETL:
Part Number 2252215: HOSE ELBOW

Pos nr	Part number	Description	Weight in kg
1	2214729	RADIATOR	96
2	2214730	FAN WHEEL
3	0022034	EQUAUZING RESERVOIR
4	1930604	VENTILATOR FLANGE
6	1571722	SCHEIBE
11	2249728	SIDE SHUTER
12	2222014	FOOTPLATE, LEFT
13	2222015	FOOTPIATE, RIGHT
14	2249729	SIDE SHUTTER
15	2220335	AUXILIARY FRAME
16	2252212	GRID
17	0118979	HEXAGON SCREW M16X30	0.07
18	1146653	HEXAGON NUT	0.033
26	1927716	HOSE ELBOW	1
27	1925398	HOSE CLAMP	0.050
29	2066617	CONSOLE
30	2252215	HOSE ELBOW	0.800
32	2309568	TIGHTENING STRAP	1.11
33	2254037	SEAUNG PLATE
35	2217173	HOSE CLAMP	0.03
36	0107910	SCREW PLUG
37	0117131	SEALING RING	0.005
38	1678285	CONNECTING PIECE FCR HOSE
39	2254040	HOSE	3.2
40	1207152	COUNTERSUNK SCREW
41	1925393	HOSE CLAMP	0.025
43	0553039	RIW-LOCKING CAP	0.32
44	0437903	HOILOW SCREW
46	0552383	HOSE N0771 F
47	2251690	CLIP	0.05
48	2224912	COOUNG WATER PIPE	4.5
49	2228589	COOUNG WATER PIPE	8.5
