PPM F 00338-15 - BOLT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A01 A69-2 (PPM 280 ATT )
A05 A83-3 (PPM 280 ATT )
A13 D77-0 (PPM 280 ATT CAB FLOOR ASSEMBLY)
B51 J12-0 (PPM 280 ATT )
C15 C17D-0 (PPM 280 ATT TRANSFERT BOX)
F30 V101-4 (PPM 280 ATT )
A01 A65-0 (PPM 380 ATT CAB)
A01 A66-0 (PPM 380 ATT CAB)
A01 A69-1 (PPM 380 ATT CAB)
B00 B82-0 (PPM 380 ATT ENGINE-EQUIPMENT)
B00 B82-B (PPM 380 ATT ENGINE-EQUIPMENT)
B00 B82-B (PPM 380 ATT ENGINE-EQUIPMENT)
B06 E31-0 (PPM 380 ATT VALVE MECANISM)
B06 G69-0 (PPM 380 ATT COOLING AIR DUCTING)
B06 G71-0 (PPM 380 ATT COOLING AIR BLOWER)
B06 H31-0 (PPM 380 ATT LUBE OIL PUMP-OIL, FILTER - OIL COOLER)
C03 B43-0 (PPM 380 ATT GEAR BOX - ACCESSORIES)
F30 C248-0 (PPM 380 ATT HYDRAULIC CIRCUIT - COOLER)
HR40 A02-0 (PPM 380 ATT HYDRAULIC TANK)
J02 A132-0 (PPM 380 ATT FOOT PEDAL ASSEMBLY)

Also known as:
F 00338-15, F 0033815

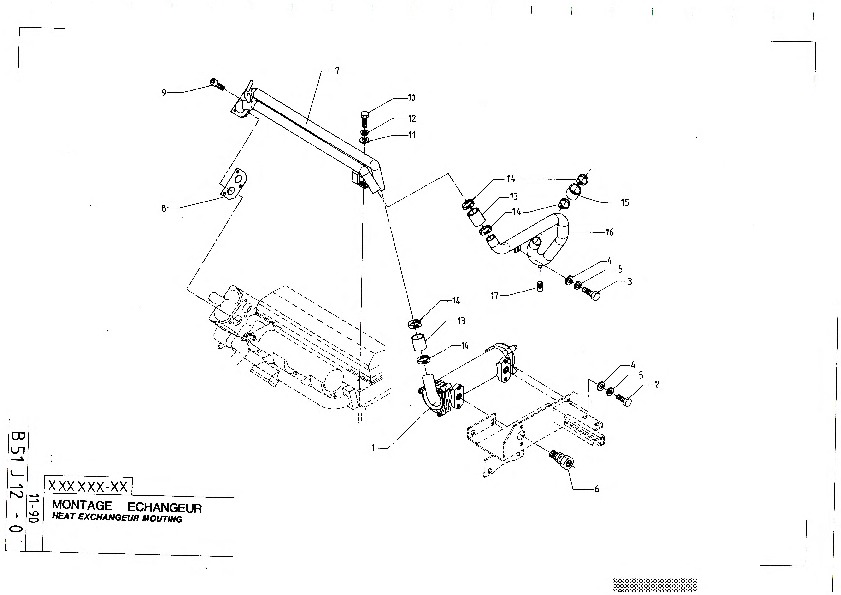

Parts for PPM 280 ATT, Figure B51 J12-0:
Part Number F 00338-15: BOLT

Pos nr	Part number	Description
1	J 23402-35	HEAT EXCHANGER
2	T 00338-27	BOLT
3	V 00338-29	BOLT
4	W 00350-03	RING
5	E 00347-11	WASHER
6	Q 29375-05	UNION
7	Z 41501-65	PIPE
8	N 95460-24	SEAL
9	W 00329-33	BOLT
10	F 00338-15	BOLT
11	V 00350-02	WASHER
12	C 00347-09	WASHER
13	D 77319-13	SLEEVE
14	W 00369-35	COLLAR
15	C 77319-12	SLEEVE
16	X 41501-64	PIPE
17	L 24374-81	PLUG
