PPM M 24433-47 - SLIDE VALVE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Demag (Demag AC )

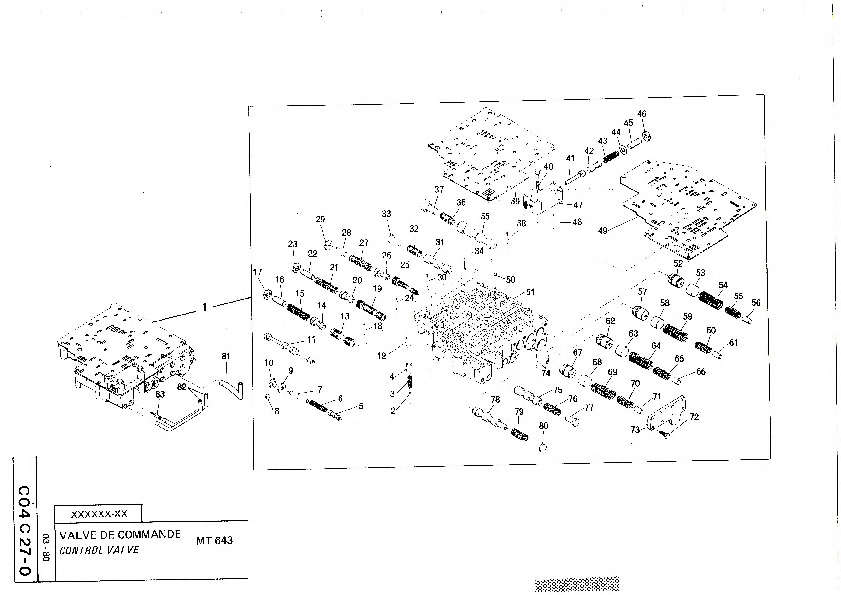

C04 C27-0 (PPM 280 ATT CONTROL VALVE)

Also known as:
M 24433-47, M 2443347

Parts for PPM 280 ATT, Figure C04 C27-0:
Part Number M 24433-47: SLIDE VALVE

Pos nr	Part number	Description
1	D 21436-26
2	K 02357-13
3	P 04381-86	SPRING
4	Q 24433-27	VALVE
5	R 24433-28
6	D 04381-76
7	T 18273-21	PIN
8	N 21374-25	PLUG
9	W 25454-07	WASHER
10	K 36462-97
11	S 24433-29	SLIDE VALVE
12	L 02357-14
13	T 24433-30	SLIDE VALVE
14	U 24433-31
15	E 04381-77	SPRING
16	V 24433-32
17	R 36462-97
18	M 02357-15	SAFETY-PIN
19	K 24433-45
20	W 24433-33
21	F 04381-78	SPRING
25	L 24433-46
26	M 24433-47	SLIDE VALVE
27	G 04381-79	SPRING
31	X 24433-34
32	Q 04381-87
33	Z 24433-35
34	J 02357-12
35	A 24433-36
36	R 04381-88	SPRING
37	B 24433-37	VALVE
40	D 27330-24	SCREW
41	N 28278-62
42	C 24433-38
43	H 04381-80
45	P 21374-26	PLUG
47	D 24433-39
49	T 03496-40
50	V 02310-08
52	E 24330-40
53	Q 21374-27
54	K 04381-82
55	J 04381-81
56	P 24433-26
57	E 24433-40
61	R 21374-28	BLANK-OFF PLUG
64	L 04381-83
65	M 04381-84	SPRING
69	M 04381-85
72	N 27330-33
73	E 04242-85
74	M 02357-16
75	X 24333-34
78	F 24433-41
79	S 04381-81
80	S 21374-29
81	L 20501-84
82	M 20501-85
