PPM H 00338-17 - BOLT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A01 A39-10 (PPM 280 ATT )
B51 J11-0 (PPM 280 ATT )
D04 B15-5 (PPM 280 ATT FRONT AXLE ASSEMBLY)
D04 B16-3 (PPM 280 ATT REAR AXLE ASSEMBLY)
F30 V230-1 (PPM 280 ATT ELECTRO VALVE ASSEMBLY)
J02 A67-2 (PPM 280 ATT AXLE BRAKE VALVE)
K12 A46-0 (PPM 280 ATT ELECTRIC CIRCUIT - BOOM )
PM01 D76-0 (PPM 280 ATT )
PM01 D77-0 (PPM 280 ATT )
A00 AA19-0 (PPM 380 ATT BASIC MACHINE WITHOUR COWLING)
A00 AB19-0 (PPM 380 ATT EUROPE TYPE MACHINE)
A00 AC19-0 (PPM 380 ATT OVERSEA TYPE MACHINE)
A00 AD19-0 (PPM 380 ATT FRANCE TYPE MACHINE)
D04 B47-1 (PPM 380 ATT REAR AXLE ASSEMBLY)
D07 A33-0 (PPM 380 ATT OPTION WHEELS 20.5 X 25)
F30 B90-0 (PPM 380 ATT TANK - PUMP HYDRAULIC CIRCUIT)
HR40 A02-0 (PPM 380 ATT HYDRAULIC TANK)
K12 A46-0 (PPM 380 ATT ELECTRIC CIRCUIT BOOM)
A00 AA23-0 (PPM 480 ATT BASIC MACHINE WITHOUT COWLING)

Also known as:
H 00338-17 , H 0033817

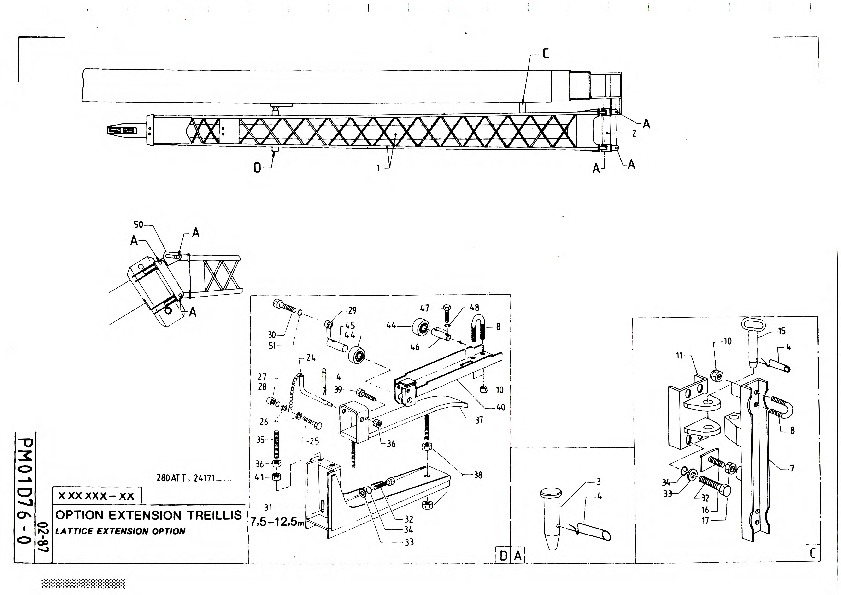

Parts for PPM 280 ATT, Figure PM01 D76-0:
Part Number H 00338-17 : BOLT

Pos nr	Part number	Description
2	F 55282-39
3	X 28278-25	PIN
4	L 00360-05
7	W 66282-06
10	F 23345-51	NUT
11	V 55282-30
15	G 27309-11	PIN
16	P 35271-09	STOP
17	A 00342-24	NUT
24	W 03307-14	PIN
25	M 00326-25	SCREW
26	U 00350-01	WASHER
27	A 00347-07	WASHER
28	C 00341-11	NUT
29	Z 02369-02
30	T 00338-27	BOLT
31	C 66282-11	JIB SUPPORT
32	S 00338-03	SCREW
33	A 00350-06	WASHER
34	J 00347-15	WASHER SLING
35	Z 30277-19
36	E 01345-31
37	V 19282-47
38	S 00341-71	NUT
39	H 00338-17	BOLT
40	P 55282-01
41	C 00341-80	NUT
44	V 02398-17	BEARING
45	Q 04275-15	PIN
46	T 28278-67	PIN
47	M 01338-02	SCREW
50	W 64282-67
51	C 00347-09	WASHER
