PPM R 00338-48 - BOLT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A13 M63-5 (PPM 280 ATT )
D05 B81-0 (PPM 280 ATT )
D05 B82-0 (PPM 280 ATT )
PM02 D24-0 (PPM 280 ATT )
PM08 A122-1 (PPM 280 ATT ELEMENT 4 ASSEMBLY )
A17 M40-0 (PPM 380 ATT OUTRIGGERS ASSEMBLY)
A22 B25-0 (PPM 380 ATT CARRIER ASSEMBLY)
A22 B25A-1 (PPM 380 ATT CARRIER ASSEMBLY)
F30 V210-0 (PPM 380 ATT SWING REDUCER ASSEMBLY)
PM02 D24-0 (PPM 380 ATT LATTICE ELEMENT 7,5-12,5 MTR.)
PM06 A43-2 (PPM 380 ATT BOOM COMPLETE)

Also known as:
R 00338-48 , R 0033848

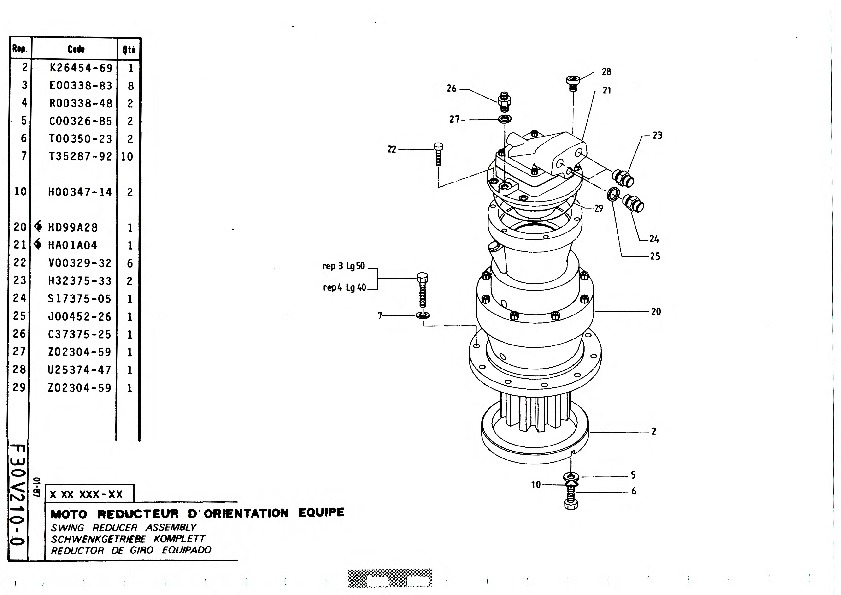

Parts for PPM 380 ATT, Figure F30 V210-0:
Part Number R 00338-48 : BOLT

Pos nr	Part number	Description
2	K 26454-69	EXCENTRIC
3	E 00338-83	BOLT
4	R 00338-48	BOLT
5	C 00326-85	BOLT
6	T 00350-23	WASHER
7	T 35287-92	WASHER
10	H 00347-14	WASHER
22	V 00329-32	BOLT
23	H 32375-33	UNION
24	S 17375-05	UNION
25	J 00452-26	LININGS
26	C 37375-25	UNION
27-29	Z 02304-59	O RING
28	U 25374-47	PLUG
