PPM J 01452-76 - COPPER SEAL

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A13 D77-0 (PPM 280 ATT CAB FLOOR ASSEMBLY)
D04 B15-5 (PPM 280 ATT FRONT AXLE ASSEMBLY)
D04 B16-3 (PPM 280 ATT REAR AXLE ASSEMBLY)
F30 C326-0 (PPM 280 ATT )
F30 V202-0 (PPM 380 ATT PUMP ASSEMBLY)
F30 V206-1 (PPM 380 ATT COOLER ASSEMBLY)
F30 V208-0 (PPM 380 ATT OIL - AIR ASSEMBLY FITTING)
J01 H213-0A (PPM 380 ATT CARRIER AIR CIRCUIT)
J01 H214-0 (PPM 380 ATT SUPERSTRUCTURE AIR CIRCUIT)
J02 A135-0 (PPM 380 ATT PANEL PLATE)

Also known as:
J 01452-76, J 0145276

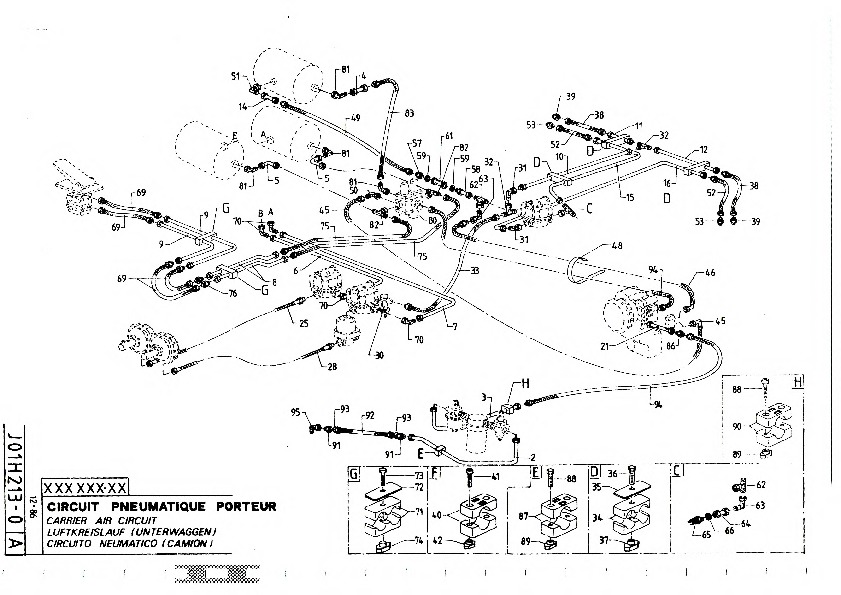

Parts for PPM 380 ATT, Figure J01 H213-0A:
Part Number J 01452-76: COPPER SEAL

Pos nr	Part number	Description
1	P 70471-21
2	V 51490-29	PIPE
3	P 82476-29	PIPE
4	J 20376-93
5	S 70471-24	PIPE
6	C 70471-33
7	M 70471-34
8	F 82476-21
9	Q 70471-22	PIPE
10	R 40376-88
11	U 40376-91
12	S 40376-89	PIPE
14	N 44376-09
15	H 82476-23
16	G 82476-22
18	U 70471-26
19	T 40376-90
21	B 70471-32
25	W 45319-40
27	C 03370-67	ANGLE PIECE
28	N 46319-36
32	N 01372-99	T PIECE
34	L 30203-47	BRACKET
35	T 03270-54	PLATE
36	B 01338-84	SCREW
37	V 05345-85	NUT
39	J 04375-37
40	K 30203-46
41	A 00329-13	SCREW
42	U 05345-84	NUT
45	A 35319-26
47	Q 01372-32
48	D 01369-22	COLLAR
49	Q 46319-04
50	J 03370-73
51	C 03370-44	ANGLE PIECE
57	T 17375-75	UNION
58	Q 29375-05	UNION
59	G 01452-74	COPPER SEAL
60	U 37375-41
61	S 29433-03	VALVE
62	K 11372-21	T PIECE
64	M 28375-90	UNION
65	P 10418-21
66	J 01452-76	COPPER SEAL
82	Q 01372-67
86	Q 17375-72	UNION
87	R 30203-98	CONNECTION FLANGE
90	C 30203-85
91	T 29375-08	UNION
92	W 58319-69
93	Z 00452-17	COPPER SEAL
94	D 46319-04
