PPM A 23345-69 - NUT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Demag (Demag AC )
A13 M63-5 (PPM 280 ATT )
PM08 A104-0 (PPM 380 ATT P3 BOOM SECTION)
PM08 A113-0 (PPM 380 ATT P2 BOOM SECTION)
PM08 A123-0 (PPM 380 ATT P4 BOOM SECTION)

Also known as:
A 23345-69, A 2334569

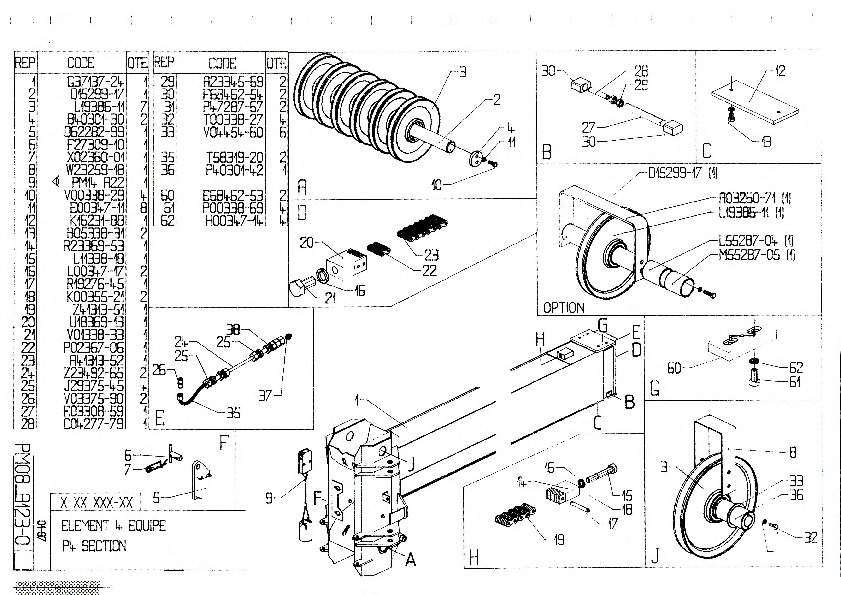

Parts for PPM 380 ATT, Figure PM08 A123-0:
Part Number A 23345-69: NUT

Pos nr	Part number	Description
	A 03260-71	JIB SUPPORT
	L 55287-04
	M 55287-05	SPACER
1	G 37137-24	ELEMENT
2	D 15299-17	PIN
3	L 19386-11	ROPE SHEAVE
4	B 40301-30	WASHER
5	Q 62282-99	BOX
6	F 27309-10	PIN
7	X 02360-01	SAFETY-PIN
8	W 23259-18
10	V 00338-29	BOLT
11	E 00347-11	WASHER
12	K 16231-88
13	B 05338-31	SCREW
14	R 23369-53	FITTING
15	L 11338-18	SCREW
16	L 00347-17	WASHER
17	R 19276-45	PIN
18	K 00355-21	SPLIT PIN
19	Z 41313-51	CHAINE REMP./P
20	U 18369-13	FITTING
21	V 01338-33	BOLT
22	P 02367-06	LINK
23	A 41313-52	CHAINE REMP./P
24	Z 23492-65	PIPE
25	J 29375-45
26	V 03375-90	UNION
27	E 03308-59	SPACER
28	C 04277-79	THREADED ROD
29	A 23345-69	NUT
30	F 68462-54	SKID/SHOE
31	P 47287-67
32	T 00338-27	BOLT
33	V 04454-60	WASHER
35	T 58319-20	PIPE
36	P 40301-42	PIN
60	E 68462-53
61	P 00338-69	BOLT
62	H 00347-14	WASHER
