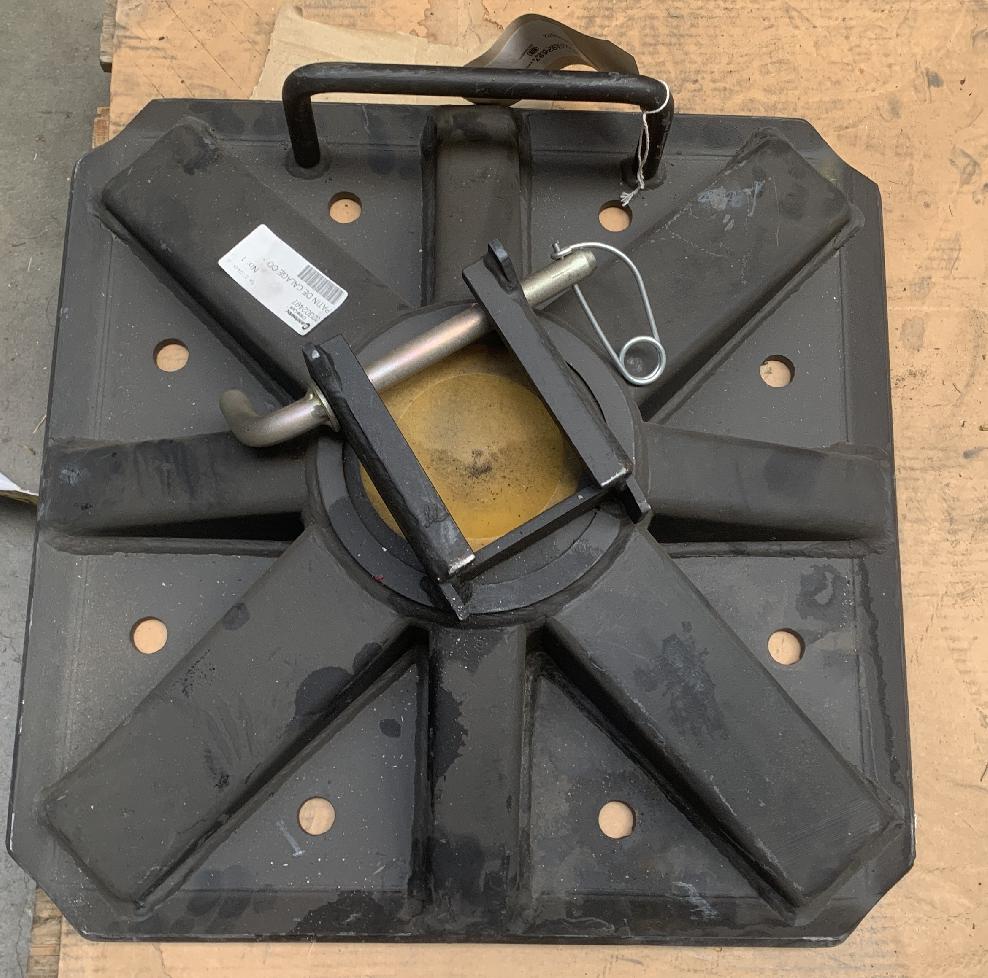

Grove 2302497 - OUTRIGGER PAD

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
2302497, 02302497, 002302497

Parts for Grove GMK 3050, Figure 2287919-ETL:
Part Number 2302497: OUTRIGGER PAD

Pos nr	Part number	Description	Weight in kg
1	2302497	OUTRIGGER PAD	34.600
2	2287923	OUTRIGGER REAR	197
6	0553039	RIW-LOCKING CAP	0.32
7	1930080	PIN	0.34
8	1147603	COTTER PIN	0.005
9	1930424	SLIDER	0.15
10	0437186	HEXAGON BOLT
11	0437545	SPRING WASHER	0.005
12	0437643	HEXAGON NUT	0.010
15	1686305	SUPPORTING ROLLER	0.420
16	2312248	PIN	0.19
17	0027586	WASHER	0.01
18	0437530	WASHER 16	0.01
19	1146653	HEXAGON NUT	0.033
20	1679849	LUBRICATION NIPPLE	0.005
21	0103212	HEXAGON SCREW
22	2304918	GUIDE	2.180
23	0437191	HEXAGON SCREW	0.04
24	0437745	HEXAGON NUT	0.015
25	0437205	HEXAGON SCREW	0.1
26	0437746	HEXAGON NUT	0.034
27	2311236	LOCK
28	3003493	PLATE
