Grove 2312738

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
2312738, 02312738, 002312738

Parts for Grove GMK 3050, Figure 2304388-ETL:

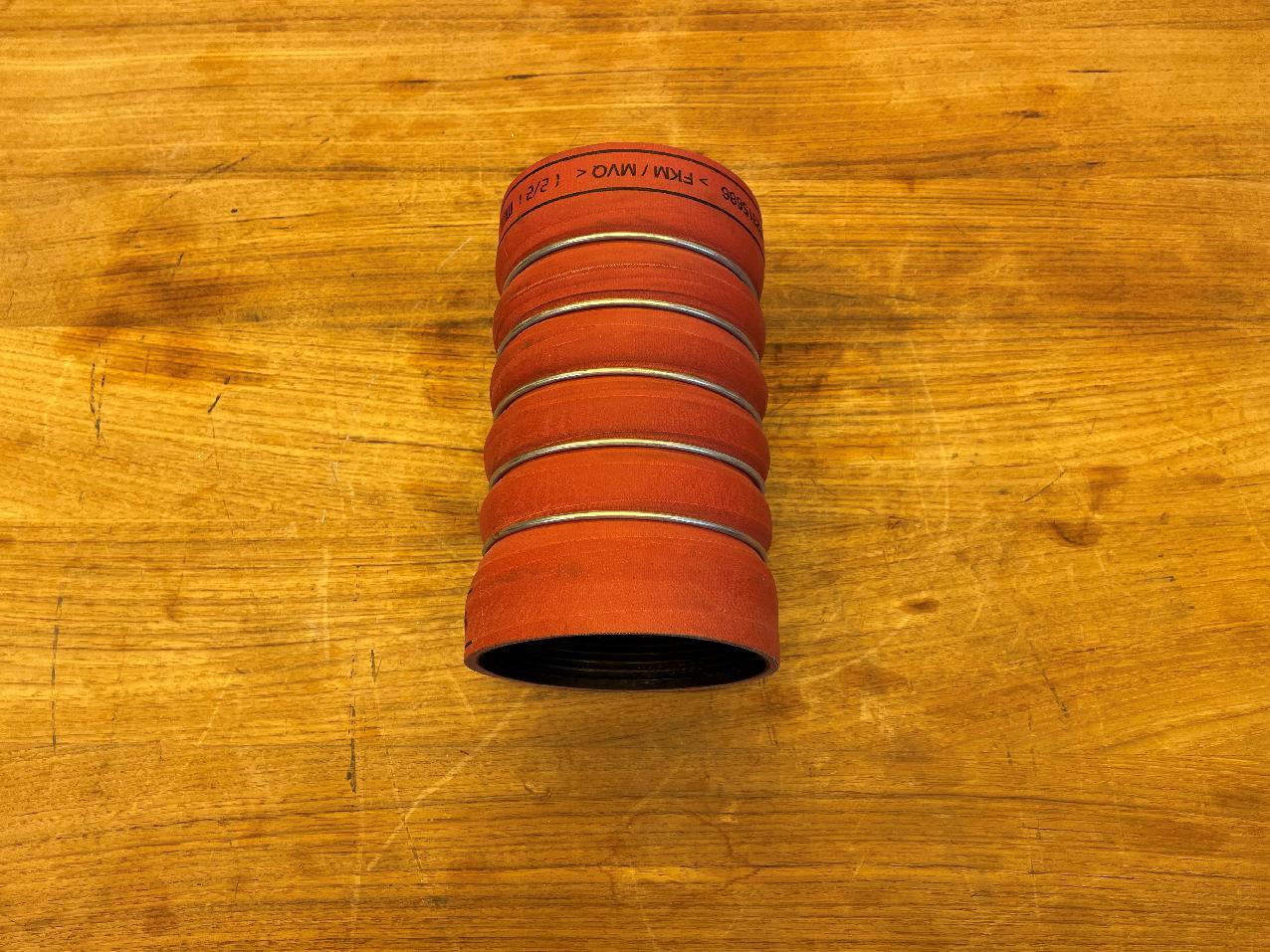

Part Number 2312738: HOSE

Pos nr	Part number	Description	Weight in kg
1	2312743	RADIATOR -	32
2	2310004	CHARGE AIR COOLER
3	2312726	EQUALIZING RESERVOIR
5	2302137	COOLING WATER LINE
6	0107910	SCREW PLUG
6	0117131	RING SEALING	0.001
6	2304449	COOLING WATER LINE
7	2302139	COOLING WATER LINE	0.68
8	2304447	COOLING WATER LINE
10	1071844	CLAMP	0.15
11	1925398	HOSE CLAMP	0.050
12	1925397	HOSE CLAMP	0.03
13	2300627	ACCESSORIES FOR COOUNG SYSTEM
14	2312737	FORM SCHLAUCH
15	1147548	HOSE
17	0437642	HEXAGON NUT M8	0.003
18	0436163	SPRING WASHER	0.005
19	2312735	RETAINER
21	2312733	COOLING WATER LINE	0.001
22	2312738	HOSE	0.500
23	2312736	MOUNTING PIECE
24	1577117	HEXAGON SCREW
25	0437644	HEXAGON NUT M12	0.084
26	0437546	SPRING WASHER	0.005
27	1147184	HEXAGON SCREW	0.06
28	0437530	WASHER 16	0.01
31	1923998	HEXAGON NUT M6	0.005
31	0437543	SPRING WASHER	0.001
31	2300619	RADIATOR SEALING
31	2302150	FRAME
31	0438925	HEXAGON SCREW	0.07
31	2219945	RUBBER EDGE PROTECTION (PER METER)	0.34
32	2312931	TANK
33	2313035	MOUNTING CLAMP
34	2313034	MOUNTING PIECE	0.1
35	2313300	MOUNTING PIECE
36	2313301	MOUNTING PIECE
37	2313302	CLAMP
38	1207280	STEEL PIPE
39	2314340	COOLING WATER HOSE
40	2217173	HOSE CLAMP	0.03
41	1207350	HOSE 10 X 3,5 (PER METER)	0.067
42	2217172	HOSE CLAMP	0.02
43	0437189	HEXAGON SCREW	0.035
44	1681738	HEXAGON NUT M12	0.020
45	2253422	PLATE
46	1374345	WIRE ROPE (METERWARE)	0.1
47	1374346	BRACKET	3.400
48	0552464	WIRE ROPE CLAMP	0.01
