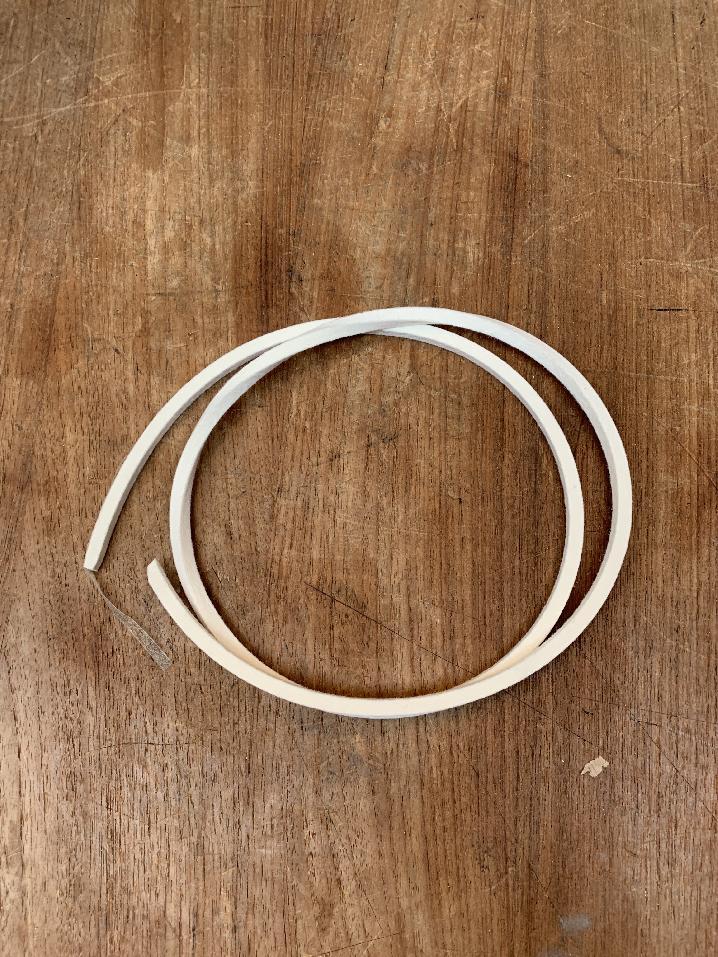

Grove 3328093 - GASKET

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3328093, 03328093, 003328093

Parts for Grove GMK 5170, Figure 3328082-ETL:
Part Number 3328093: GASKET

Pos nr	Part number	Description	Weight in kg
1	0208653	GROOVED BALL BEARING
2	1924500	GROOVED BALL-BEARING	0.18
3	3328088	GROOVED BALL BEARING
4	3042863	GROOVED BALL BEARING	0.370
5	3316986	CYLINDER ROLLER	0.03
6	2315473	ROTARY SHAFT SEAL	0.71
8	3328090	O-RING	0.120
9	3328091	O-RING	0.140
10	3328092	O-RING	0.010
11	3328093	GASKET	0.016
12	3138146	PLANET WHEEL SEAT
13	3138138	PLANET WHEEL SEAT
14	3138150	PLANET WHEEL SEAT
15	1681836	SEALING RING	0.001
16	3138510	SUN WHEEL
17	3138511	RING GEAR
18	3138512	PIN SUPPORT
19	3138513	PIN
20	0028507	CIRCLIP	0.019
21	3138514	PIN SUPPORT
22	3138515	PIN
23	0028195	RETAINING RING
24	3138516	SUN WHEEL
25	3138517	DRIVE SHAFT
26	3138518	SUN WHEEL
27	0028197	CIRCLIP
28	3138519	RING GEAR
29	3138520	SCREW PLUG
30	2311869	HEXAGON SOCKET HEAD CAP SCREW	0.015
31	3138521	COVER
32	3138522	FLANGE
33	1146947	HEXAGON SOCKET HEAD CAP SCREW M12X35	0.04
35	3138523	SUBCARRIER
36	3138524	PIN
37	0028215	CIRCLIP
38	3138525	BEARING RING
39	3329960	RETAINING DEVICE
40	3138526	RETAINING DEVICE
