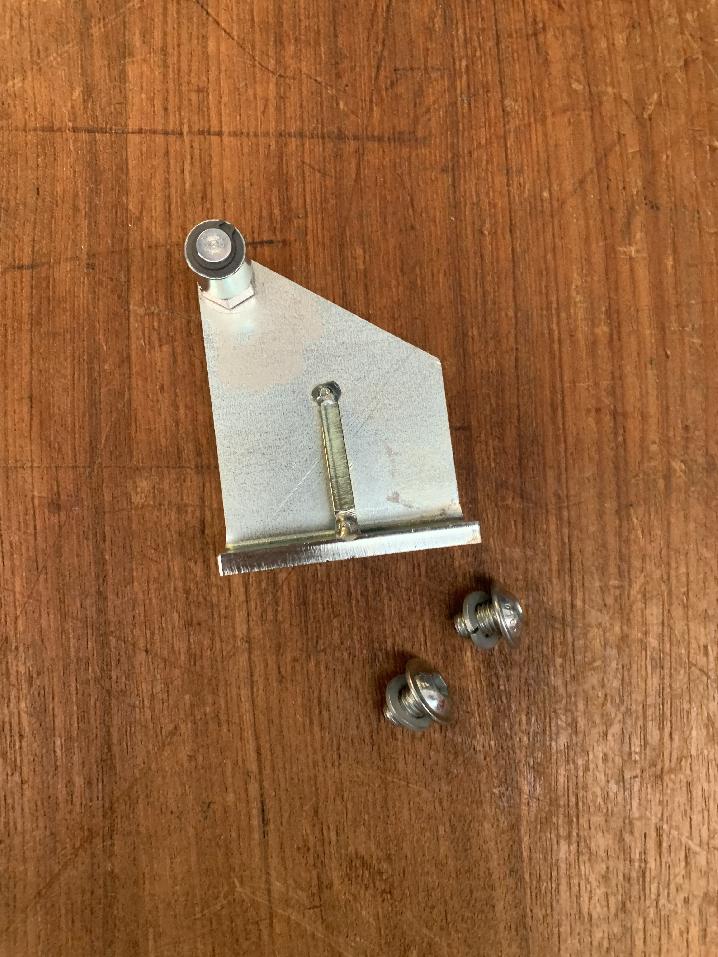

Grove 3322371 - DOOR GUIDE, TOP

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3322371, 03322371, 003322371

Parts for Grove GMK 7450, Figure 3322384-ETL:
Part Number 3322371: DOOR GUIDE, TOP

Pos nr	Part number	Description	Weight in kg
4	3322376	DOOR GUIDE FRONT MGR	0.001
4.01	3322377	ANGLE PLATE
4.02	3322370	SUPPORTING ROLLER
4.02.01	3322536	BEARING PIN	0.01
4.02.02	3322537	SUPPORTING ROLLER	0.16
4.02.03	3322691	PLAIN BEARING	0.005
4.02.04	3322692	THRUST WASHER	0.001
4.02.06	3322538	ROLLER	0.01
4.02.07	3322539	SWIVEL BLOCK
4.05	3322540	BEARING PIN FOR SWING BLOCK	0.001
5	3322372	DOOR GUIDE BELOW MGR	0.001
5.01	3322373	SUPPORTING ANGLE
5.02	3322374	PLATE
5.07	3322375	PLATE WITH TAP HOLES
6	3322371	DOOR GUIDE, TOP	0.4
6.01	3322542	SUPPORTING ANGLE
6.02	3322543	ROLLER	0.01
6.03	3322544	BEARING PIN	0.015
