Parts for Grove GMK 7450, Figure 6978100611-ETL:

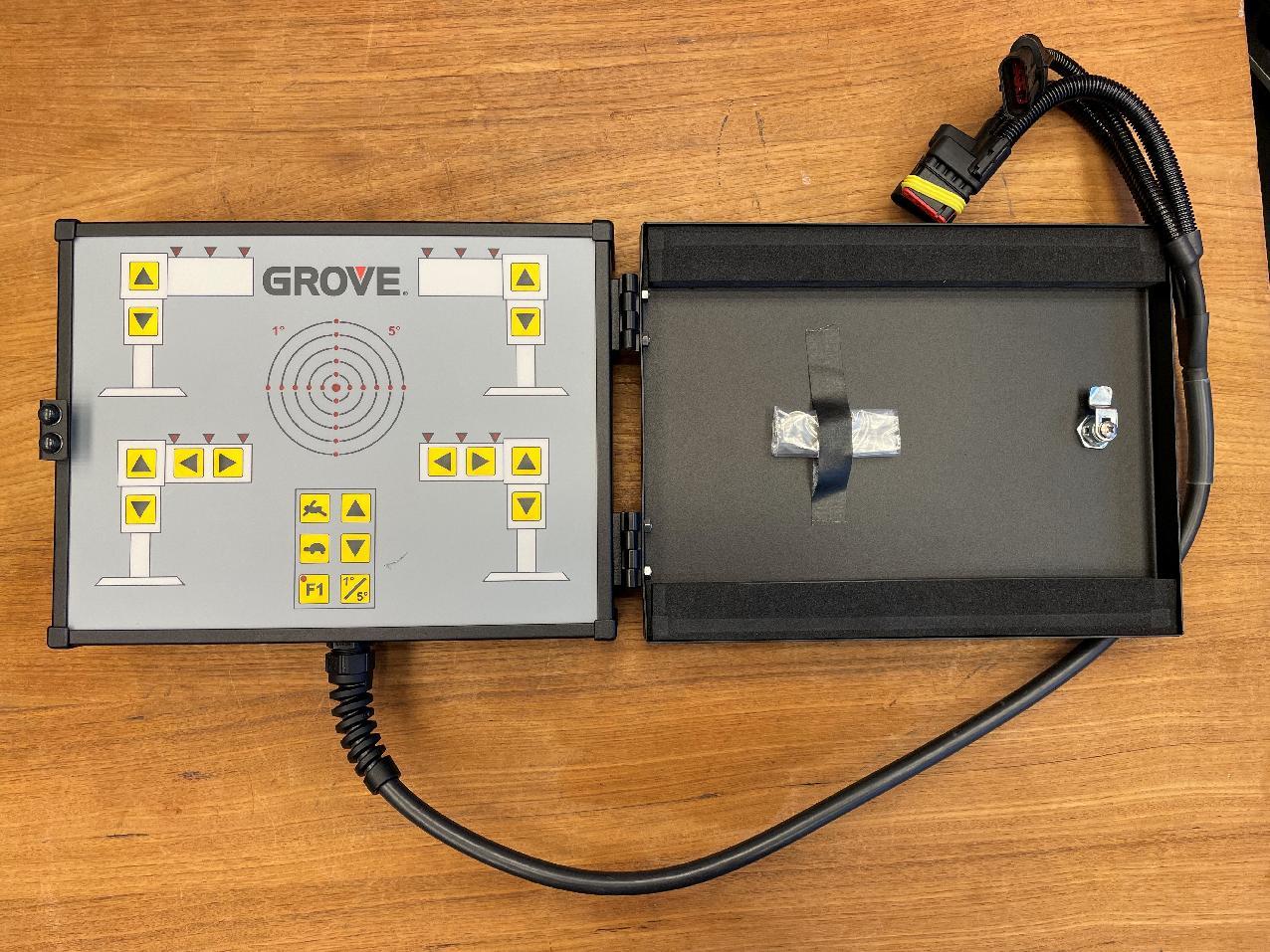

Part Number 3320600: CONTROL UNIT, OUTRIGGERS
Pos nr Part number Description Weight in kg
1 6512100483 ROPE 0.001
1.03 3041112 PUR-CABLE (PER METER) 0.05
1.06 3317913 SEAL 0.005
1.10 2318067 RESISTOR 0.005
2 3320600 CONTROL UNIT, OUTRIGGERS 3.184
3 6246100227 CABLE HARNESS, BUMPER (1.5M)
3.01 2212600 CONTROL LINE (PER METER) 0.088
3.02 2310039 CONNECTION
4 6246100228 CABLE HARNESS, BUMPER (5M)
5 1369991 PROFILE LAMP 0.110
5 3008825 LIGHT 0.190
5.01.01 2317650 LIGHT HOUSING 1
5.02 0438897 BULB (24 V, 4 W) 0.005
6 3008848 SIDE CLEARANCE MARKER LIGHT 0.100
6.01 2315517 LAMP
6.01.01 2317732 SPARE LENS
6.01.02 2317733 BASE UNIT WITH BULB 0.3
6.01.03 2317734 ANGLE SLEEVE
7 3008826 E.-PARTS SIDE CLEARANCE 0.155
8 3315267 LEVEL INDICATOR 0.64
9 3317911 CONTROL UNIT (ESX) 2.700
10 1738015 ELECTRICAL PARTS FOR REAR LIGHT
10.01 1680283 REAR LIGHT (MULTI-CHAMBER) 0.970
10.01.02 2317648 GLASS FOR LAMP 0.360
10.01.03 0439055 BULB (24 V, 21 W) 0.02
10.01.04 1207144 BULB 0.005
10.02 1680284 REAR LIGHT (MULTI-CHAMBER) 1
12 6176100246 TOGGLE SWITCH UNIT, LOCKING SYSTEM
13 7581100009 TRIPLE LIGHT STRIP
14 7872100060 EMERGENCY SWITCH
15 2257016 PROXIMITY SWITCH 0.050
16 6512100513 CABLE HARNESS, OUTRIGGER CONTROL SYSTEM
16.03 2212602 CONTROL LINE (PER METER) 0.1
16.13 7531000569 HOLDER, FUSE 57
16.14 7482000031 FUSE 0.014
16.17 1148080 PLUG CONNECTOR 0.025
17 7246002842 CABLE - MULTI-CONDUCTOR,
17 6512100477 CABLE HARNESS, ENGINE-GEAR
17.16 3041342 STAR QUAD CABLE
17.22 7246003369 CONTROL LINE(METER WARE)
17.35 2212605 CONTROL LINE (PER METER) 0.29
17.36 8594000019 FLEXGARD - .250" I.D. 0.102
17.38 8594000005 FLEXGARD -.413" T D 0.282
18 6512100480 CABLE HARNESS, HEATING SYSTEM
18.03 2212604 CONTROL LINE (PER METER)
18.09 3007824 PLUG WITH CABLE
19 6512100404 CABLE HARNESS, BUMPER LIGHTING
19.07 1067984 CONTROL LINE (PER METER) 0.068
20 6176100264 ELECTRICAL PARTS FOR TERMINAL BOX 1
21 6176100243 ELECTRICAL PARTS FOR TERMINAL BOX 2
22 6176100265 ELECTRICAL PARTS FOR TERMINAL BOX 3
23 6512100514 CABLE HARNESS, SLIP RING BODY
24 6512100512 CABLE HARNESS, STEERING UNIT
25 7872100063 TEMPERATURE TRANSMITTER
43 7753100019 SLIP RING BODY
44 2255888 THREADED BUSH 0.005
45 2255889 SLIDE RING 0.005
48 1064974 TEMPERATURE SWITCH 0.240
57 6512100515 CABLE HARNESS, OPTION ENGINE
57.06 2314213 PLUG 0.4
59 2251373 DIGISOUND SIGNAL TRANSMITTER 0.055
60 3041686 COOLING WATER LEVEL SENDER 0.28
* Selected parts are automatically added to your RFQ list *
3320600 Grove GMK 4075 CONTROL UNIT, OUTRIGGERS
