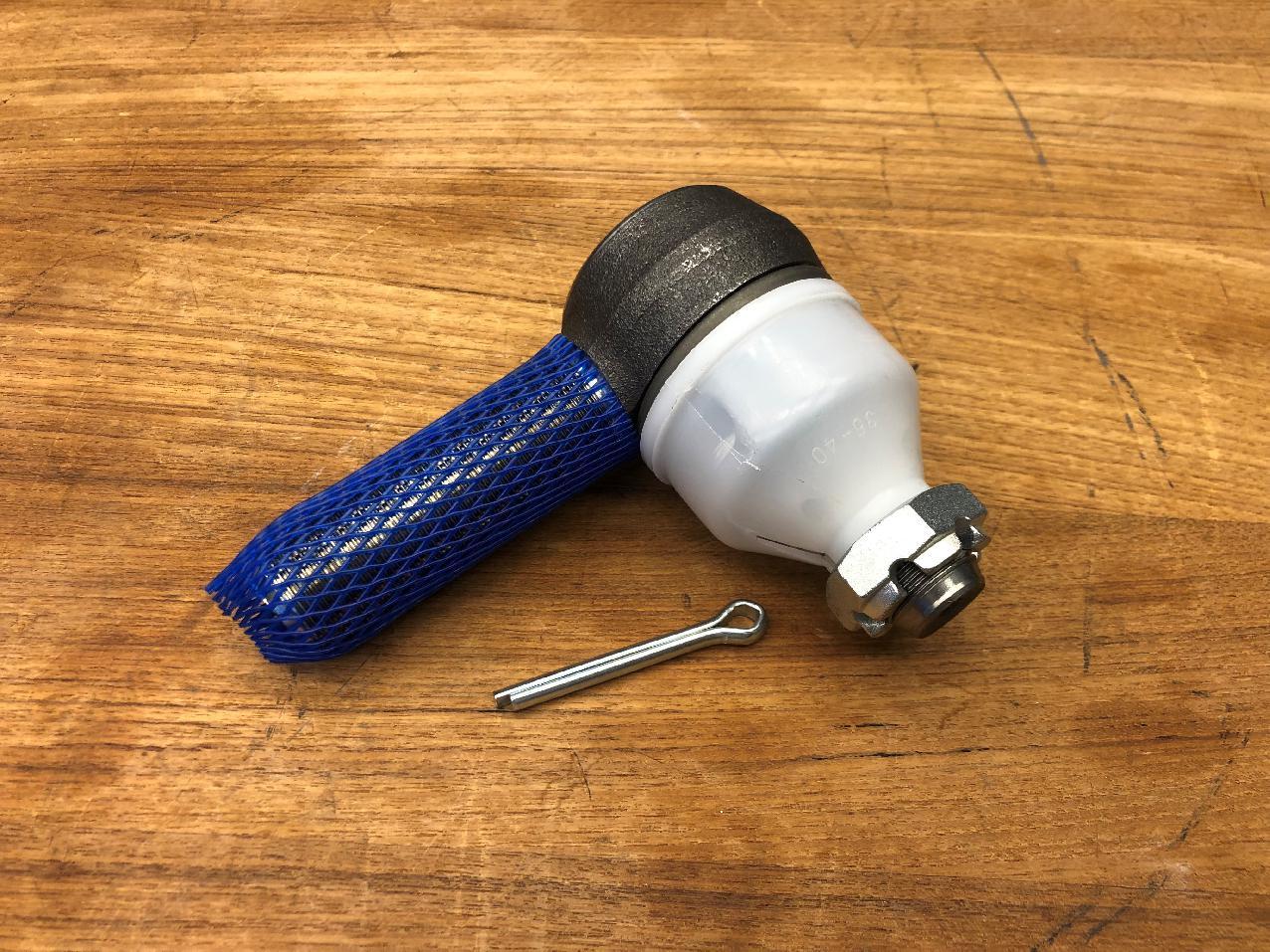

Grove 1065009 - BALL PIVOT, RIGHT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
1065009, 01065009, 001065009

Parts for Grove GMK 2035, Figure 2305969-ETL:
Part Number 1065009: BALL PIVOT, RIGHT

Pos nr	Part number	Description	Weight in kg
1	2287982	STEERING ROD 151
1.01	2288037	CHANGE-OVER LEVER 151
1.02	2255404	RETAINING RING	2.65
1.05	2251465	SPLIT SEAL	0.002
2	2287984	STEERING ROD 152
2.01	2288039	CHANGE-OVER LEVER 152
3	2287990	STEERING ROD 155
3.01	2288045	CHANGE-OVER LEVER 155
4	2287992	STEERING ROD 156
4.01	2288047	CHANGE-OVER LEVER 156
5	2310015	STEERING HEBEL
6	2310016	STEERING LEVER	22.2
6.03	1686516	BALL PIVOT, RIGHT	3.5
6.04	1686517	BALL PIVOT, LEFT	3.5
7	1925256	STEERING LEVER
7.04	1065009	BALL PIVOT, RIGHT	1.620
7.05	1064245	BALL PIVOT, LEFT	1.620
7.20	2316711	JOINT	0.780
7.21	2316712	BALL JOINT LEFT THREAD	1.770
8	1930198	STEERING LEVER	9.600
10	2212202	BALL PIVOT	2.400
11	3003001	STEERING SYSTEM FOR SUPERSTRUCTURE	3.500
15	2313228	STEERING SHAFT	3.65
5090	1066826	BALL PIVOT	3.28
