Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3036221-ETL (Grove GMK 2035 GEAR BOX)
GMK (Grove GMK )
Also known as:
3046285, 03046285, 003046285
Parts for Grove GMK 2035, Figure 3036221-ETL:

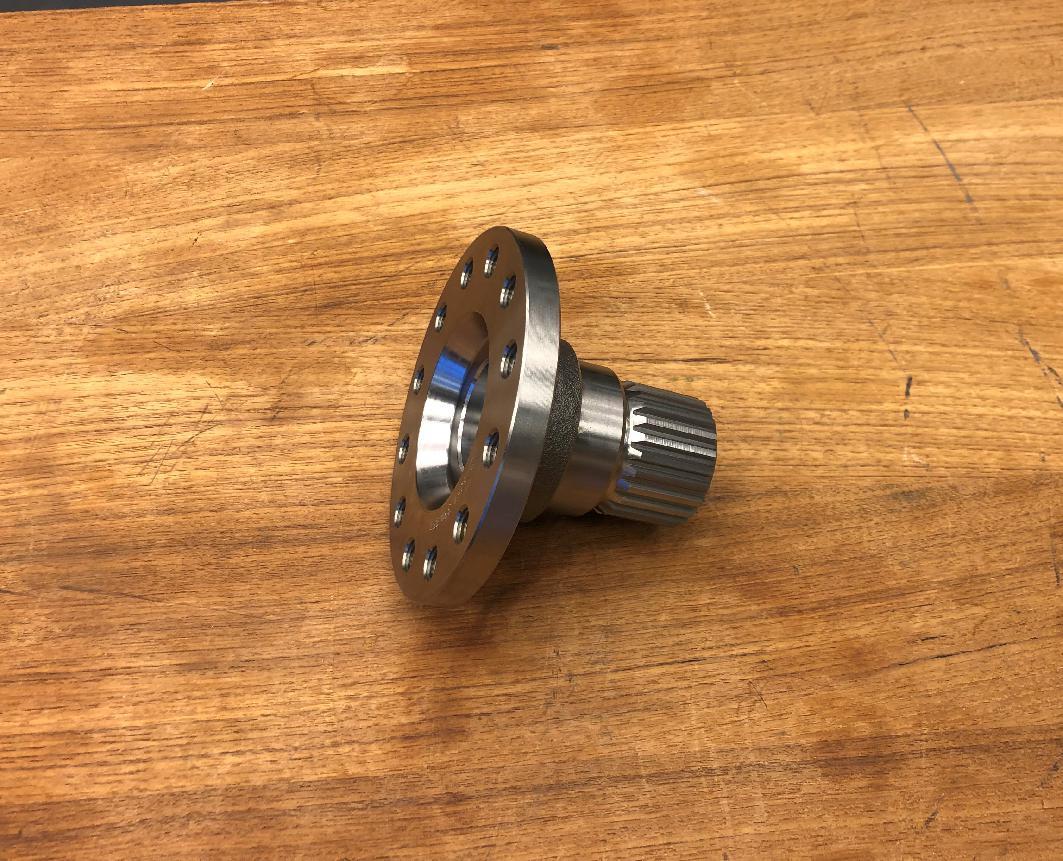

Part Number 3046285: DRIVE SHAFT
Pos nr Part number Description Weight in kg
1 3046284 DRIVE FLANGE 1.920
2 3046285 DRIVE SHAFT 2.222
3 3046286 DIAPHRAGM 1
4 3046287 BALL BEARING 0.475
5 2214606 BREATHER 0.01
6 3319190 AUXILIARY DRIVE
6.01 3319191 CONTROL LEVER 0.001
6.02 1375607 WASHER
6.03 3319192 CONTROL LEVER
6.05 3319193 WASHER
6.06 1929036 O-RING 128 X 3 0.005
6.08 1684047 ROTARY SHAFT SEAL 0.005
6.09 3046289 BALL BEAR ING
7 3046288 ROLLER BEARING
8 3319194 HOSE
10 2312534 O-RING
11 2314756 BALL BEARING
12 2252776 RADIAL SEAL RING VITON
13 3046290 SEALING RING
14 3046291 GASKET
15 3046292 GASKET
16 3046293 GASKET
17 3046294 GASKET
18 3046295 GASKET
19 3046296 STRAINER
20 3046297 GASKET
21 3046298 GASKET
22 3046299 ÖILLEAD RING
23 3046300 KABEL HARNESS
25 3046301 COVER
27 2312339 SOLENOID VALVE 0.001
28 3046303 PRESSIJRE REGULATOR
29 2314773 FILTER 1.120
30 3046304 RADIAL PISTON PUMP
31 2315570 O-RING
32 3046307 PULSE TRANSMITTER 0.001
33 3046308 INDUCTIVE TRANSMITTER
34 3046309 SPEED SENSOR
36 3046310 SPRING POT
37 1924521 PLAIN COMPRESSION RING
38 1931097 FILTER ELEMENT
39 3046311 GASKET
40 3046312 O-RING
41 3046313 SWITCH
42 2314769 GASKET
43 1203817 PRESSURE SPRING
44 3046314 LOCKING PIN
45 0559821 O-RING 0.005
46 3046316 O-RING
47 3046317 PRESSURE SPRING
48 3046318 OUTER LAMELLA
49 3046319 OUTER LAMELLA
50 3046320 INNER LAMELLA
51 3046321 ENDPLATE
52 3046324 NEEDLE RING
53 3046322 ROLLER BEARING
54 3046323 ROLLER BEARING
55 3046329 BALL BEARING
56 3046330 OUTER LAMELLA
57 3046331 OUTER LAMELLA
58 3046332 INNER LAMELLA
59 3046333 ENDPLATE
60 3046334 AXIAL NEEDLE RING
61 3046335 NEEDLE RING
63 3046337 DISC SPRING
64 3046338 NEEDLE RING
65 3046339 GASKET
66 1573307 O-RING
67 3046340 ROLLER BEARING
68 3046341 CONVERTER 0.001
69 3046342 GASKÈT
70 3046343 PRÈSSURE SPRING
71 3046344 HOSE LINE
72 3046345 HOSE LINE
73 3046346 HOSE LINE
78 2211540 O-RING
79 3046349 VALVE
80 3046350 PISTON
81 3046351 PRESSURE SPRING
82 3046352 PRESSURE PLATE
83 1931169 O-RING 0.008
84 3046353 NEEDLE BEARING 0.175
85 3046354 SHAFT SEAL 0.180
86 3046355 GASKET
88 3046357 PLAIN BEARING BUSH
89 3046358 FILTER HEAD
90 1684608 O-RING
91 2311610 GEAR SELECTOR SWITCH 0.7
92 3046036 PLUG
93 1924992 TOGGLE SWITCH 0.001
94 3046022 CONTROL UNIT 0.001
95 2318358 DISPLAY 0.001
99 3044441 SEALING RING
