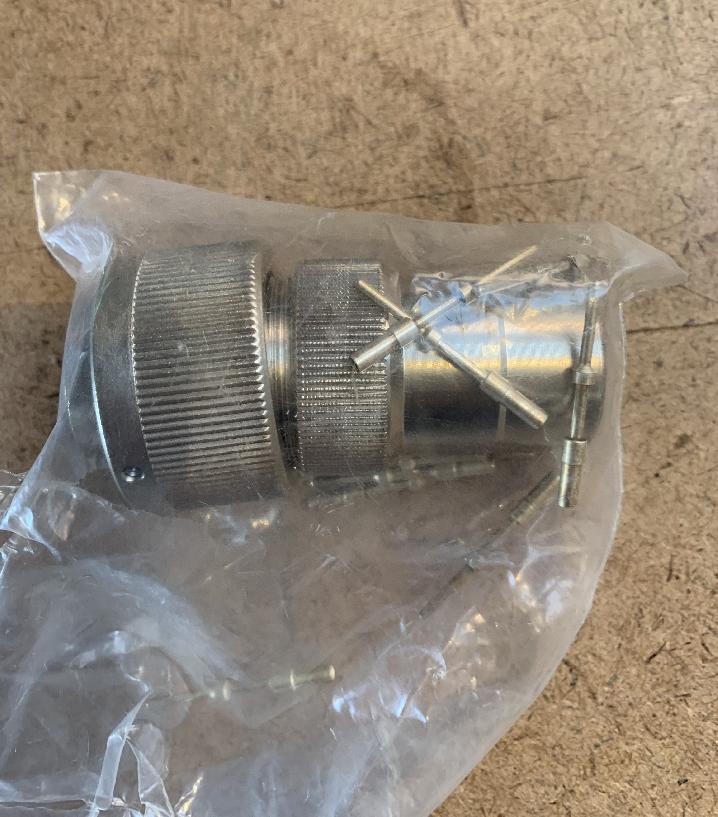

Grove 2310586 - PLUG 14 PINS

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
2310586, 02310586, 002310586

Parts for Grove GMK 2035, Figure 3054139-ETL:
Part Number 2310586: PLUG 14 PINS

Pos nr	Part number	Description	Weight in kg
1	3005660	ELECTRICAL PARTS LIGHTING
1.01	3064323	ELECTRICAL PARTS, LIGHTING TAIL	0.001
1.01.01	3064321	CABLE HARNESS, LIGHTINGTAIL
1.01.02	0552727	TAIL LAMP	0.08
1.01.02.01	0556330	GLASS FOR LAMP	0.030
1.01.03	0438514	BULB	0.001
1.01.05	2301771	RETAINER	0.001
1.02	3064324	ELECTRICAL PARTS, LIGHTING TAIL	0.001
2	3011049	CABLE HARNESS, BOOM-INTERFACE	0.001
3	2306471	ELECTRICAL PARTS, TERMINAL BOX VI
3.01	2215510	JUNCTION BOX	0.26
4	2304173	CABLE HARNESS, SLIP RING	0.001
4.01	2310585	PLUG 35 PINS	0.280
4.07	2310589	EXTENSION
5	2304175	E.- PARTS, TURNTABLE
6	2306477	ELECTRICAL PARTS, TERMINAL BOX V4
6.39	3007824	PLUG WITH CABLE
7	3012873	ELECTRICAL PARTS FOR TERMINAL BOX V2
8	2305684	CABLE HARNESS, SLIP RING	0.001
8.05	2310586	PLUG 14 PINS
9	2305686	CABLE HARNESS, SLIP RING	0.001
9.06	0553051	EXTENSION	0.02
9.11	2310587	STECKER	0.240
