Parts for Grove GMK 5100, Figure 3009762-ETL:

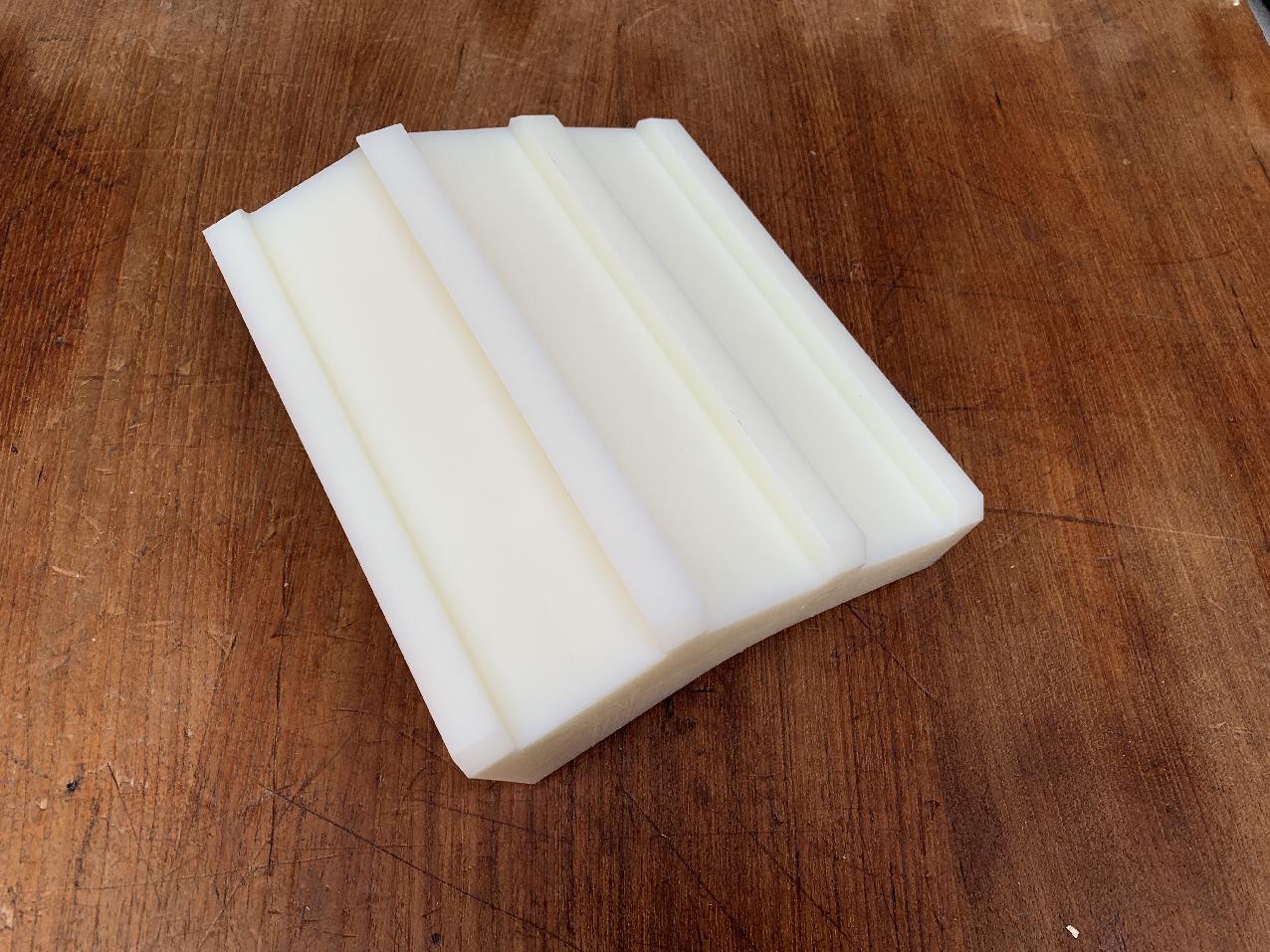

Part Number 3054915: SLIDING PIECE
Pos nr Part number Description Weight in kg
4 3054913 SLIDING PIECE 1.73
7 3054916 SLIDING PIECE 1.3
10 3054919 SLIDING PIECE 0.86
13 3054922 SLIDING PIECE 0.89
22 3054938 SLIDING PIECE 3.5
23 3054940 SLIDING PIECE 2.6
24 3054942 SLIDING PIECE 1.8
37 3004192 GUIDE PIN 0.024
49 3054959 STRIPT= 18 0.16
105 3055161 LINK 0.89
107 3005889 LEVER 0.93
108 3005890 RETAINER 0.27
109 3005891 AXLE 0.03
110 2316989 HEADED BUSH 0.005
111 1927056 MEGI-BUFFER 0.055
111 3004485 MOUNTING PIECE SLI 0.001
111 3004487 MOUNTING PIECE 0.598
115 3054901 GUIDING PIPE
116 3054905 LOCKING FIN
117 3054902 GUIDING PIPE
118 3054906 LOCKING PIN
119 3054903 GUIDING PIPE
120 3054907 LOCKING PIN
124 3055151 SLIDER 0.75
125 3055148 DERRICKING CYLINDER HEAD AXLE 27.9
138 2318963 SPACER RING 0.89
141 3055158 BOOM FOOT AXLE
142 3055156 LOCK
143 3055157 COVER 2.3
144 2318956 PRESSURE SPRING 0.53
161 3005959 COVER
163 3054927 ADJUSTMENT SCREW
164 3054928 ADJUSTMENT SCREW
165 3012296 LOCK
166 3055195 PIN GUIDE 1.4
167 3055194 ADJUSTMENT PLATE
168 3055193 ADJUSTMENT PLATE
169 3055191 PIN 6.6
171 3012291 LOCK 5.2
172 3055190 WEDGE 2.200
173 3055192 WEDGE 1.500
187 1065823 LOCKING CAP (DIAMETER125) 0.220
193 0550192 PIN 0.02
194 0432175 FORK HEAD 0.070
196 2316990 THREADED PIN 0.03
211 2311781 PLUG SCREW COUPLING 0.01
212 2311780 ANGLE MALE COUPLING 0.140
213 2251403 EXTENSION PIECE 0.01
214 3004195 LUBRICATION HOSE 0.060
215 3004196 LUBRICATION HOSE 0.050
216 2318987 LUBRICATION HOSE 0.001
217 2318988 LUBRICATION HOSE 0.001
224 3055188 LOCKING BOLT 0.05
226 3004102 MOUNTING PIECE 0.53
227 1678177 ROLLER TYP NOZZLE 0.490
236 2318989 STOP
237 2318990 STOP
238 2318991 STOP
246 3054926 LOCK
247 3054925 LOCK
248 3054924 LOCK
249 3054923 LOCK
276 1929389 SUPPORTING ROLLER 2.9
276 3046743 MEGI-BUFFER 0.07
276 3055583 ROPE CATCHING BRACKET 7.600
276 3055579 ROPE CATCHNG BRACKET
276 2256552 LOCK 0.032
276 3055569 RETAI N ER
280 3055567 LOCK
500 3054934 SLIDER 0.3
500 3319033 SLIDING PIECES AND PROTECTION STRIPS 0.001
500 3054914 SLIDING PIECE 1.93
500 3054915 SLIDING PIECE 1.23
500 3054931 PROTECTION STRIP 3.9
500 3012470 SLIDING PIECE 0.160
501 3012469 SKID/SHOE 0.09
501 3319034 SLIDING PIECES AND PROTECTION STRIPS 0.001
501 3054917 SLIDING PIECE 1.41
501 3054918 SLIDING PIECE 0.97
501 3054932 PROTECTION STRIP 3.4
501 3054936 SLIDING PIECE 1.25
502 3319035 SLIDING PIECES AND PROTECTION STRIPS 0.001
502 3054920 SLIDING PIECE 1.07
502 3054921 SLIDING PIECE 0.85
502 3054933 PROTECTION STRIP 3.1
502 3054937 SLIDING PIECE 1.160
502 3012467 SLIDING PIECE 0.070
504 3319037 GUIDES AND SLIDING PIECES 15
504 3054947 GUIDE 5.410
504 3012300 GUIDE 2.996
504 3012299 GUIDE 1.3
504 3012297 SLIDING PIECE 2.6
504 3012278 GUIDE 3.2
504 3054948 SLIDING PIECE 2.36
505 3319038 SLIDING PIECES 0.001
505 3054911 SLIDING PIECE 2.29
505 3054912 SLIDING PIECE 1.370
505 3054930 PROTECTION STRIP 4.2
505 3054935 SLIDING PIECE 1.22
501170 1370278 ROLLER 0.26
