3009767-ETL (Grove GMK 5100 ATTACHMENT PARTS)
3162633-ETL (Grove GMK 5130-2 )
GMK (Grove GMK )
80010299 (Grove RT 9150E )

Also known as:
3053778, 03053778, 003053778

Parts for Grove GMK 5100, Figure 3009767-ETL:

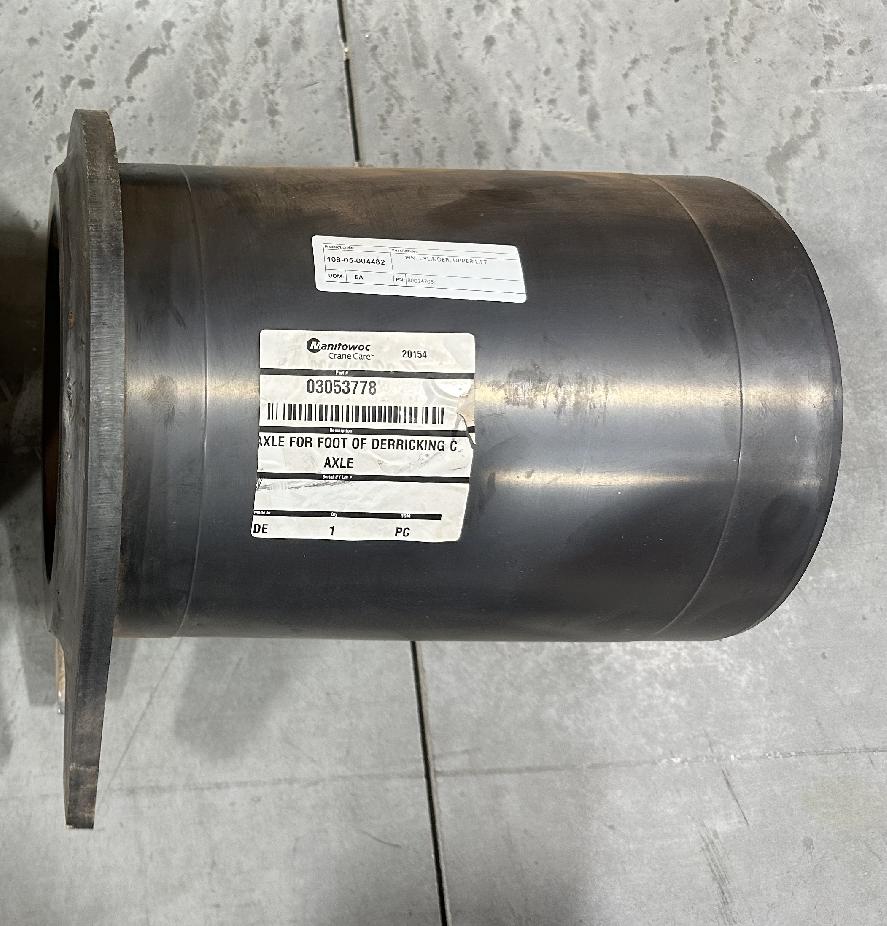

Part Number 3053778: DERRICKING CYLINDER FOOT AXLE

Pos nr	Part number	Description	Weight in kg
2	3012665	COVER
5	2212497	HINGE	0.142
5	3053788	STORAGE BOX
5	3056357	STORAGE BOX
5	3056358	COVER
5	2212493	COVER MOUNTING PIECE	0.450
10	3053789	BUILT IN BEARING
11	0552513	TONGUE LOCK	0.001
11	3053790	COVER PLATE
12	3056363	COVER	6.1
14	3053792	STORAGE BOX
14	3055962	STORAGE BOX
14	3055963	COVER
14	3055964	COVER
014.07.01	3055965	COVER
014.07.1.3	2212432	HANDLE	0.090
16	3012583	HOLDER	5.06
23	3056018	INTERMEDIATE PLATE	1.9
24	1683323	THREADED ROD (METER WARE)
25	2212485	RETAI NER
35	3012180	FRAME
36	3005784	GRID	1.8
48	3010710	RETAI N ER
66	2311769	PIN	0.060
67	1147344	COTTER PIN	0.054
68	3053778	DERRICKING CYLINDER FOOT AXLE	31
69	3318008	BUSH	0.935
70	3056372	HAND
76	3056362	SUPPORT
