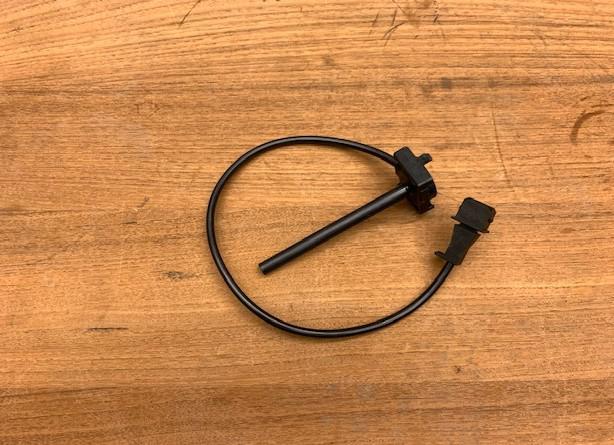

Grove 3316229 - TRANSMITTER FOR COOLING WATER LEVEL INDICATOR

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3316229, 03316229, 003316229

Parts for Grove GMK 5100, Figure 3056727-ETL:
Part Number 3316229: TRANSMITTER FOR COOLING WATER LEVEL INDICATOR

Pos nr	Part number	Description	Weight in kg
1	2315682	CHARGE AIR COOLER
2	2315683	FAN HOOD	2.872
3	2315684	RADIATOR
4	3316228	LOCK	0.05
4	2315685	FLUID RESERVOIR	6
4	3316229	TRANSMITTER FOR COOLING WATER LEVEL INDICATOR	0.28
4	3316230	BOLT
4	3316231	SUPPORT
5	2315686	COMPRESSOR HOSE	0.500
6	2315687	CHARGE AIR HOSE	0.62
7	2315688	RUBBER BUFFER	0.001
8	2315695	RETAINER
9	2315696	RETAINER
10	2315697	RETAINER
12	3041954	CLIP	0.807
19	3010575	SPACER PLATE
20	3010574	SPACER PLATE
26	3317741	SHAPED PART	0.010
27	3317742	HOSE	0.380
28	1369357	HOSE (METER WARE)
29	2315690	HOSE	1.440
30	2315689	HOSE	0.070
31	3317743	HOSE	0.160
32	3317744	HOSE	0.600
33	2309777	HOSE	1.500
34	2254967	SHAPED HOSE	0.680
39	3056747	AIR BAFFLE PLATE
40	3056748	AIR BAFFLE PLATE
41	1682493	COCK	3
46	3066346	RADIATOR HOLDING
47	3066347	RADIATOR HOLDING
