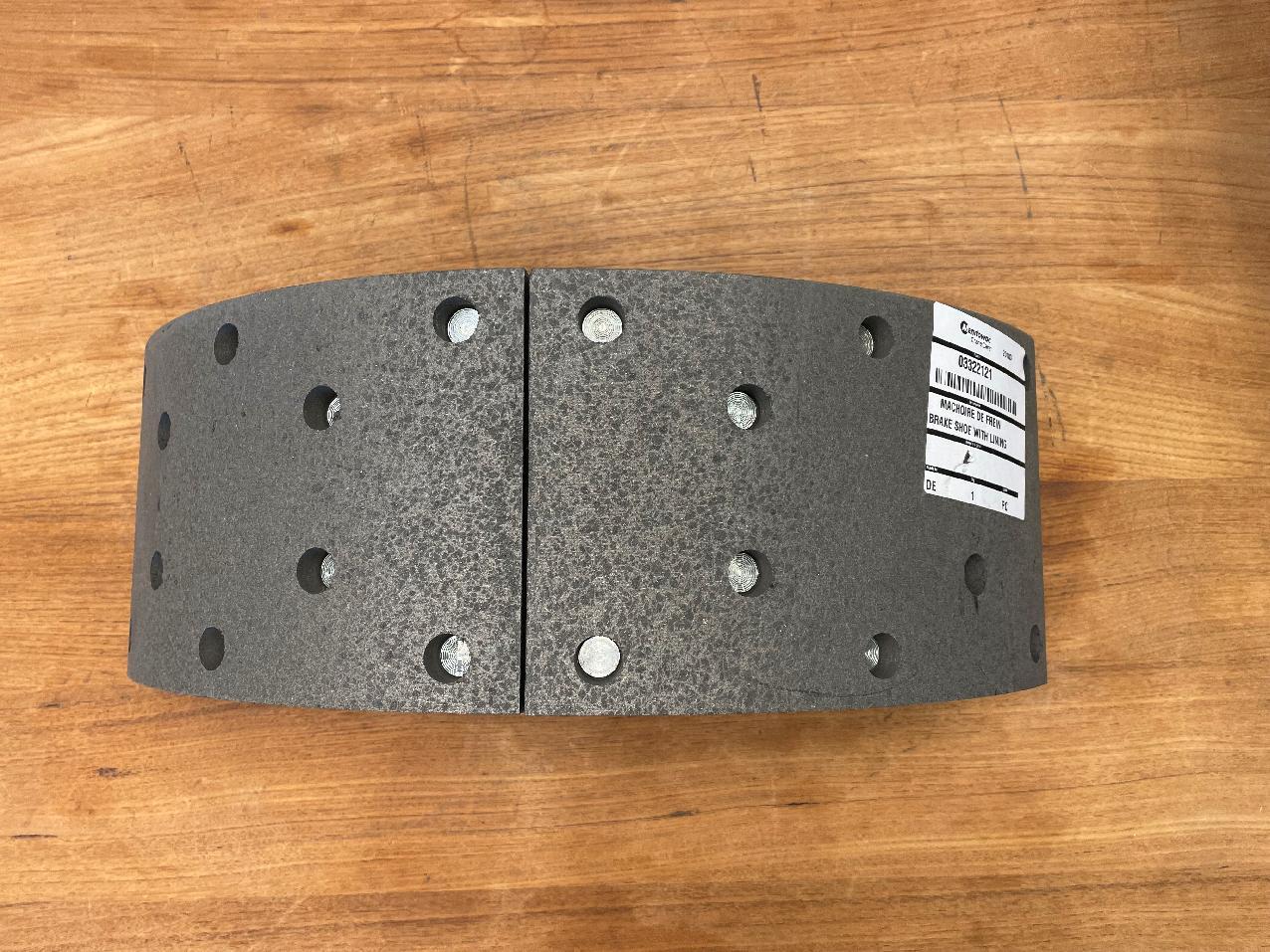

Grove 3316896 - BRAKE SHOE WITH LINING EXCHANGE 500X120 MM ?????

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3316896, 03316896, 003316896

Parts for Grove GMK 5100, Figure 3319197-ETL:
Part Number 3316896: BRAKE SHOE WITH LINING EXCHANGE 500X120 MM ?????

Pos nr	Part number	Description	Weight in kg
1	2315390	SCREW PLUG	33
2	3319198	BRAKE ANCHOR PLATE
3	2315392	BRAKE COVER PLATE	3.28
4	2315393	TENSION SPRING	0.13
6	3316896	BRAKE SHOE WITH LINING EXCHANGE 500X120 MM ?????	9.60
7	2315395	EXPANDER UNIT	5.16
8	1927225	NUT	0.185
9	3316921	SAFETY SCREW
