Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3317112, 03317112, 003317112
3317112, 03317112, 003317112
Parts for Grove GMK 4075, Figure 3057457-ETL:

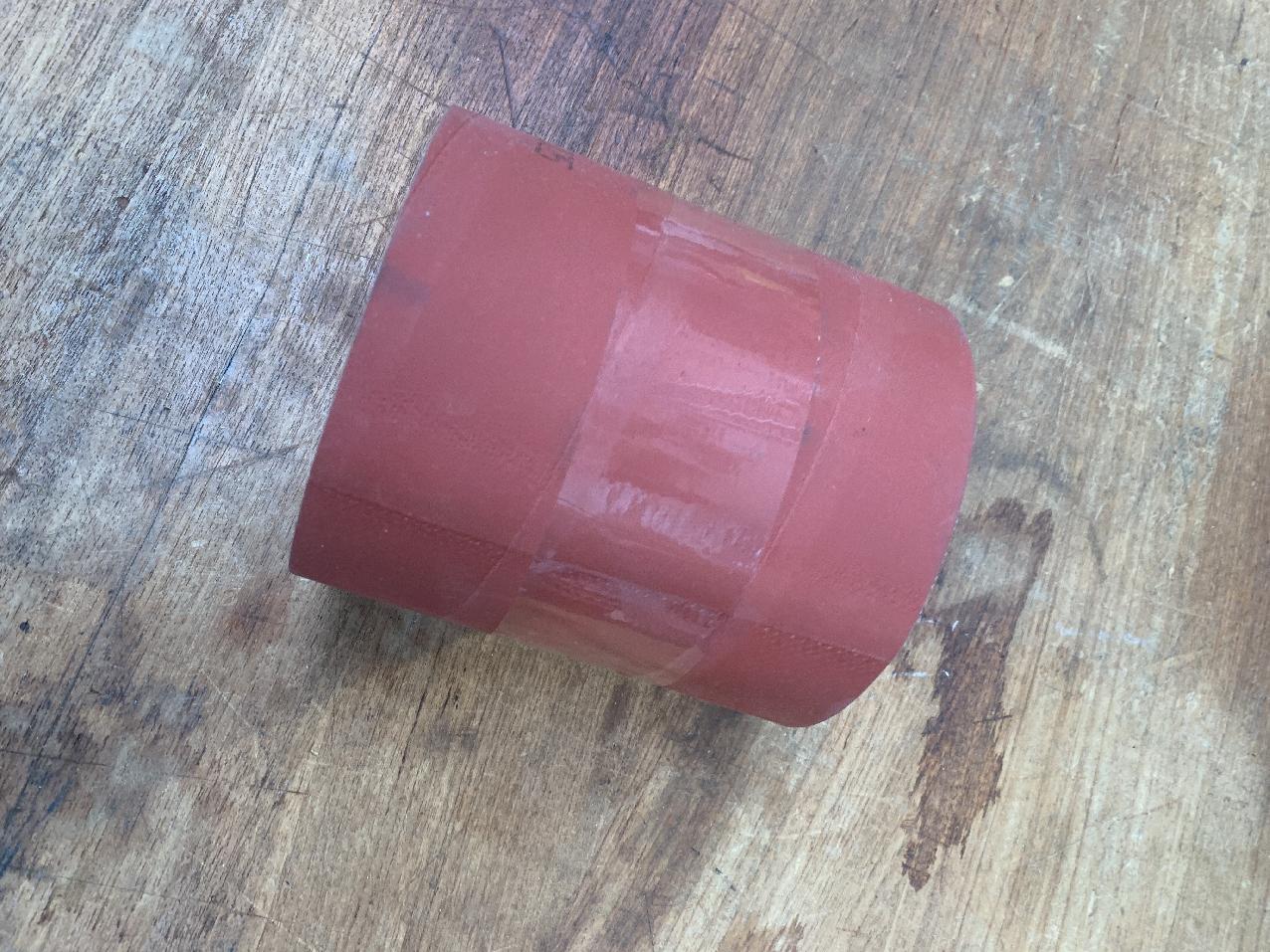

Part Number 3317112: HOSE SLEEVE
Part Number 3317112: HOSE SLEEVE
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 2 | 3057484 | COMPRESSOR PIPE 1 | 4 |
| 3 | 3057485 | COMPRESSOR PIPE 2 | |
| 4 | 2315686 | COMPRESSOR HOSE | 0.500 |
| 5 | 2315687 | CHARGE AIR HOSE | 0.62 |
| 6 | 3317112 | HOSE SLEEVE | 1.47 |
| 7 | 3318699 | CLAMP | |
| 8 | 3318700 | CLAMP | 0.500 |
| 10 | 3064160 | AIR BAFFLE PLATE |
