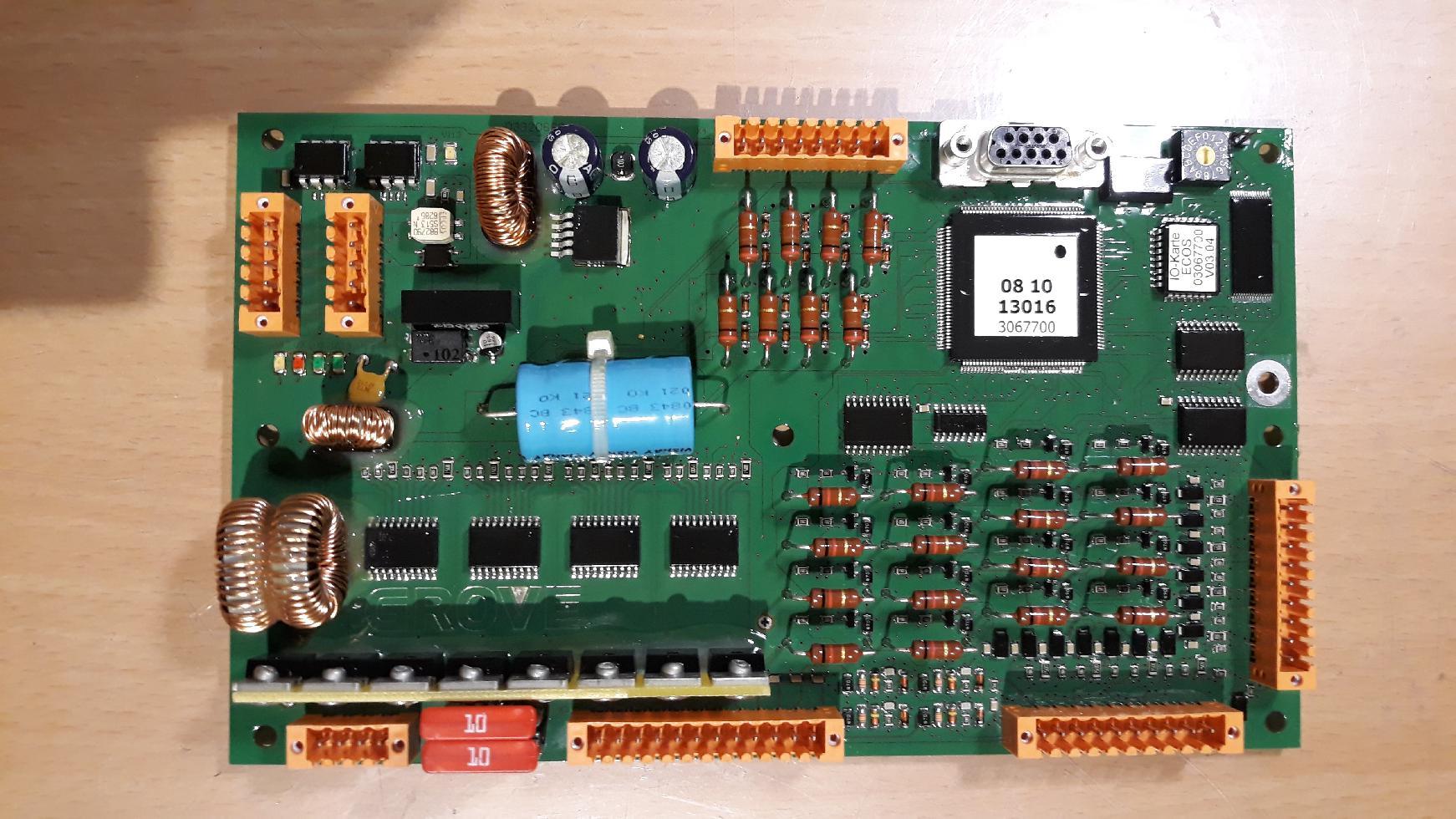

Grove 3055480 - PLATINE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3055480, 03055480, 003055480

Parts for Grove GMK 4075, Figure 3063614-ETL:
Part Number 3055480: PLATINE

Pos nr	Part number	Description	Weight in kg
1	3057806	INSTRUMENT PLATE	0.001
3	3055480	PLATINE	0.88
5	1926083	TOGGLE SWITCH	0.03
6	2210198	TOGGLE SWITCH	0.160
7	2214556	TOGGLE SWITCH	0.18
8	2210399	TOGGLE SWITCH	0.160
10	2210349	BULB	0.1
10	1922243	PILOT LAMP	0.015
13	2310810	INSERT ARROW (UP)	0.005
14	2310811	INSERT ARROW (DOWN)	0.01
15	2310700	INSERT LEVEL 1	0.001
16	2310699	INSERT ALL UP / DOWN	0.001
17	2309372	INSERT UP/DOWN. LIGHT YELLOW	0.010
18	2215485	SYMBOL FOR REAR AXLE STEERING	0.001
19	2210053	INSERT DIFFERENTIAL LOCK	0.001
20	1929115	INSERT ENGAGE 2ND AXLE	0.001
26	1922250	INSERT WITHOUT SYMBOL	0.005
27	1922244	COVER	0.005
35	2252665	SWITCH	0.160
36	1682103	KEY SWITCH	0.200
37	1682104	INITIATING SWITCH	0.03
47	2212518	RMP-PIEZO SIGNAL	0.01
53	2250608	SYMBOL FOR 3RD AXLE UNLOCKING	0.001
55	3054711	INSERT	0.001
64	3320092	SWITCH (ADJUSTING MIRROR)	0.2
