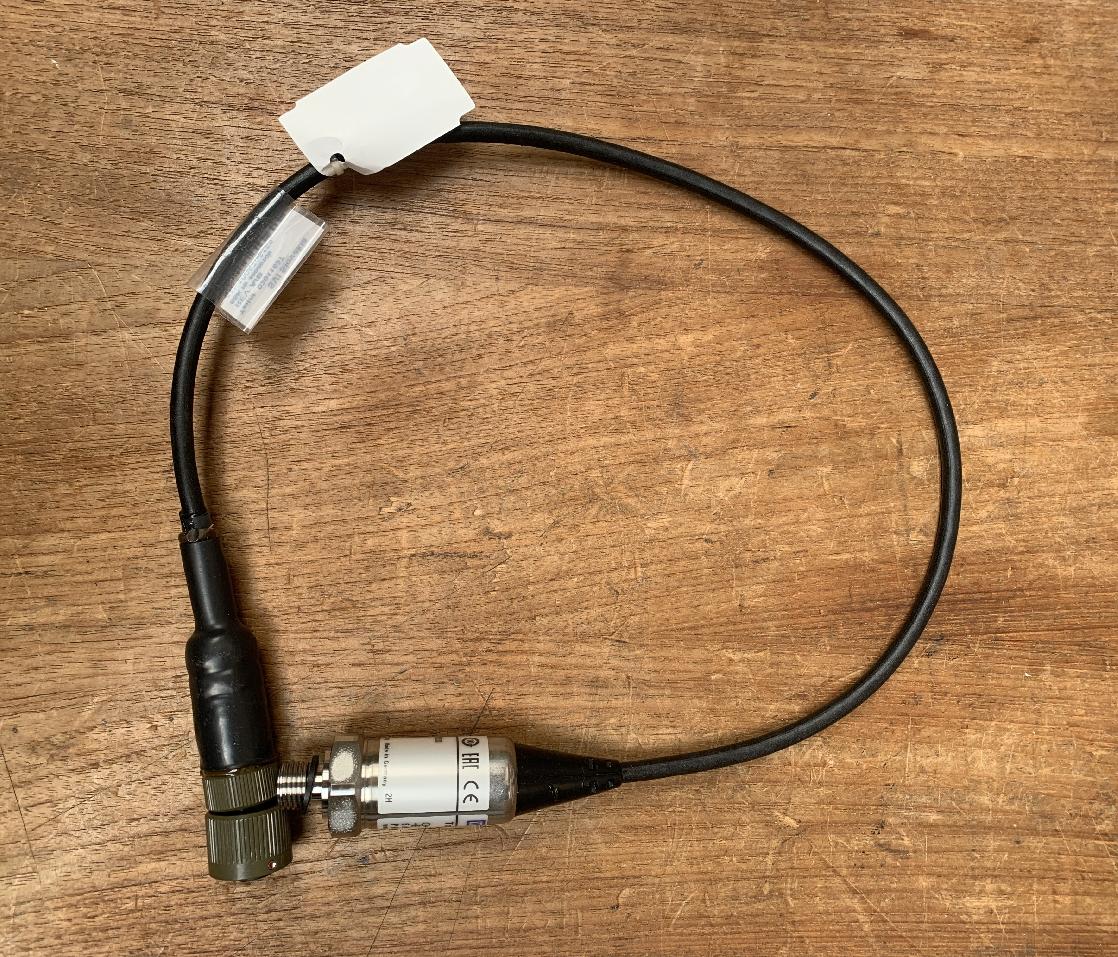

Grove 3011537 - CABLE HARNESS, OUTRIGGER PRESSURE SENSOR

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3011537, 03011537, 003011537

Parts for Grove GMK 5180, Figure 3007101-ETL:
Part Number 3011537: CABLE HARNESS, OUTRIGGER PRESSURE SENSOR

Pos nr	Part number	Description	Weight in kg
1	3011538	E.- PARTS, INCLINATION INDICATOR AND SUPPORT PRESSURE
2	3011539	E- PARTS, INDICATOR OF INCLINATION AND SUPPORT PRESSURE RIGHT
3	3011524	CABLE HARNESS, SLIDING SUPPORT	1.363
3.01	3004637	THREEFOLD HOSE	8
3.02	3041112	PUR-CABLE (PER METER)	0.05
3.03	3041587	WALL PLUG BOX	0.160
3.04	3041139	CABLE CONNECTION	0.02
4	3011537	CABLE HARNESS, OUTRIGGER PRESSURE SENSOR	0.350
4.01	2318330	PRESSURE SWITCH	0.390
4.02	2255219	PLUG	0.030
5	1923685	USIT-SEALING RING	0.005
6	3056457	MOUNTING PIECE
