Grove 3011287 - ROOF WINDOW

Pos nr	Part number	Description	Weight in kg
1	3009911	CRANE OPERATORS CAB, SHELL	57
2	2304134	SLIDING DOOR	16.5
3	3011261	FRONTSCREEN	12
4	1678463	CLAMPING STRIP (YARD GOOD)	0.5
5	0552263	CLAMPING STRIP
6	2305256	FRONT DOOR	4.1
7	2311061	PROFILED SEAL (METER WARE)	0.19
8	3053014	SWITCH BOX COVER	0.19
9	2305509	COVER	0.5
9	2312766	WIPER ARM	0.206
10	2313261	RAIL	2.3
12	2217831	HOSE (PER METER)	0.04
13	2311056	SIDE PANE	0.001
14	3008215	SLIDING WINDOW	0.001
15	2311062	FASTENER	0.32

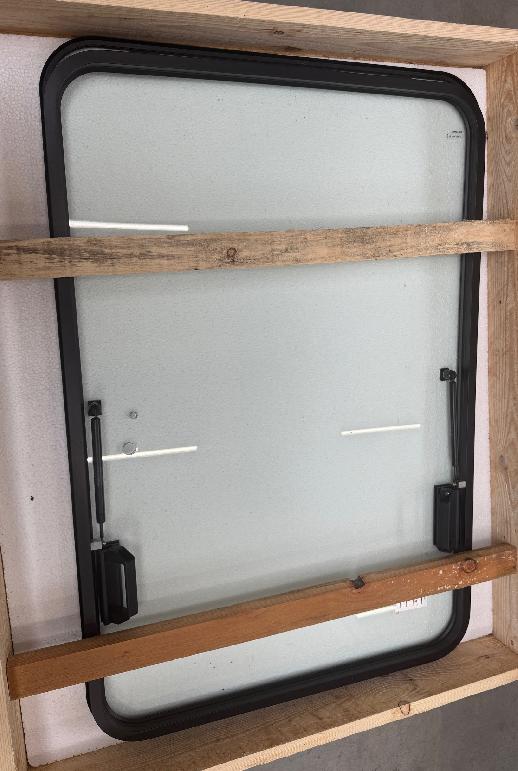

16	3011287	ROOF WINDOW	65
16.01	3046426	PANE WITH PROTECTION FRAME	58
16.02	2257507	WINDOWS GRIP	0.001
16.03	2257613	CYLINDER	0.124
16.04	3044877	RUBBER PROFILE	0.6
17	2311063	CLAMPING STRIP (METER WARE)	0.65
18	3056742	WIPER MOTOR CPL.	2.560
18.01	3317529	WIPER MOTOR	3.060
20	2312767	WIPER BLADE L 500	0.2
21	3041604	WATER TANK	0.48
21	3046537	PUMP
22	0434139	HOSE (METERWARE)	0.016
23	1201141	NON-RETURN VALVE	0.01
25	1926805	CLAMP	0.005
26	1926797	SPRAY NOZZLE	0.005
27	3041322	HANDLE SUPER/CAB
28	2312768	WIPER MOTOR	2.5
29	3009923	COVER
30	3011808	COVER
30.01	0436718	ALUMINIUM PLATE
30.02	3041598	AIR LOUVRES
30.05	3041599	PIN BLOCK
30.12	3045357	HANDLE MOULDING
31	3011809	CABLE CANAL
33	1926785	SPRAY NOZZLE	0.10
34	1926602	CLAMP
36	2311057	SIDE PANE	25.500
37	2210981	COAT HOOK	0.005
42	3053013	COVER
46	0550023	CABLE SLEEVE
50	2311070	REPAIR KIT	0.740
52	2311086	HINGE
53	2256904	INSULATING MATERIAL
54	2256903	INSULATING MATERIAL
55	0556879	SEALING COMPOUND
56	3046730	SUN VISOR	1.3
58	1203382	INSULATING MATERIAL
60	3012046	BUNDS	1.8
61	1928095	INSTRUMENT SUPPORT COMPLETION
61.27	2255141	DEFROSTER	0.1
61.28	2310970	NOZZLE	0.035
62	3011260	FLAP
64	3011267	FLOOR MAT
70	2312499	SNAP LOCK	0.01
71	3011264	COVER
77	1923998	HEXAGON NUT M6	0.005
83	3009916	STEP
84	3009917	TIPPING CYLINDER BEARING
90	3041876	WATER HEATER
92	2312269	CONTROL ELEMENT
93	2312270	ROTARY SWITCH	0.24
94	2312271	CONTROL KNOB	1
95	2311860	WATER VALVE	0.4
96	1680453	BOWDEN CABLE	0.280
97	3009950	HOLDING PLATE	0.02
98	3011259	CONNECTION PLATE
99	3041605	HOSE (METER WARE)
100	2250889	HOSE	0.445
101	1685204	CLAMP	0.005
102	0552521	MEGI-BUFFER
103	2312272	AIR GUIDING
104	3011266	ROD	0.1
105	0435193	ANGLE JOINT	0.02
106	3041606	HOSE HOLDER
107	2253982	AIR INTAKE GRID	0.001
108	3011815	ANGLE
111	3041319	HANDLE
115	3011830	MOUNTING PIECE
116	1056867	ROUND BUFFER
120	2314076	BLIND PLATE
125	3317530	WIPER ARM	0.2
126	3056119	INTERMEDIATE SECTION
127	3056120	LINER	0.003
129	2254479	SEAL WASHER	0.005

Pieces	Part nr.	Description	Brand
- +	3317916	SOCKET HOUSING	Grove
- +	3320704	CONTACT	Grove
- +	3318971	JUNIOR-POWER TIMER CONTACT	Grove
- +	3316088	BALL PIVOT	Grove
- +	2250889	HOSE	Grove
- +	3329822	ROUND CONNECTOR	Grove
- +	3043871	PRESSURE SPRING	Grove
- +	2251114	THROUGH TERMINAL	Krupp
- +	4212328	PLATE	Grove
- +	7049101430	SELF STEERING AXLE	Grove
- +	3011287	ROOF WINDOW	Grove
