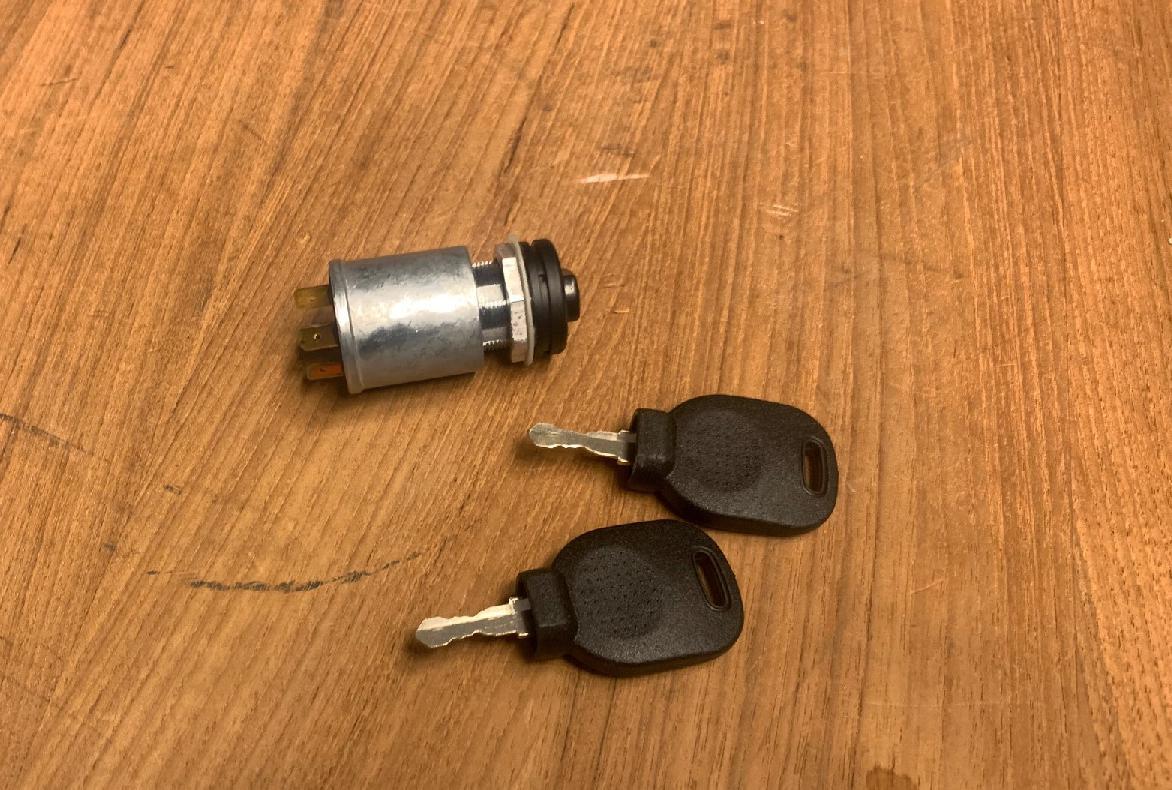

Grove 4156043 - IGNITION SWITCH

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
4156043, 04156043, 004156043

Parts for Grove GMK 6400, Figure 3203234-ETL:
Part Number 4156043: IGNITION SWITCH

Pos nr	Part number	Description	Weight in kg
1	3323659	CONSOLE WITH SWITCHES	1.32
2	1929102	TOGGLE SWITCH	0.03
3	2210198	TOGGLE SWITCH	0.160
4	1926083	TOGGLE SWITCH	0.03
8	1922243	PILOT LAMP	0.015
9	3322700	TAPPING SCREW	0.001
10	3318990	RIVET-NUT KNURLED M5X12,7	0.001
12	1922241	END PIECE	0.010
13	1922242	INTERMEDIATE SECTION	0.010
14	1922244	COVER	0.005
15	3140020	HOLDER FOR DIAGNOSTIC CONNECTOR
16	4156043	IGNITION SWITCH	0.340
17	1922265	SYMBOL WIPER	0.005
18	2210105	SYMBOL REAR WINDOW WIPER	0.005
20	1922266	SYMBOL, WINDSCREEN WIPER	0.005
21	2210107	SYMBOL SPOTLIGHT	0.005
22	1922274	SYMBOL BATTERY	0.005
24	3067756	INSERT, FAST SPEED (HOIST)	0.001
25	3067757	INSERT, FAST SPEED (LUFFING, TELESCOPING)	0.004
26	1924191	INSERT PARKING BRAKE	0.005
27	1922272	SYMBOL FOR HIGHER SPEED	0.140
28	3007835	SIGN, TAKE OVER	0.005
29	1922250	INSERT WITHOUT SYMBOL	0.005
30	3099897	INSERT CHANGING OVER	0.005
100	3323197	VENTIALTION NOZZLE	0.06
101	1925398	HOSE CLAMP	0.050
102	3325173	SPIRAL HOSE (METERWARE)	0.001
103	2310970	NOZZLE	0.035
