Parts for Grove GMK 5220, Figure 3090469-ETL:

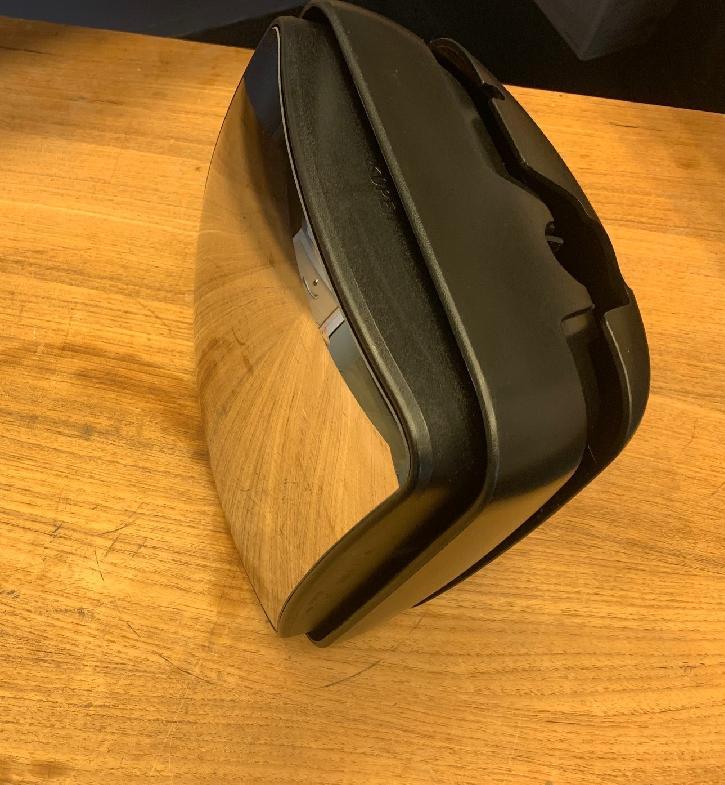

Part Number 3165888: VARIANTS MIRROR
Pos nr Part number Description Weight in kg
1 3056427 DOOR, LEFT 31.3
2 3132206 WINDOWLIFTER, ELECTRIC 4.160
3 3078372 MOTOR HOLDER 1.500
11 3319378 DOOR COVERING, LEFT 3
12 2307824 HINGE, TOP 1.400
13 2311288 HINGE BRACKET 0.3
14 2311289 COUNTER PLATE TOP 0.3
16 2307821 HINGE, BOTTOM 0.74
17 2307836 SUPPORT 0.7
19 2311290 COUNTER PLATE BOTTOM 0.3
20 2312557 DOOR LOCK 0.300
21 1147989 COUNTERSUNK SCREW M8 0.01
22 2312558 CONNECTING BAR 0.04
23 2312559 CLAMP 0.005
24 1146623 CAP NUT 0.005
25 3056147 DOOR HANDLE 0.365
26 2315237 SUPPORT 0.005
27 3320219 SUPPORT 0.005
28 3003083 HANDLE MOULDING 0.330
29 2312561 HANDLE 1.5
30 2312562 SPACER PIECE 0.010
31 2312563 LOCK 0.20
32 2312564 PLUG 0.005
33 2312565 HEXAGON SOCKET HEAD CAP SCREW 0.005
34 3054753 DROP WINDOW 9
35 2315200 TAPPING SCREW 0.005
37 0437170 HEXAGON SCREW M6X16 0.005
38 1370205 WASHER 0.01
39 1577246 WASHER 0.005
43 1207370 COUNTERSUNK SCREW 0.005
44 3325643 DOOR STOP 0.9
45 2313129 DOOR LOCK 0.234
46 2313215 LOCK STRIKER 0.30
47 2311351 COUNTER PLATE 0.001
48 0436163 SPRING WASHER 0.005
49 2311239 SUPPORT 0.001
50 1923998 HEXAGON NUT M6 0.005
51 0437543 SPRING WASHER 0.001
52 0437743 HEXAGON NUT M8 0.0
53 1686701 WASHER M8 0.005
54 1925033 WASHER 6 0.005
55 0437176 HEXAGON SCREW M8 0.01
61 3320557 KORREX COLLAR
62 2310386 COUNTERSUNK SCREW M4 0.001
63 1368068 HEXAGON NUT M4 0.005
64 1374620 WASHER M4 0.005
65 3320570 CABLE CLIP 0.001
66 3320558 TAPPING SCREW
67 3165888 VARIANTS MIRROR 0.001
68 0436836 COUNTERSUNK SCREW 0.014
70 3325953 MIRROR ARM 4.420
71 3165886 VARIANTS MAIN MIRROR LEFT 2.070
74 3065382 ANGLE
75 3065383 Z-PROFILE
76 3065384 PROFILE, SHORT
77 3065385 PROFILE, LONG 0.1
79 0437642 HEXAGON NUT M8 0.003
80 2313835 COUNTERSUNK SCREW 0.002
81 1573936 HEXAGON NUT 0.005
82 1923999 WASHER M5 0.1
83 3320560 HEXAGON SCREW M5X14
84 3323636 FLEXIBLE EDGE PROTECTION
85 3320571 FILM
86 3320572 TAPE
87 3318990 RIVET-NUT KNURLED M5X12,7 0.003
90 0434188 STEEL PLATE
