Parts for Grove GMK 5220, Figure 3169567-ETL:

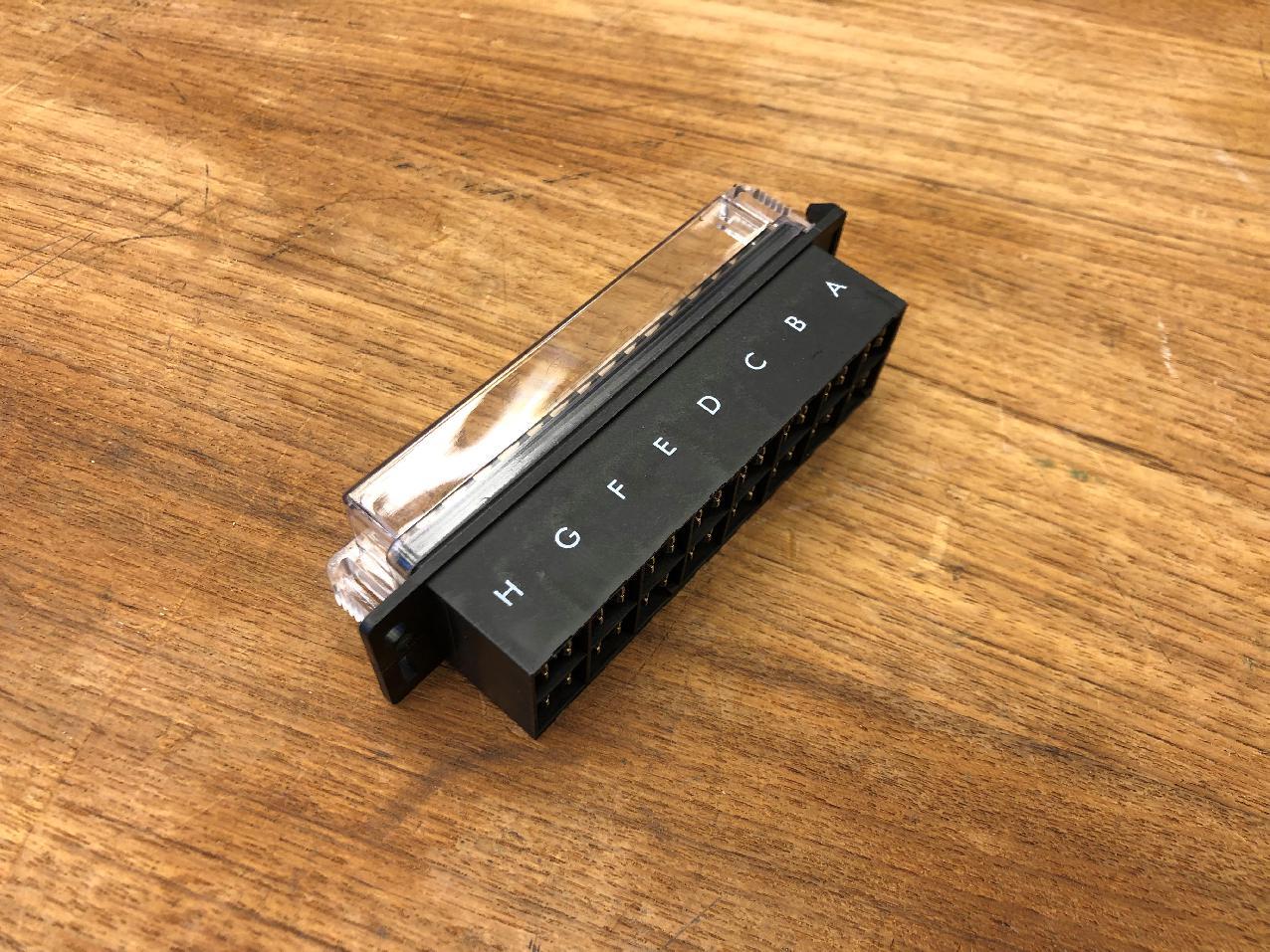

Part Number 3315050: FUSE STRIP (30561930
Pos nr Part number Description Weight in kg
1 3169569 MOUNTING PLATE
2 0329469 CENTRAL-UNIT
4 3315050 FUSE STRIP (30561930 0.105
6 2210088 FLAT FUSE 10 A 0.005
7 2210089 FLAT FUSE 15 A 0.005
8 2210197 FLAT FUSE 5 A 0.005
9 2210196 FLAT FUSE 3 A 0.005
10 2212205 FLAT FUSE 20 A 0.001
11 2252597 FLAT FUSE 25 A 0.008
13 1923999 WASHER M5 0.1
14 1374655 HEXAGON SOCKET HEAD CAP SCREW 0.06
15 1146676 SPRING WASHER 0.005
16 1205297 END CLAMP 0.005
18 3317911 CONTROL UNIT (ESX) 2.700
19 1374647 HEXAGON SOCKET HEAD CAP SCREW 0.005
20 2315698 THROUGH TERMINAL
21 1926022 ASSY. RAIL 0.500
23 3322964 HINGE 0.040
24 3322966 FASTENER WITH SPRING RING 0.045
25 3322967 BLIND RIVET 0.001
26 2254442 BELT (PER METER) 0.020
27 3323139 THROUGH TERMINAL 0.01
28 3323140 CONNECTION TRIPLE 0.005
29 3325231 PINTYP CABLE-SOCKET 0.005
30 1206571 FEMALE PLUG CONTACT
31 2315699 JUMPER
32 1370458 CABLE (PER METER) 0.060
33 3320309 RESISTOR (0355 1K0 TYP MBA 0204) 0.001
34 3320311 RESISTOR 0.005
35 3323141 END PLATE 0.005
36 1204343 RIVET 0.001
38 1374657 HEXAGON SOCKET HEAD CAP SCREW 0.005
39 3317524 SMALL-RELAY 0.180
40 1067048 PLUG SOCKET 0.08
41 1929901 MICRO-RELAY 0.100
42 1929902 PLUG SOCKET 0.015
43 3080508 CABLE HARNESS, GROUND DISTRIBUTOR 15 0.240
44 2214704 CABLE (PER METER) 1
45 1370445 CABLE (PER METER) 0.009
46 0435163 CABLE (PER METER) 0.040
47 2315700 CABLE 0.020
48 1680204 RECEPTACLE 0.005
49 3318968 JUNIOR TIMER CONTACT 0.005
50 1680205 RECEPTACLE 0.005
51 3324168 RECEPTACLE
53 3318969 CONTACT SPRING 0.005
54 3041332 TIMER HOUSING 0.01
55 3323022 RECEPTACLE
56 3317642 JUNIOR TIMER CONTAKT 0.005
57 3041333 TIMER HOUSING 0.005
58 2251005 SWITCH
59 3317499 TIMER HOUSING 0.01
60 3041331 TIMER HOUSING 0.01
61 1926578 PLUG HOUSING 0.01
62 2311615 PLUG HOUSING 0.005
63 2257093 BUSH 0.001
64 3317687 TIMER HOUSING 0.005
69 2313849 FASTENING RING
70 2313850 FEMALE PLUG CONTACT CASNG
71 2313851 DUST PROTECTION CAP
72 3323279 INSULATING WALL
73 3046962 TIMER HOUSING
74 3041334 TIMER HOUSING 0.005
75 1204492 PLUG CASING 0.005
76 2214680 HOUSING
77 3323625 PLUG CASING
78 1677741 RECTIFIER 0.001
79 1204420 PLUG CASIGN 0.005
82 2311919 INSULATING SLEEVE 0.080
83 3318970 CONTACT SPRING BAND 0.022
84 3046708 JUNIOR TIMER CONTAKT FOR SIGNLE FEED 0.005
85 1929988 RECEPTACLE 0.004
86 2318333 RECEPTACLE
87 3318953 RECEPTACLE 0.002
88 1148125 RECEPTACLE 0.010
89 3323629 CONTACT STANDARD TIMER 0.001
90 3323630 CONTACT STANDARD TIMER 0.001
91 3323631 CONTACT STANDARD TIMER 0.010
94 3041113 PUR-CABLE (PER METER) 0.0500
95 1370454 INSULATING HOSE
96 3317996 CORRUGATED TUBE
97 2214703 CABLE (PER METER) 0.01
101 3041335 TIMER HOUSING
103 1683947 RECEPTACLE 0.001
104 3323023 INSULATING SLEEVE
105 2318332 INSULATING SLEEVE
106 3041341 CONTACT SPRING 0.001
107 3041757 CENTRAL PLUG
108 3323937 RECEPTACLE
110 3317928 CORRUGATED HOSE (PER METER)
111 3323941 PLUG HOUSING 5 PIN
112 0556247 RELAY 0.031
114 1067047 SMALL-RELAY 0.036
129 1370456 STRANDED 0.07
130 1370461 SILFLEX-SIF CABLE
131 0438064 PINTYP CABLE-SOCKET 0.002
132 3323675 TIMER HOUSING
134 3317926 CORRUGATED HOSE (PER METER)
136 1374339 INSULATING HOSE 0.004
139 2318067 RESISTOR 0.005
