Grove 9752100419

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9752100419, 09752100419, 009752100419

Parts for Grove AT 635, Figure 6920990213:

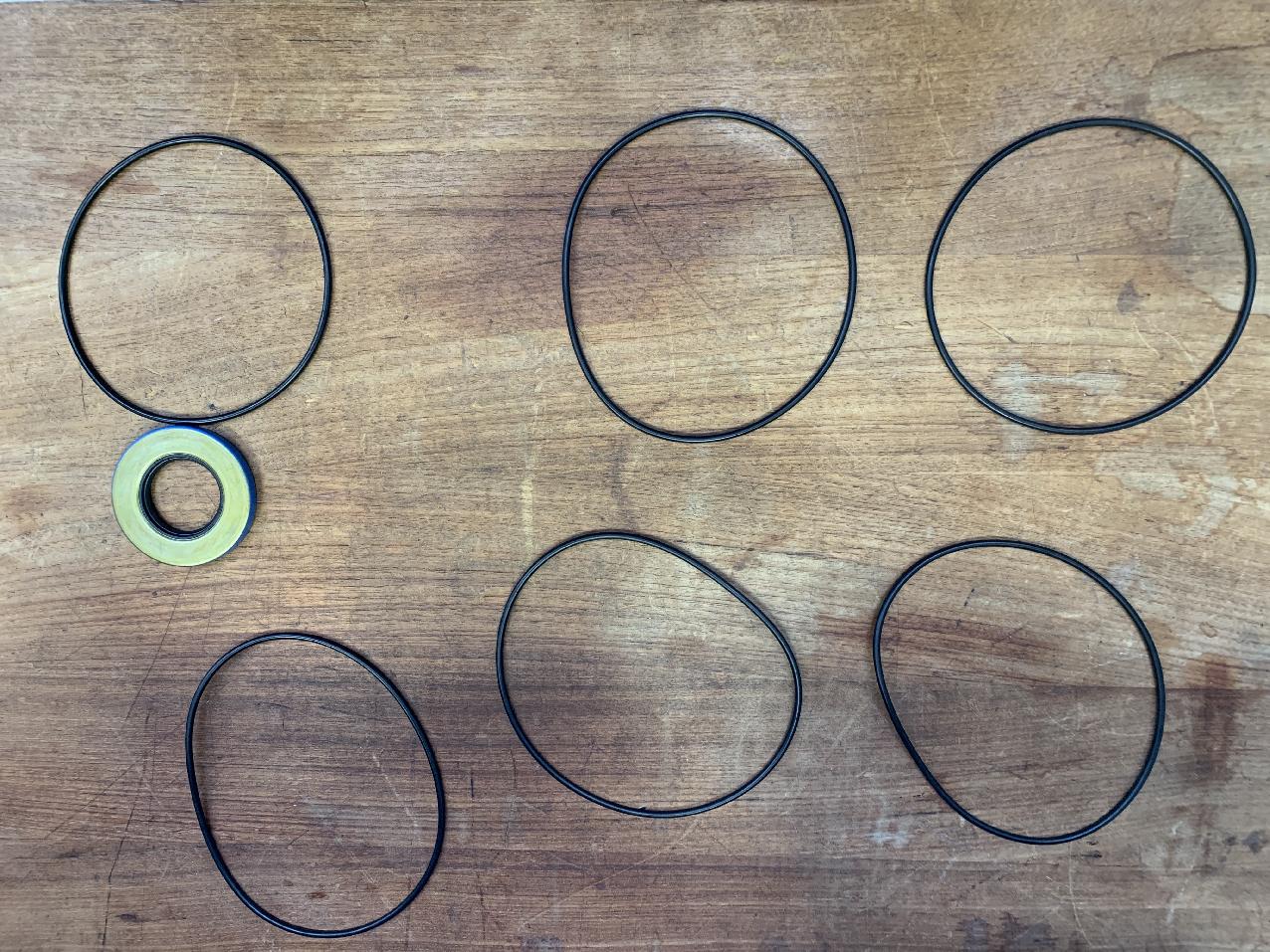

Part Number 9752100419: KIT

Pos nr	Part number	Description	Weight in kg
1	9752100419	KIT	0.22
1	6547000157	HOUSING, BRAKE
2	6258000662	COVER
3	6450000292	FLANGE
4	6846000130	STOP
4	6701000189	PISTON
5	6810001789	SHAFT (GB 100 A	1.510
6	7705009286	STATOR	0.089
7	7388990005	ZIE 7388000101
8	7834000165	SPRING	0.04
8	7110181005	CAPSCREW
9	7753000437	SNAP RING
9	7950180080	LOCK WASHER, 1/2" I.D.
10	7444040150	BUSH
10	7755252000	O-RING
10	6753990055	RING ECCENTRIC
11	7934000007	AIR VENT
11	7755256000	O-RING
12	7753000225	SNAP RING
12	6910990913	SPACER
13	6490000084	DRIVE PINION	4.440
13	7069000349	BEARING, BALL	0.26
14	6910007874	SPACER
14	4158200057	CAP
15	7115181450	CAP SCREW,	0.113
15	6490000078	GEAR
15	7794000517	SEAL
16	7950180020	LOCK WASHER, 1/2" I.D.
17	7126262750	BOLT
17	6570101000	KEY
18	7115161050	HEX HD BOLT	0.103
18	7949990204	WASHER M18
19	6650040160	NIPPLE, 1/2"
19	6920990214	PINION GUARD
20	7926000352	VALVE	0.01
20	7112160650	FEPLACEDBY
20	7444000460	ELBOW, 90 DEGREE
21	7950160050	LOCK WASHER 3/8" PEG	0.080
21	6650040640	PIPE
21	7258000667	PROTECTOR, THREAD
22	6910990956	TUBE
22	6486001561	DIPSTICK
23	7115161250	CAPSCREW	0.023
23	7447120828	ADAPTER, STRAIGHT
24	7447040403	ELBOW, 90 DEGREE
24	7949000377	WASHER
25	7755152000	O-RING	0.004
27	7444020270	ELBOW, STREET	0.001
32	7444020011	PLUG, PIPE
