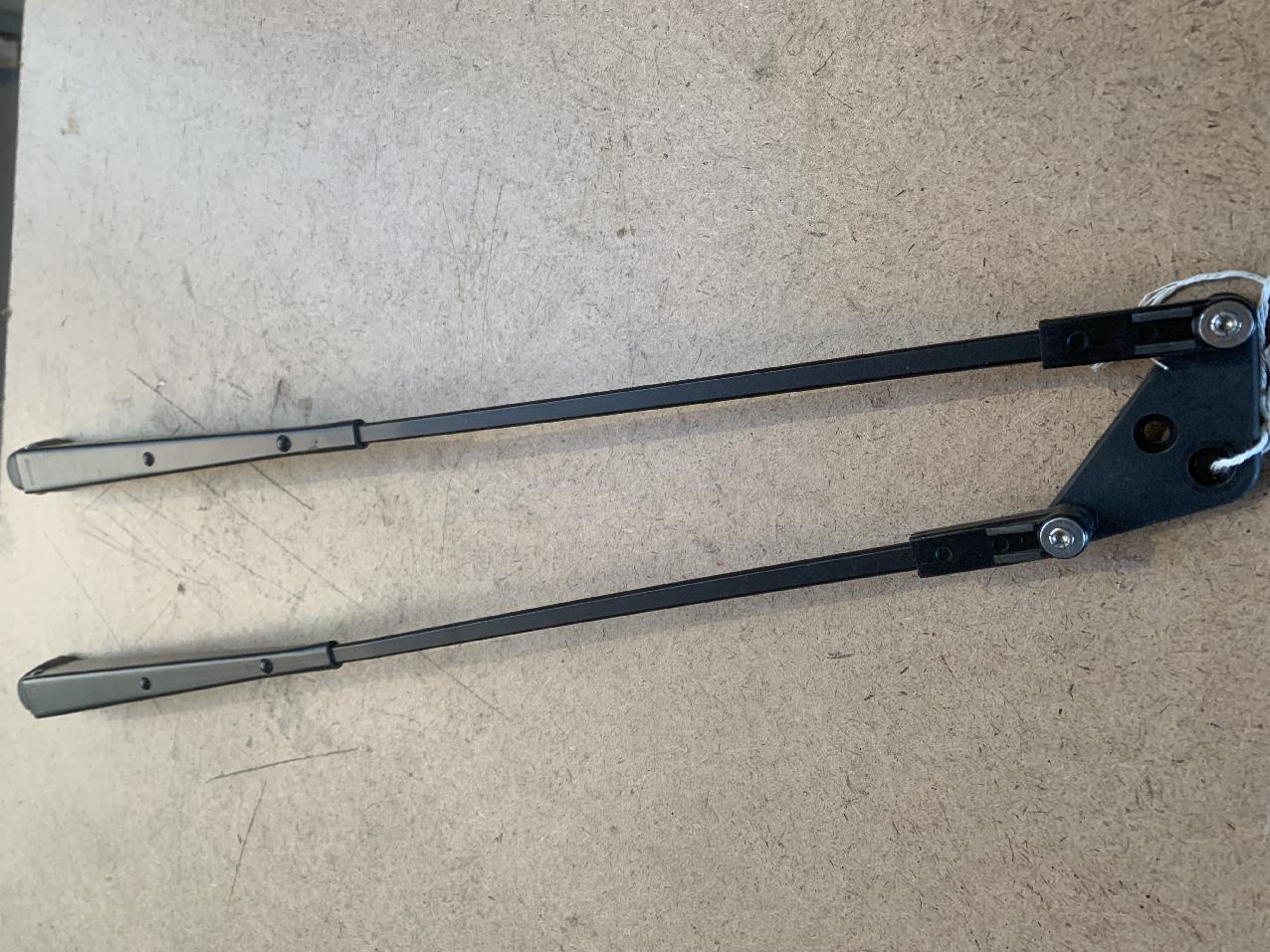

Grove 7033990071 - ARM PANTOGRAPH

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7033990071, 07033990071, 007033990071

Parts for Grove AT 635, Figure 6978990572:
Part Number 7033990071: ARM PANTOGRAPH

Pos nr	Part number	Description	Weight in kg
1	6978990601	ELECTRICAL ASSY - DASHPANEL
2	6978990613	ELECTRICAL ASSY - RELAY PANEL
3	6978990619	ELECTRICAL ASSY - REAR STEER PANEL
4	6978990629	ELECTRICAL ASSY - EMERGENCY GEAR
5	6512990288	HARNESS
13	7632990059	MOTOR WIPER
14	7033990071	ARM PANTOGRAPH	0.001
15	7083990010	BLADE - 600MM CURVED	0.248
16	7581990206	LAMP	0.001
17	8945562	BULBFESTOON 24V10W	0.010
18	7872000203	DOOR SWITCH
19	7872000112	DIMMER SWITCH
20	7872000639	TURNSIGNAL SWITCH
21	7176718	BULB	0.005
22	7348990004	CONTAINER AS
23	7184990023	BRACKET	0.001
24	7888990001	T PIECE	0.005
25	7304990016	JET ASSY.	0.100
26	6543001371	HOSE
27	8934762	MARKER LIGHT	0.130
28	7429990027	FASTENER SCREW
29	7121131201	SCREW
30	7058101	SELF TAP SCREW	0.100
