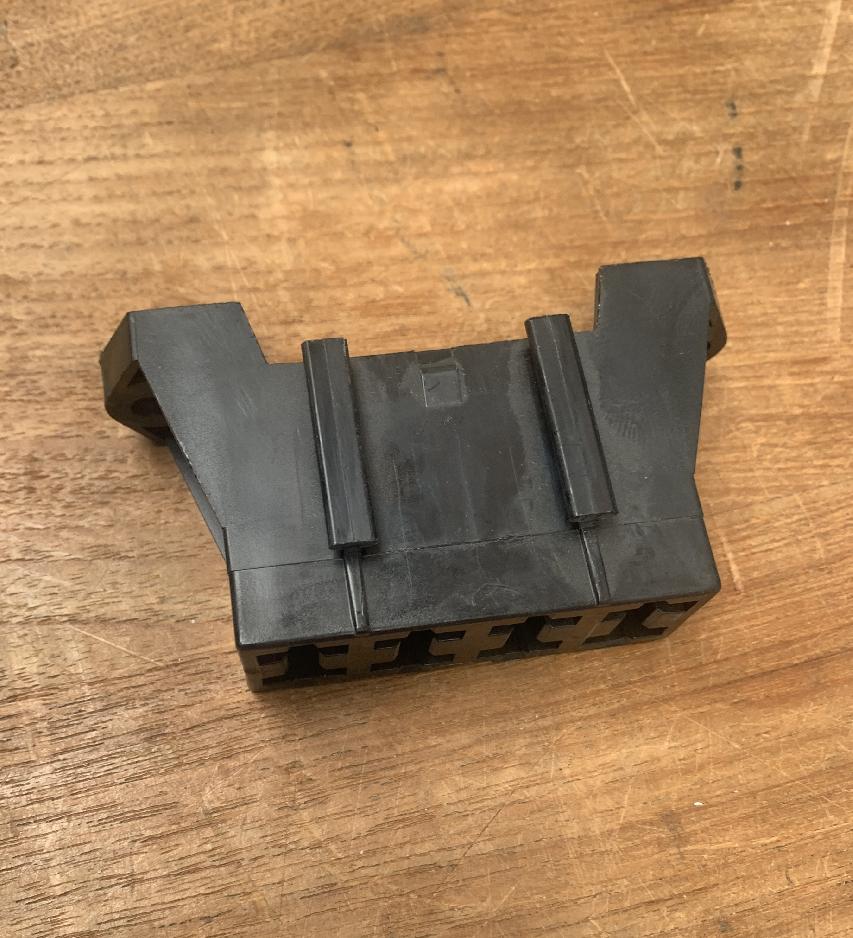

Grove 7086000947 - FUSE BLOCK

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7086000947, 07086000947, 007086000947

Parts for Grove AT 635, Figure 6978990613:
Part Number 7086000947: FUSE BLOCK

Pos nr	Part number	Description	Weight in kg
2	8930029	PLUG HOUSING
2	8930030	PLUG HOUSING
3	8930031	PLUG HOUSING 11 WAY
4	8786860	TERMINAL MALE
5	8786926	CONNECTOR TAB
6	7086000947	FUSE BLOCK	0.15
7	7892000220	FUSE, BUSS BAR	0.100
8	7892000218	FUSE, TERMINAL	0.005
9	7892000219	FUSE, TERMINAL	0.005
10	6184001406	BRACKET, FUSE	0.080
11	7098105	SCREW M5 X 20
12	7661130003	NUT, HEX
13	7066532	WASHER PLAIN 5M DIA.
14	7660101100	NUT, HEX	0.001
15	7950160141	WASHER, 3/8" PLAIN NARROW	0.004
16	7482000037	FUSE, 3 AMP (2210196)	0.005
17	7482000033	FLAT FUSE LINK 10 A	0.004
18	7482000032	FLAT FUSE LINK 15 A	0.005
19	7482000030	FUSE, 25AMP	0.010
20	7750990043	RELAY	1
21	8871083	PLUG
22	8786862	TERMINAL FEMALE
23	8786927	TERMINAL
24	2174400011	FUSE & RELAY PANEL WELD
26	7585000184	LATCH, ARROWHEAD	0.220
26	6030002752	ANGLE
27	7978990503	CABLE WHITE
27	7978990504	CABLE
27	7978990505	CABLE WHITE
27	7376991057	LABEL HARNESS IDENTIFICATION
27	7978990506	CABLE (4.5MM) 1120CM LONG
28	8786864	HOUSING RECEPTACLE 6 WAY SOCKET
29	8871088	DIODE	7
