Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
RT 650E (Grove RT 650 E )
AT part (Grove )
9904109923 (Grove RT 650 E )
7904990090 (Grove AT 635 )
Also known as:
9904105394, 09904105394, 009904105394
Parts for Grove AT 635, Figure 7904990090:

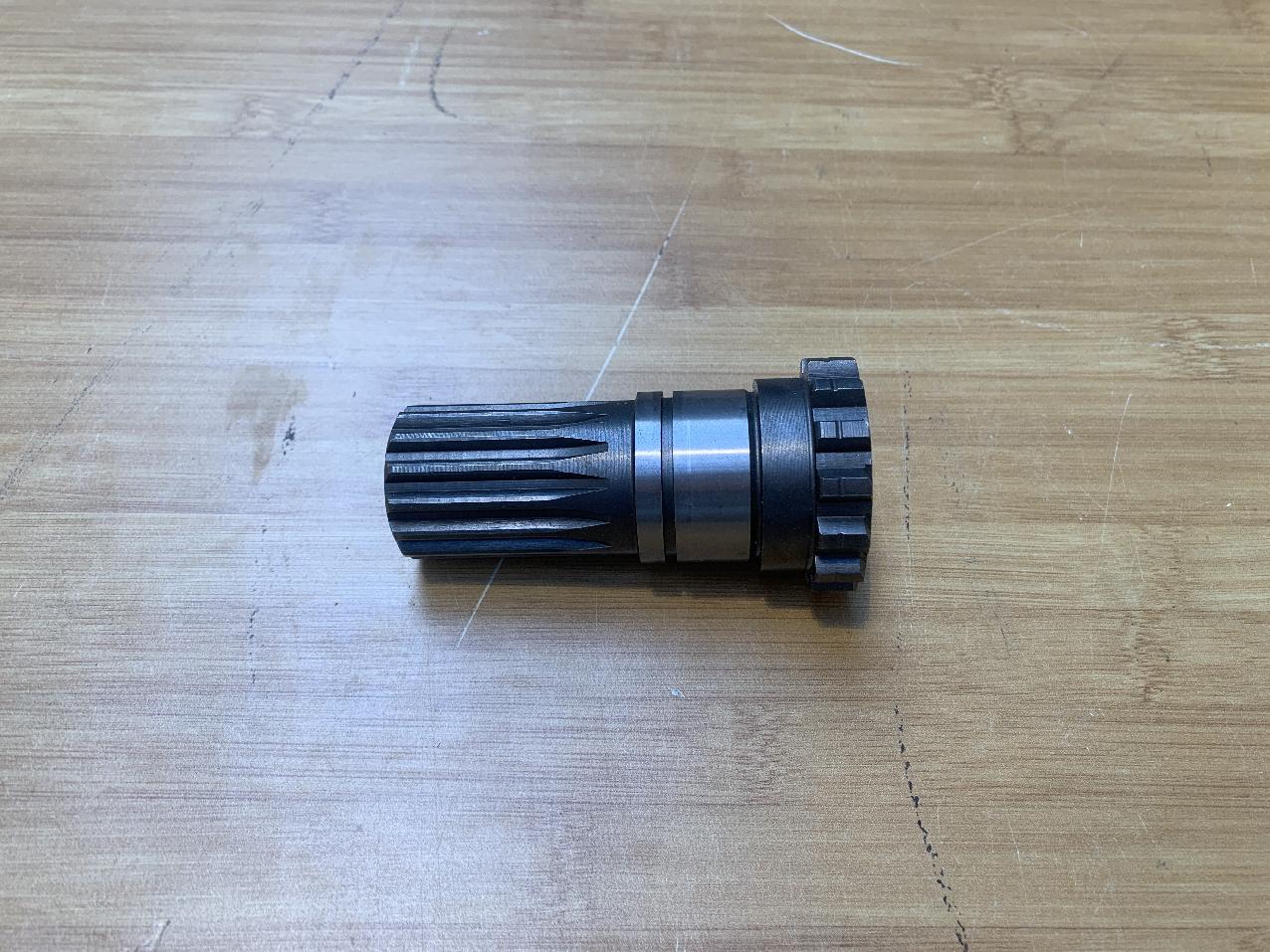

Part Number 9904105394: SHAFT
Pos nr Part number Description Weight in kg
1 9904106490 FLANGE INPUT
1 9904101350 BEARING, PILOT 0.070
1 9904103569 SPRING 3
1 9904105329 CAP SCREW
1 8989808 O-RING
1 9904107557 DRIVE PLATE ASSY KIT INCL. ITEMS 2 THRU 4
1 8395481 STATOR SUPPORT SCREW
1 8925957 ROLL PIN
2 9904101380 SUPPORT, RAIL
2 9904101391 NUT 0.19
2 9904103568 RETAINER, SPRING
2 9904103794 RETAINER, SPRING
2 9904105420 BEARING
2 721605 LOCKWASHER
2 505904 LOCKWASHER
2 7049100291 LOCKWASHER
3 9904101392 WASHER
3 9904103567 SNAP RING 0.012
3 9904103795 SPRING
3 9904107563 RING, RETAINING
3 9904105347 RING, SNAP
3 9904105404 SUPPORT & SLEEVE
3 9904992346 BACKING RING 0.15
4 9904101365 SCREW, 0.040
4 9904102266 SCREW AND LOOKWASHER
4 9904105405 BEARING
4 9904103155 SEGMENT 0.001
4 8730478 O-RING
4 9904105419 IDLER SHAFT LOW RANGE
5 9904101381 RAIL
5 9904103796 LINK
5 9904105349 SUPPORT
5 9904105426 SPACER
5 9904103156 SHAFT, TURBINE
5 9904105417 HUB
6 9904101211 RING, PISTON 2
6 9904103632 RING, SNAP
6 9904103797 FORK
6 9904105350 GEAR 2.270
6 9904105418 SHAFT & GEAR
6 8989857 OIL SEAL
7 9904103798 PIN
7 9904103633 PLATE, BACKING 1
7 9904103594 BEARING
7 9904105410 BEARING
7 8989853 DETENT PLUG
8 9904101207 RING. SNAP 0.012
8 9904101049 BALL 0.006
8 9904101367 BALL, LOCK
8 9904103635 DISC, CLUTCH 14
8 9904103799 PLUG
8 9490990235 OUTER DISC
9 9904101050 SPRING 0.005
9 9904101369 WASHER
9 9904103988 DISC, CLUTCH 15
9 9904105402 SLEEVE ASSY - PUMP DRIVE
9 8777933 PLUG
10 9904101044 SCREW, LOCK
10 9904101190 RING, RETAINING
10 9904101371 NUT
10 9904103157 RACE, TURBINE S
10 9490990236 CLUTCH PISTON ASSY
11 9904103637 SEAL 9
11 9904101409 FORK, SHIFT
11 9904104012 SPRING, DETENT
11 9904105424 GASKET
11 9904103661 PISTON RING 0.045
11 9904105374 PMP.DRV.SLV.ASY
12 9904103638 SEAL, PISTON
12 9904103801 O-RING
12 9904101077 RING, SNAP
12 9904103662 PISTON RING 0.045
12 9904107564 LOCK WASHER
13 9904103663 SEAL, OIL 0.088
13 9904101332 RING
13 9049103251 CAPSCREW
13 8777937 PLUG
14 9904103546 FITTING
14 9904107558 RING, RETAINING
14 9904105365 SEAL 0.095
14 9904992173 O RING
14 9904107565 BEARING CAP SCREW
15 9904101349 BEARING, FRONT
15 9904105348 BAFFLE
15 8925828 SPEED SENSOR
15 9904992361 TUBE NUT
16 9904101348 RING, SNAP
16 9356990040 SPEED SENSOR CONNECTOR
16 9904992344 RETAINER RING
16 9904992362 LUBE TUBE ASSY INCL.ITEMS 15 AND 35
17 9904103807 RAIL
17 9904105432 GEAR
17 9904107618 EGS BOX
17 9904105416 4TH SPEED SHAFT & PLUG ASSY
18 9904101215 RING. SNAP 0.032
18 9904105615 PLUG
18 9904107619 EGS BOX
19 9904107548 TURBINE SHAFT GEAR
21 9904105394 SHAFT 1
23 9904105616 SPACER 0.32
24 9904105421 REAR BEARING CAP
