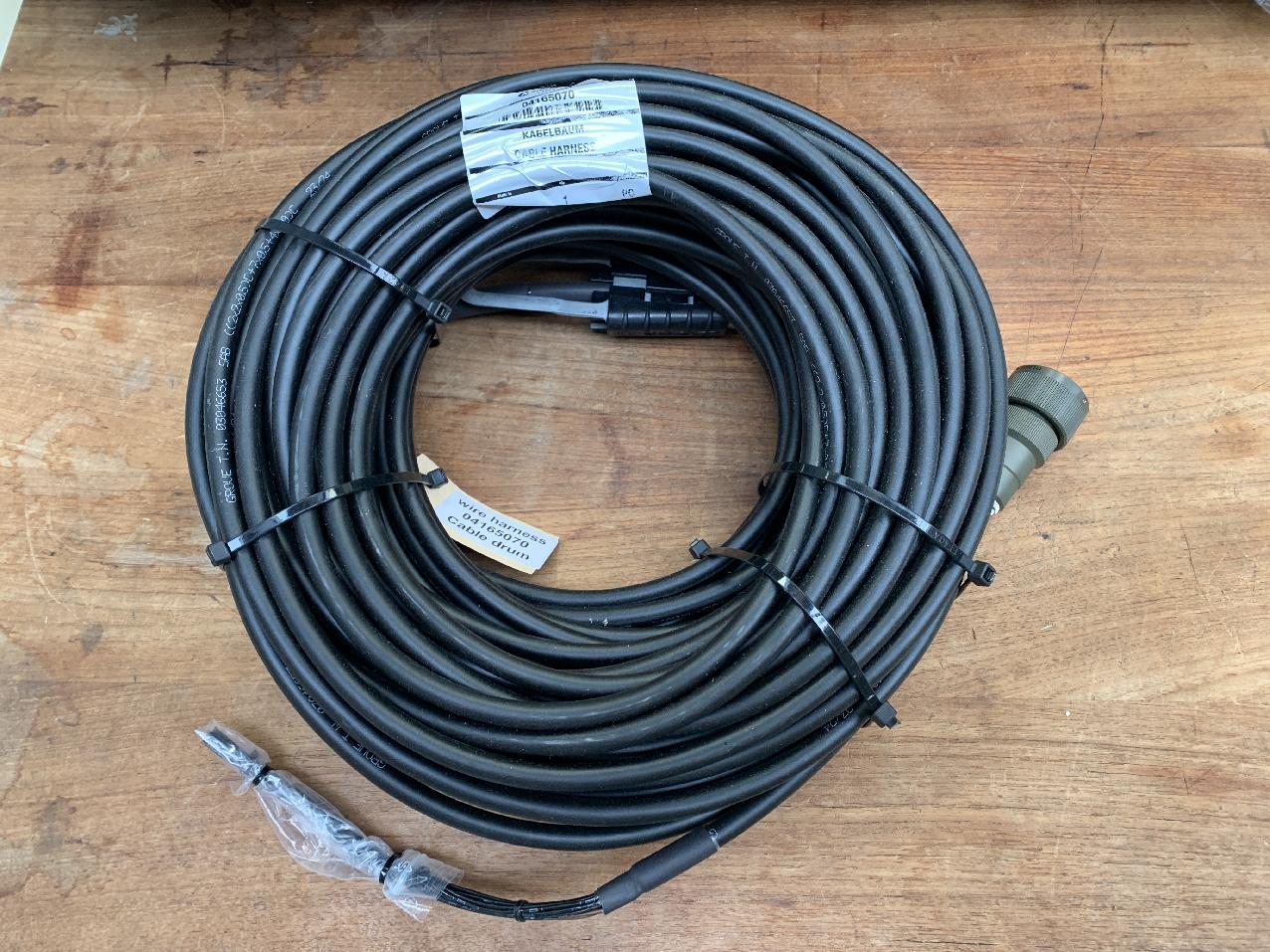

Grove 3138897 - LACED WIRING HARNESS FLT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3138897, 03138897, 003138897

Parts for Grove GMK 3055, Figure 3138889-ETL:
Part Number 3138897: LACED WIRING HARNESS FLT

Pos nr	Part number	Description	Weight in kg
1	3328141	GEAR WHEEL	0.03
2	3326415	SPRING BOX
3	3324700	SPRING
4	3324701	NUT
5	3324702	SPRING BOX
6	3324703	ROUND
7	3138891	O-RING	0.001
8	3328370	DRIVE DOG POTENTIOMETER	0.160
9	3138892	CAP
10	3328182	CURRENT COLLECTOR	0.02
11	3324707	SLIP RING	0.005
12	3324695	INSULATING RING	0.005
13	0118223	GROOVED BALL BEARING	0.08
14	3324708	NUT
15	3324697	SEAL	0.005
16	1930104	V-RING	0.01
17	3320123	GROOVED BALL BEARING	0.001
18	2318055	POTENTIOMETER	0.021
19	3138897	LACED WIRING HARNESS FLT	8.500
20	3328372	CABLE HARNESS FOR CABLE DRUM	0.400
21	3138895	CAP BOTTOM
