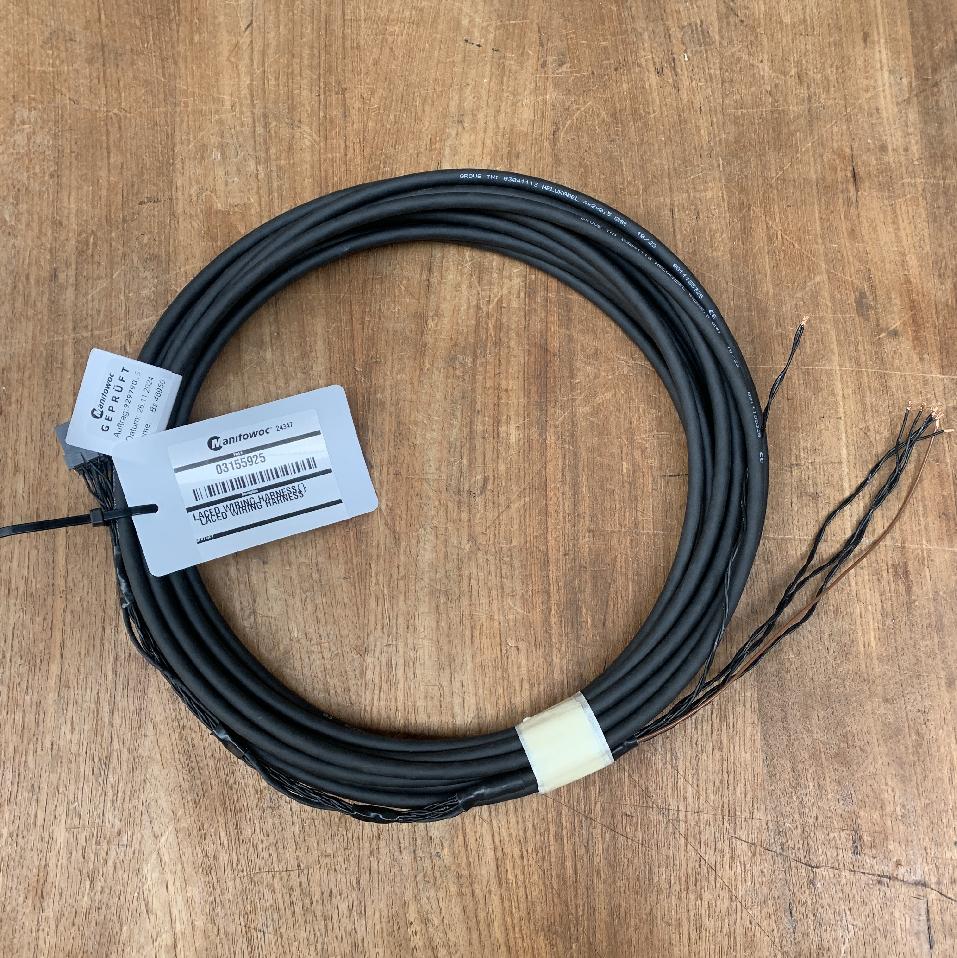

Grove 3155925 - CABLE HARNESS TURNTABLE-ANGULAR UNIT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3155925, 03155925, 003155925

Parts for Grove GMK 3055, Figure 3155938-ETL:
Part Number 3155925: CABLE HARNESS TURNTABLE-ANGULAR UNIT

Pos nr	Part number	Description	Weight in kg
1	3103567	TERMINAL BOX	1.208
2	3099903	MOUNTING PLATE
3	3155915	E.- PARTS, ANGLE SENSOR	0.08
11	1374654	HEXAGON SOCKET HEAD CAP SCREW	0.001
13	1146676	SPRING WASHER	0.005
16	1926022	ASSY. RAIL	0.500
17	3323139	THROUGH TERMINAL	0.01
18	1205297	END CLAMP	0.005
19	3323141	END PLATE	0.005
20	3329513	PRESSURE BALANCE ELEMENT
21	3323260	CABLE CONNECTION	0.03
23	3324210	REDUCER	0.160
25	3329514	REDUCER	0.001
26	2318067	RESISTOR	0.005
35	3155923	CABLE HARNESS, DRUM MAIN BOOM-ANGLE UNIT	0.260
36	3155939	LACED WIRING HARNESS
37	3155925	CABLE HARNESS TURNTABLE-ANGULAR UNIT	1.2
38	3155916	HOLDING	2.500
39	2210979	RESISTOR	0.001
