Parts for Grove GMK 4100-L, Figure 3267935-ETL:

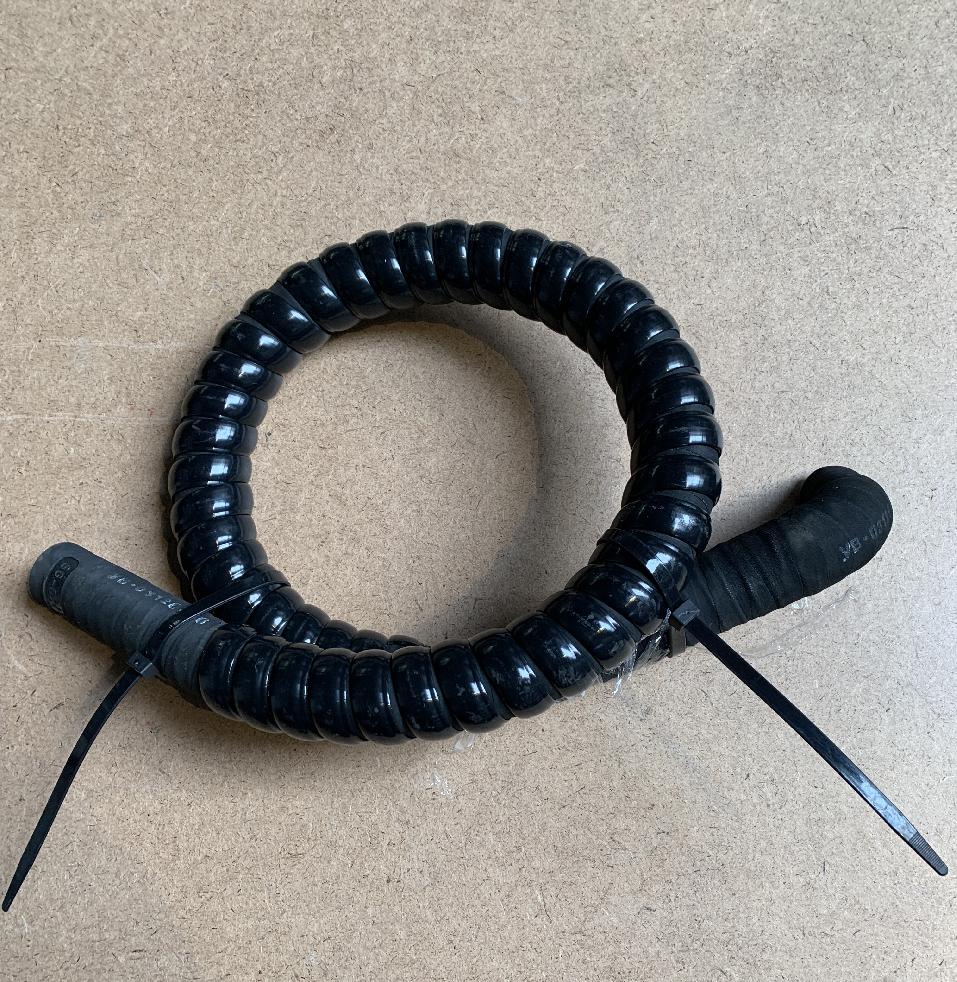

Part Number 3128486: SPIRAL HOSE

Pos nr	Part number	Description	Weight in kg
1	3093869	COOLING UNIT.
2	3327458	FLUID RESERVOIR	5.860
3	3271931	COMPRESSOR HOSE
4	3271921	COMPRESSOR HOSE
5	3267939	HOSE 42/50
6	3267940	WATER HOSE
7	3267941	WATER HOSE
8	3126451	CONNECTING PIPE	0.65
9	3128486	SPIRAL HOSE	1.660
10	1207752	HOSE 12 X 3,5 (METERWARE)	0.16
12	0437182	HEXAGON SCREW M10X25	0.120
13	0437545	SPRING WASHER	0.005
15	1925395	HOSE CLAMP	0.04
16	1925396	HOSE CLAMP	0.04
17	1925394	HOSE CLAMP	0.028
18	2217171	HOSE CLAMP	0.026
19	2318223	HOSE CLAMP	0.26
21	1067553	FENDER WASHER	0.01
22	1686701	WASHER M8	0.005
23	3046709	CONNECTING PIECE FOR HOSE	0.016
24	1207350	HOSE 10 X 3,5 (PER METER)	0.067
26	0554859	MEGI-BUFFER	0.12
27	3046743	MEGI-BUFFER	0.07
28	2311893	WASHER
29	0437642	HEXAGON NUT M8	0.003
31	3267937	HOLDER	0.700
32	3127098	HOLDER	0.650
33	3267942	HOLDER	0.400
34	0027079	HEXAGON SCREW M8	0.014
36	3267933	CONNECTING PARTS HEATING
37	3156413	HOLDER	0.850
38	3267936	HOLDER
39	2313321	GLUED RUBBER PROFILE
42	3325943	PROBE
46	3318740	PIPE CLAMP	0.03
47	3127096	HOLDER
49	1925033	WASHER 6	0.005
50	1923998	HEXAGON NUT M6	0.005
