Grove 3323566

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3323566, 03323566, 003323566

Parts for Grove GMK 5095, Figure 3114609-ETL:

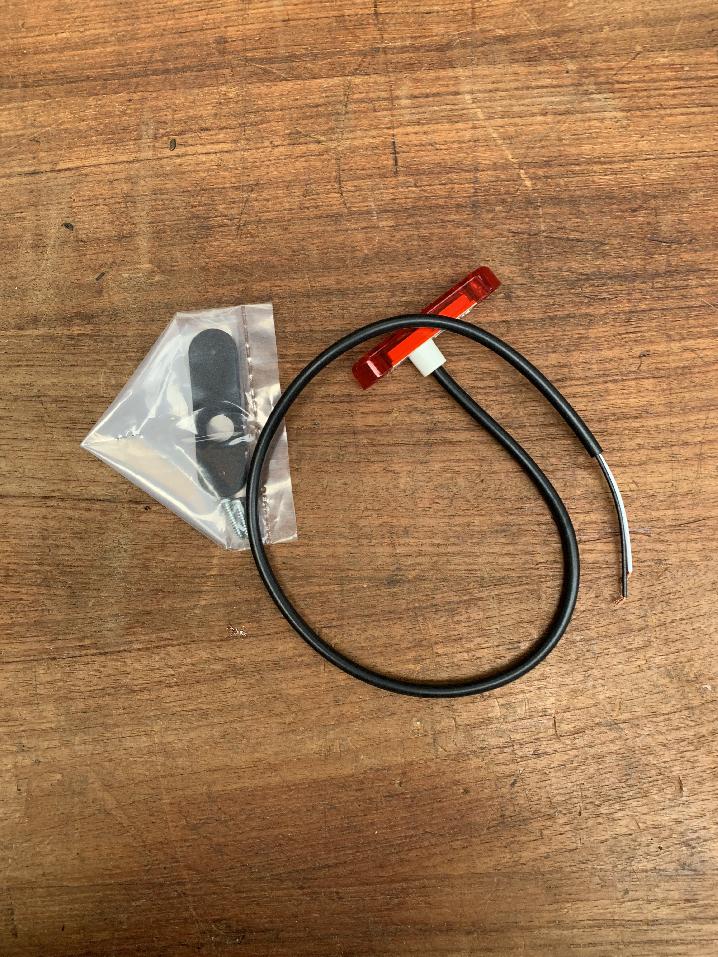

Part Number 3323566: LIGHT

Pos nr	Part number	Description	Weight in kg
1	3323566	LIGHT	0.001
1	3327368	EXTENSION TUBE	0.54
1	1686701	WASHER	0.005
1	1368068	HEXAGON NUT	0.005
1	1374311	SPRING WASHER
1	1678863	HEXAGON NUT	0.010
1	1374650	HEXAGON SOCKET HEAD CAP SCREW	0.005
1	3114605	E.- PARTS LICHTING, REAR, RICHT
1	3114607	CABLE HARNESS LIGHTING
1.10	0027079	HEXAGON SCREW	0.014
2	3114606	E.- PARTS LIGHTING, REAR, LEFT
