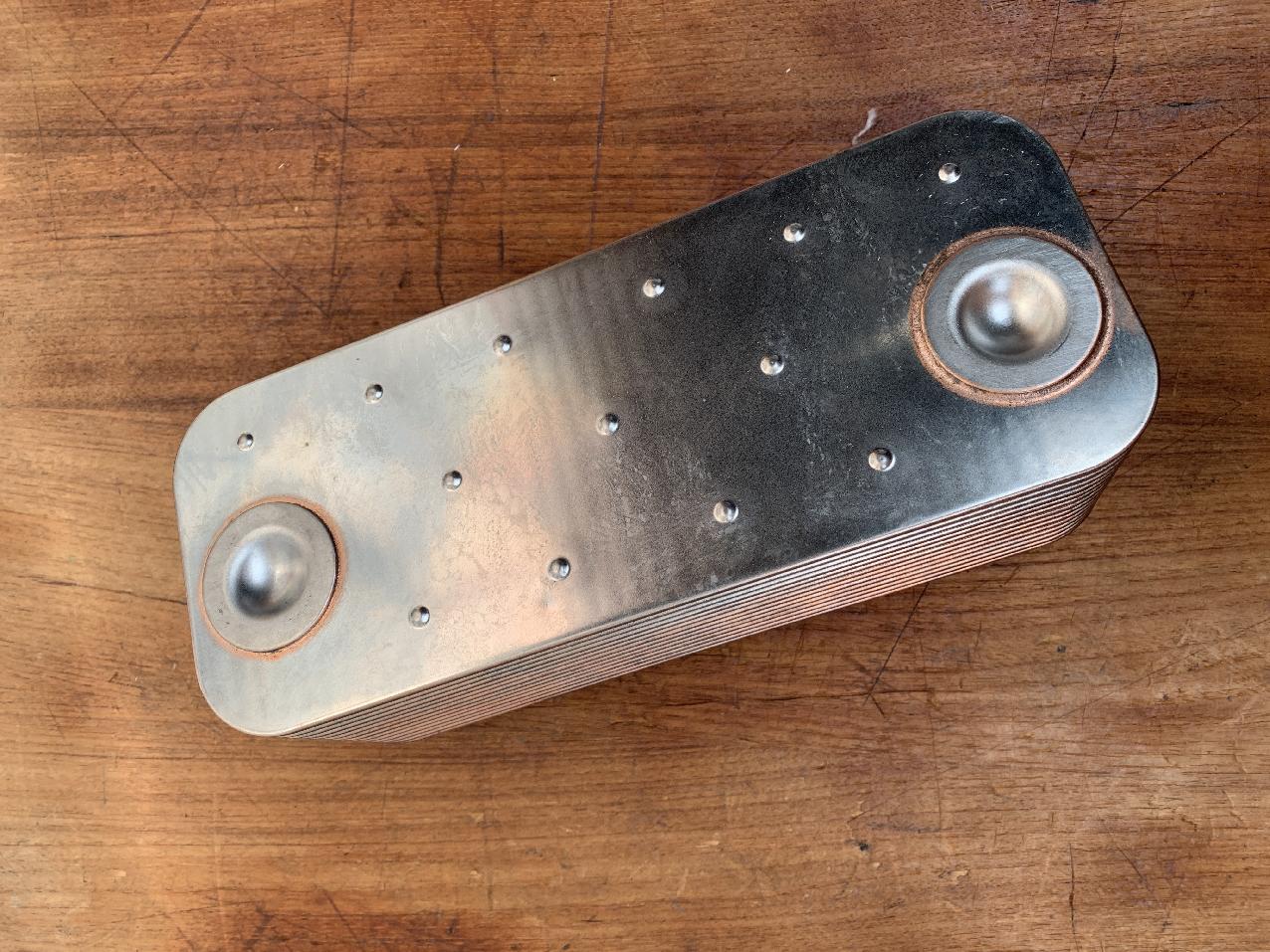

Grove 3135632 - OIL RADIATOR

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3135632, 03135632, 003135632

Parts for Grove GMK 5095, Figure 3153480-ETL:
Part Number 3135632: OIL RADIATOR

Pos nr	Part number	Description	Weight in kg
1	3319653	FUEL FILTER	1.5
2	3135586	REPAIR KIT	0.105
2	3135627	PUMP	3.240
3	3135628	COMPRESSED-AIR RESERVOIR	0.100
4	3316021	REPAIR KIT / SET OF SEALS	1.151
4	3045827	AIR COMPRESSOR CPL.	4.185
4	3328623	CYLINDER HEAD	0.001
5	3328607	VENTILATOR	5.05
5	3328624	FAN DRIVE	5
6	3326704	COOLANT PUMP	13.600
6	3323458	SET OF SEALS	0.11
7	3135973	REFRIGERANT COMPRESSOR
7	3135974	COUPLING
7	2317658	SET OF SEALS	0.005
8	3328609	V-RIBBED BELT	0.156
9	3328365	OIL FILTER ELEMENT WITH GASKET	0.45
9	3328606	SEAL	0.015
10	3326707	ALTERNATOR	7.78
10	3328605	REGULATOR SWITCH
11	3328367	STARTER	14
11	3135587	ARREST SWITCH	1.910
11	3135588	ARREST SWITCH	0.375
11	3135589	SEALING RING	0.070
11	3328969	CARBON SET	0.225
12	3319656	OIL PRESSURE SENSOR	0.058
13	3319657	TEMPERATURE TRANSMITTER	0.180
15	3319663	CRANK ANGEL POSITION SENSOR	0.220
16	3319660	OIL-LEVEL-SENDER	0.115
17	3135629	CYLINDER COVER SEAL	0.02
18	3328369	CYLINDER HEAD GASKET	0.110
19	3135630	GASKET OIL SUMP PAN	0.001
20	3135524	OIL-MEASURING STICK	0.520
21	3135639	COVER
22	3319661	CYLINDER COVER SEAL	0.03
23	3135618	COVER OIL FILLING	0.04
23	3135623	GASKET	0.005
24	3135631	FUEL PUMP	0.45
24	3135638	REPAIR KIT	0.32
25	3135632	OIL RADIATOR	4.589
27	3135634	OIL PUMP
28	3326214	REGULATOR INSERT	0.128
29	3135635	BELT PULLEY
30	3328363	TENSION PULLEY FOR V-RIBBED BELT	2.081
31	3135636	COVER WITH VENTILATION
32	3135605	NON-RETURN VALVE
33	3135637	VALVE
