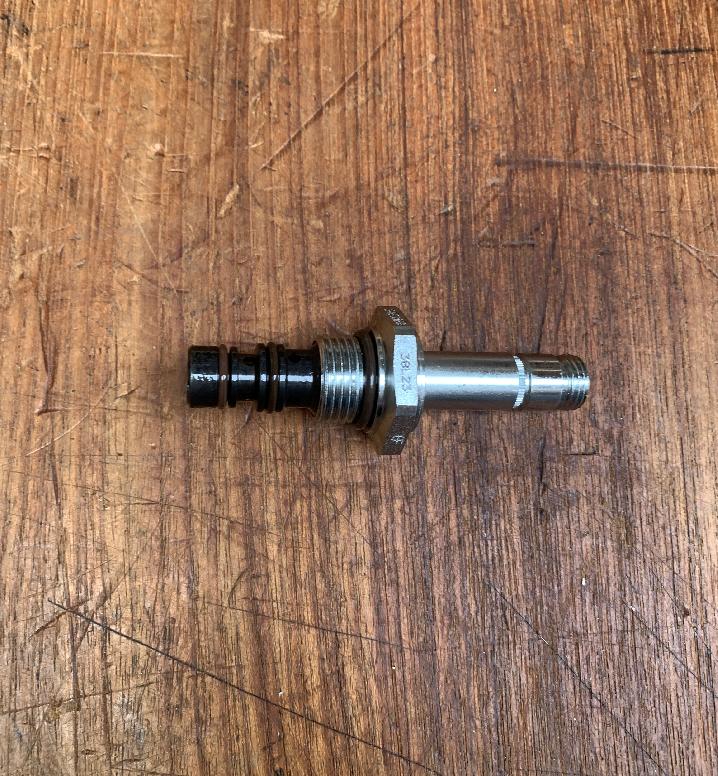

Grove 9904107585 - CARTRIDGE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9904107585, 09904107585, 009904107585

Parts for Grove RT 650 E, Figure 9904109922:
Part Number 9904107585: CARTRIDGE

Pos nr	Part number	Description	Weight in kg
	7755910000	RING	0.005
	9904105327	CAP SCREW
1	9904107750	GASKET
3	7115161250	CAPSCREW	0.023
4	7950160050	LOCK WASHER 3/8" PEG	0.080
5	9904106058	ELBOW
6	9904106059	TUBE
8	9904106370	SPOOL, SHIFT	0.060
9	9904106375	SPOOL, SHIFT	0.001
10	9904106372	SPOOL, SHIFT	0.070
12	9904106063	PLUG WITH 0-RING	20.270
13	9904105336	O-RING	0.050
14	9904106060	PLUG
20	9904107584	O-RING	0.001
24	9904106065	STOP, SPOOL	0.016
25	9904106066	PIN, ROLL	0.002
26	9904106149	STOP, PLUG	0.001
27	9904103650	SPOOL, VALVE	0.136
28	9904103651	SPRING	0.050
30	9926107296	O-RING	0.454
31	9904109627	VALVE, SOLENOID
32	9904109697	SPACER, COVER
33	9904109628	SPACER, COVER
35	9904106376	SPOOL, SHUTTLE
36	9904106371	SPRING	0.006
37	9904103647	STOP,SPOOL	0.008
38	9904104055	PLUG	0.006
39	9904108974	COIL, SOLENOID	0.480
40	9904107585	CARTRIDGE	0.3
41	9904106074	O-RING	0.005
42	9904105339	O-RING
43	9904109698	0-RING
44	9904108709	NUT
45	9904107573	O-RING
46	9904101429	PLUG WITH 0-RING	0.070
48	9904109696	VALVE ASSEMBLY - CONTROL
49	9904109699	VALVE ASSEMBLY, SHUTTLE
50	6512002646	HARNESS ASSEMBLY.
