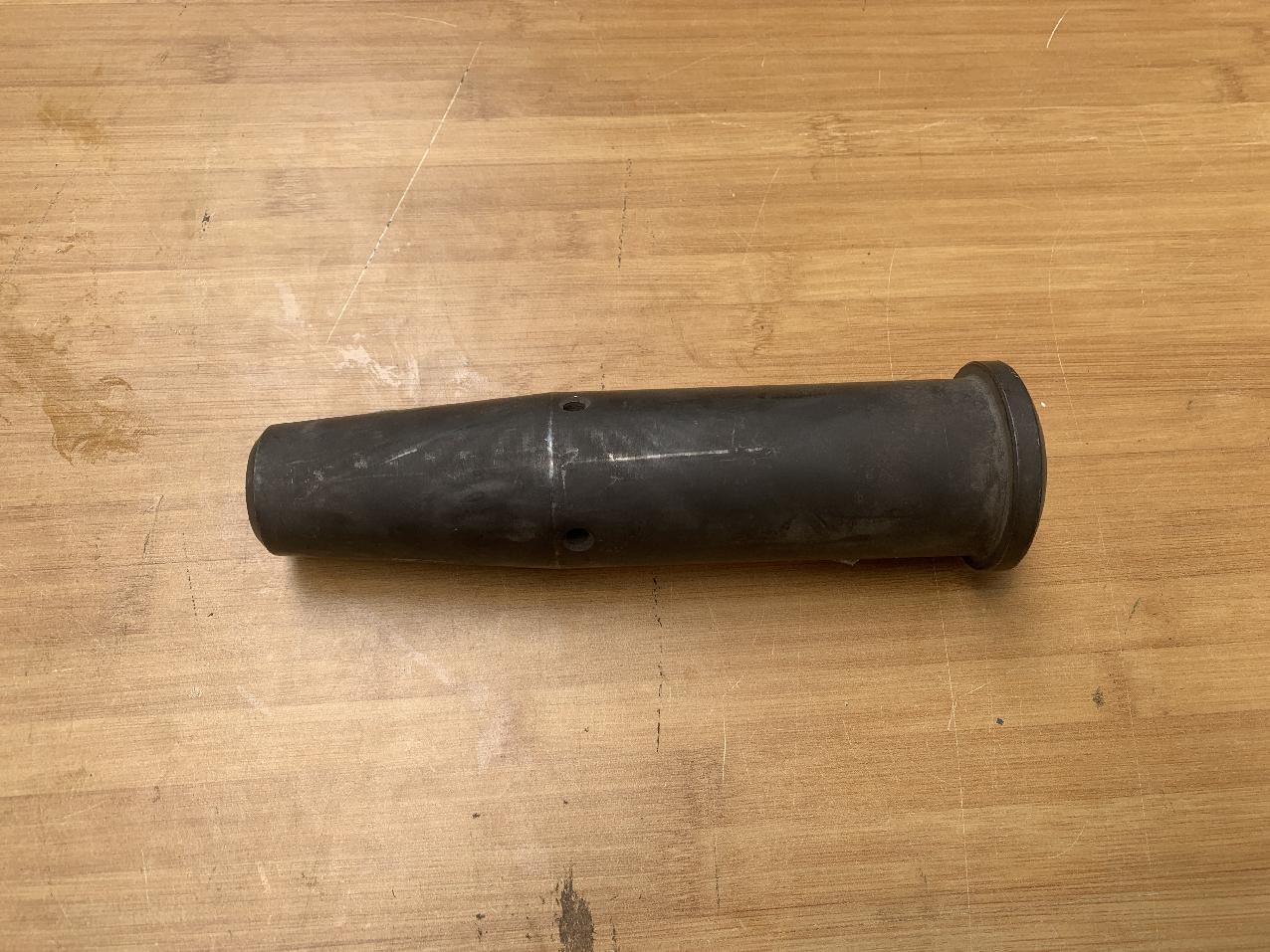

Grove 2256038 - PIN

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

2229661-ETL (Grove GMK 5160 )
3010179-ETL (Grove GMK 5180 )
3011370-ETL (Grove GMK 5180 )
3012761-ETL (Grove GMK 5180 )
3010179-ETL (Grove GMK 5200 )
3011370-ETL (Grove GMK 5200 )
3012761-ETL (Grove GMK 5200 )
3011370-ETL (Grove GMK 5220 )
3100426-ETL (Grove GMK 5220 )
3116443-ETL (Grove GMK 5220 )
3240078-ETL (Grove GMK 5250L )
3274845-ETL (Grove GMK 5250L )
3301250-ETL (Grove GMK 5250L )
3010179-ETL (Grove GMK 6220L )
3011370-ETL (Grove GMK 6220L )
3012761-ETL (Grove GMK 6220L )
3036843-ETL (Grove GMK 6300 )
GMK (Grove GMK )

Also known as:
2256038, 02256038, 002256038

Parts for Grove GMK 5160, Figure 2229661-ETL:
Part Number 2256038: PIN

Pos nr	Part number	Description	Weight in kg
1	1677153	CYLINDRICAL ROLLER BEARING	2.140
1	0028502	CIRCLIP	0.110
1	2229870	ROPE PULLEY 418, ASSEMBLY	7.100
1	2309368	ROPE PULLEY	7.340
3	2256038	PIN	1
4	1369374	PIN	0.16
5	1368076	COTTER PIN	0.001
6	1921999	RETAINING PIN	0.005
7	1067741	SCHALTER,HUBEND-	1.235
8	1930349	ACHSE	2.07
10	2256037	PIN
11	1921792	RETAINING PIN	0.075
12	0432171	AXIE GUARD	0.4
13	0437200	HEXAGON SCREW	0.07
14	0437547	SPRING WASHER	0.009
16	1685477	SPACER RING	0.05
17	0438180	SHIM RING	0.026
26	2256044	PIN
26	2256045	PIN
29	0438572	WASHER
30	0438578	COTER PIN
31	2257810	PIN
37	1575989	HEXAGON SCREW
37	0437545	SPRING WASHER	0.005
37	0437644	HEXAGON NUT	0.084
37	1368030	WASHER M10	0.005
37	1685245	HEXAGON SCREW
37	2303014	PLUG
37	2302415	GUIDE WEDGE
37	2302413	GUIDE CONSOLE
43	1925108	RETAINING PIN	0.020
49	3006752	SHEAVE HOLDER	27
53	1373830	HEADED BUSH
55	2256039	PIN
56	2229669	ADJUSTMENT FLAP
57	2302638	COUNTERWEIGHT
58	2229672	LOCK
60	0437755	WASHER
61	1683868	CO1TER PIN	0.005
62	1684390	PIN
63	1684379	ROLLER
68	3004749	WEDGE
68	2311152	WEDGE
