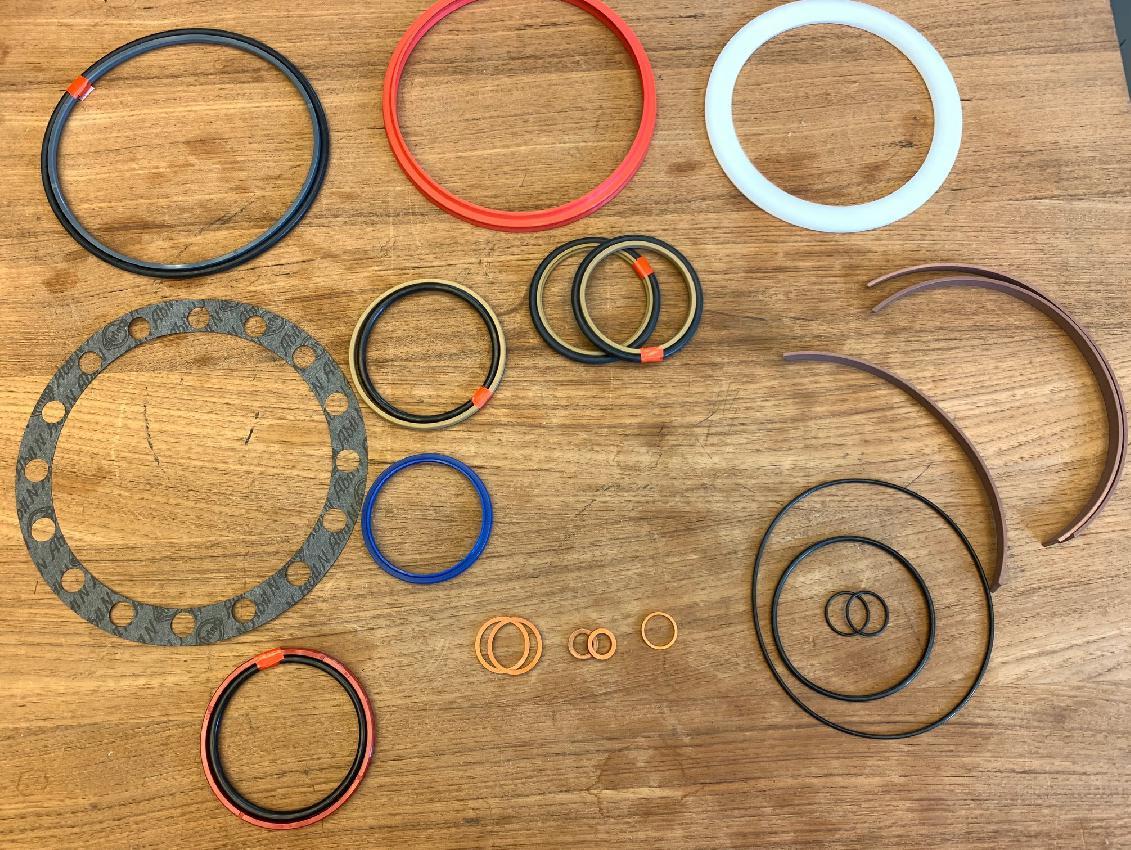

Grove 2257342 - SET OF SEALS I

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

2251293-ETL (Grove GMK 3050 SUSPENSION CYLINDER ASSEM8LY)
2251293-ETL (Grove GMK 5160 )
2251293-ETL (Grove GMK 5180 )
2251293-ETL (Grove GMK 6180 )
2251293-ETL (Krupp KMK 4070 )
2251293-ETL (Krupp KMK 5110 )
2251293-ETL (Krupp KMK 5120 )

Also known as:
2257342, 02257342, 002257342

Parts for Grove GMK 5160, Figure 2251293-ETL:
Part Number 2257342: SET OF SEALS I

Pos nr	Part number	Description	Weight in kg
1	2257342	SET OF SEALS I	0.900
2	2257343	SET OF SEALS II	0.900
3	2257790	THREADED PIN	0.17
4	1207873	WASHER	0.01
5	0439709	NUT
6	0103212	HEXAGON SCREW
7	0439657	WASHER
8	1929219	HEXAGON SOCKET HEAD CAP SCREW	0.02
9	2254541	COVER
31	2287807	OUTER PIPE
32	2287808	GUIDE PIPE	51
33	2314799	CYLINDER	15.6
34	2287809	PISTON ROD	5.32
35	2314801	GUIDE BUSH	1.1
36	2314802	CUP WASHER	0.13
37	2314803	SPACER BUSH	0.09
39	0107879	SCREW PLUG	0.005
40	2314798	SCREW PLUG
41	1371001	SCREW PLUG
42	3006280	AIR BLEED SCREW
43	1373728	BALL
44	1929053	PROTECTION CAP	0.005
45	1373763	SEALING RING
46	2314800	HEXAGON SOCKET HEAD CAP SCREW
47	2316322	SCREW PLUG

* Selected parts are automatically added to your RFQ list *
